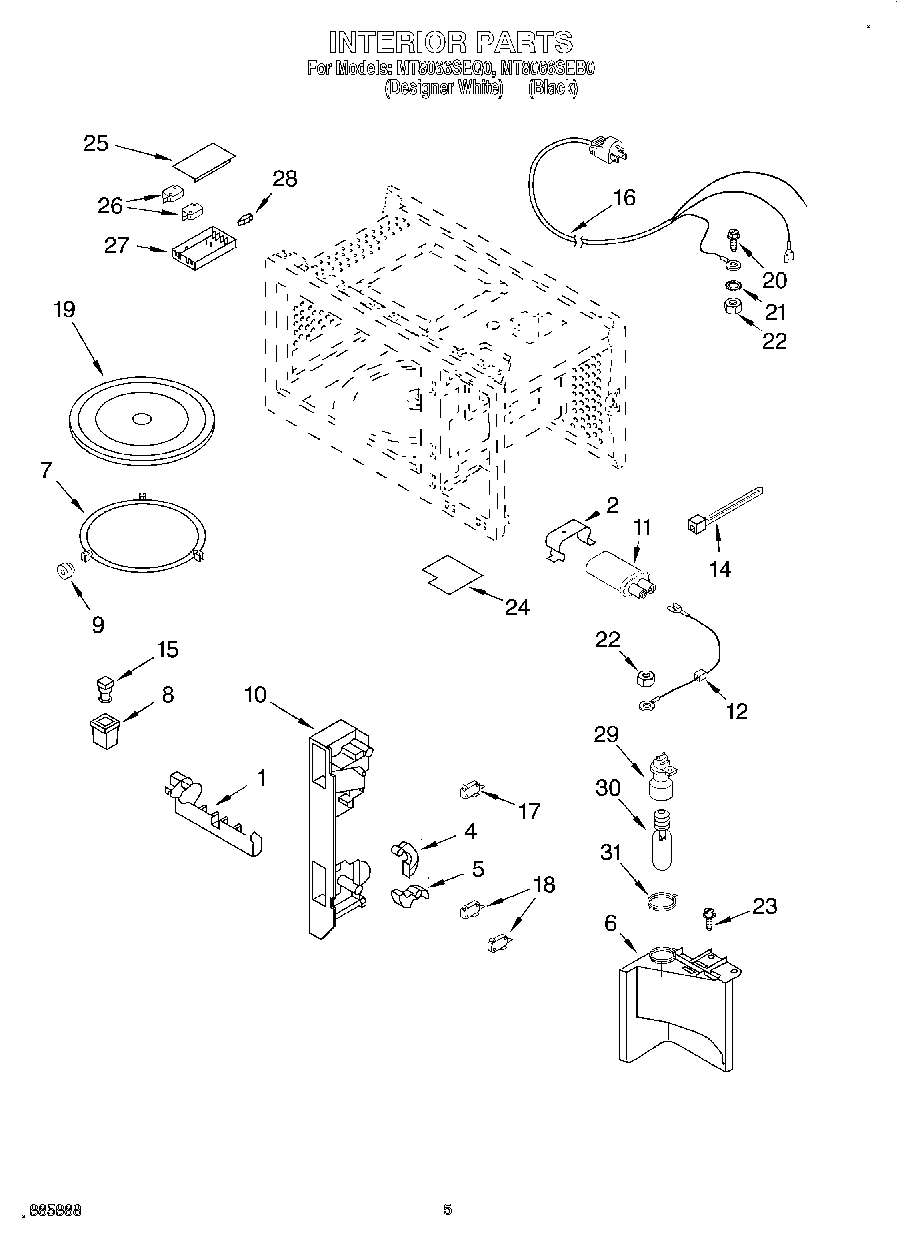

| 1 | Lever, Rotating |
| 2 | Bracket, Capacitor |
| 4 | Button, Rotating |
| 5 | Button, Rotating |
| 6 | Guide, Air |
| 7 | Turntable Ring |
| 8 | Cap |
| 9 | Wheel |
| 10 | Support, Interlock |
| 11 | 8206562 Whirlpool Microwave Capacitor MG |
| 12 | Diode |
| 14 | Cable Tie |
| 15 | Shaft, Turntable |
| 16 | Power Cord |
| 17 | Switch, Monitor |
| 18 | Switch, Primary |
| 19 | Tray, Glass |
| 20 | Screw |
| 21 | Screw |
| 22 | Nut |
| 23 | Screw |
| 24 | Paper, Isolating |
| 25 | Lid |
| 26 | W10211972 Whirlpool Microwave Switch |
| 27 | Cover |
| 28 | Rocker |
| 29 | Holder, Lamp |
| 30 | Lamp |
| 31 | Cushion, Lamp |
