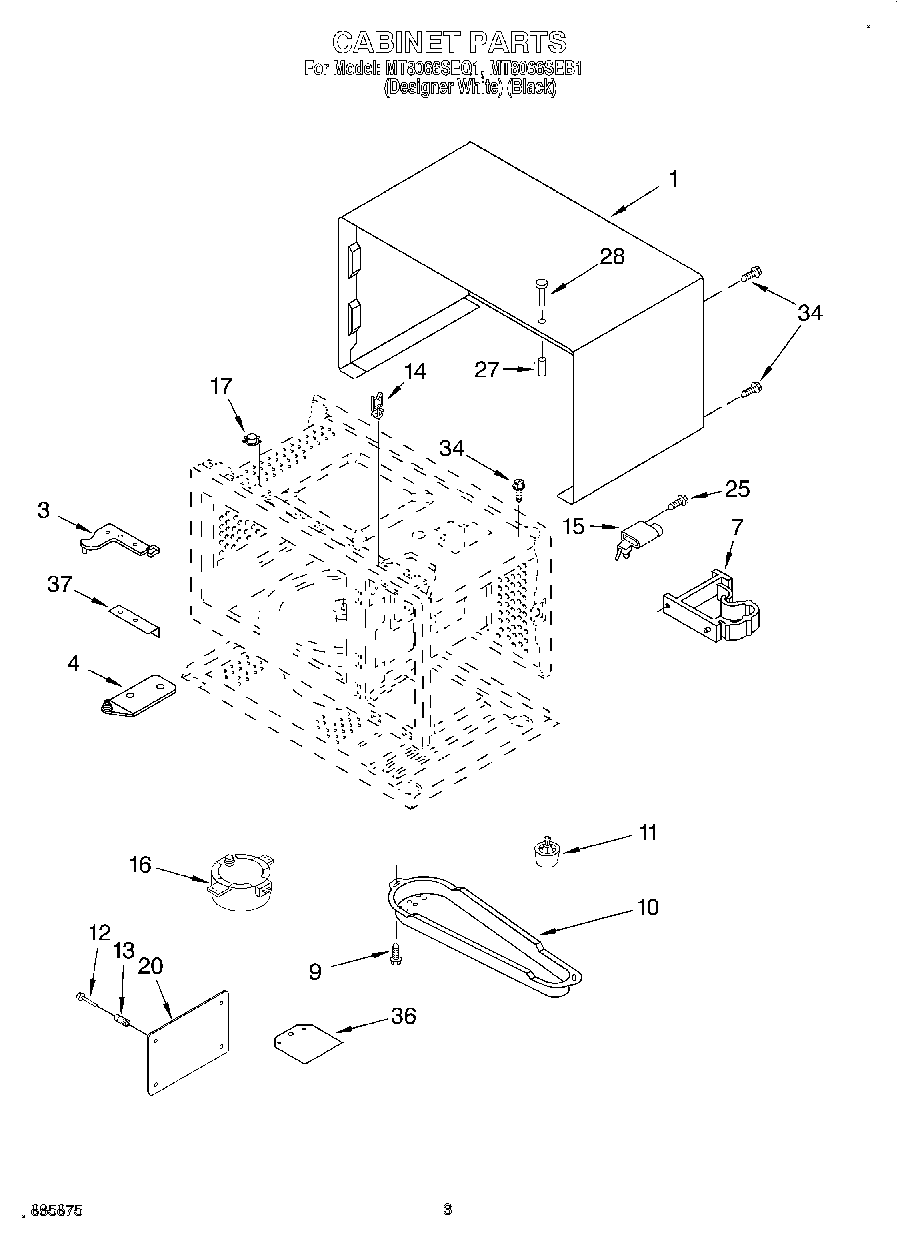

MT8066SEB1 03 – CABINET, LITERATUREadmin2025-04-26T08:44:05+00:00MT8066SEB1 03 – CABINET, LITERATURE
Products
| Position | Product |
|---|
| Tech Sheet |
| Cooking Guide Label |
| Use & Care Guide |
| 1 | Cover, Oven (Black) |
| 1 | Cover, Oven (White) |
| 3 | Hinge, Upper |
| 4 | Hinge, Lower |
| 7 | Spacer, Back |
| 9 | W11380570 Whirlpool Microwave Screw |
| 10 | Cover, Bottom |
| 11 | Foot, Oven |
| 12 | Nail, Plastic |
| 13 | Bushing, Nail |
| 14 | Clip, Wire |
| 15 | Strain Relief |
| 16 | Motor, Turntable |
| 17 | Thermostat |
| 20 | Cover |
| 25 | Screw |
| 27 | Bushing, Rivet |
| 28 | Plastic, Nail |
| 28 | Rivet, Plastic (Black) |
| 34 | Screw |
| 36 | Plate, Rubber |
| 37 | Plate, Spacer |
