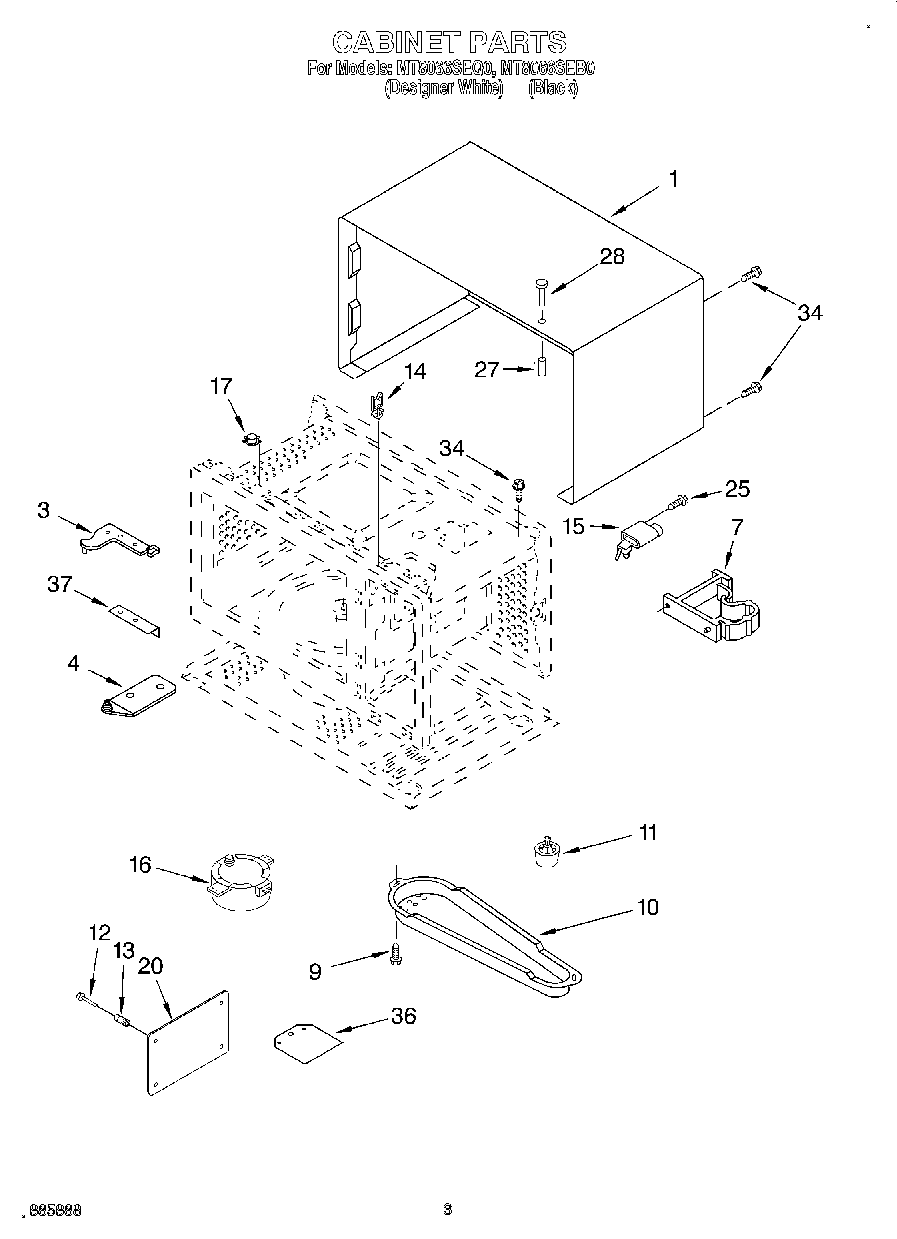

MT8066SEQ0 03 – CABINET, LITERATURE

MT8066SEQ0 03 – CABINET, LITERATURE

Written by

in

MT8066SEQ0 03 – CABINET, LITERATURE

Products

PositionProduct
Tech Sheet
Use & Care Guide
Cooking Guide Label
1Cover, Oven (Black)
1Cover, Oven (White)
3Hinge, Upper
4Hinge, Lower
7Spacer, Back
9W11380570 Whirlpool Microwave Screw
10Cover, Bottom
11Foot, Oven
12Nail, Plastic
13Bushing, Nail
14Clip, Wire
15Strain Relief
16Motor, Turntable
17Thermostat
20Cover
25Screw
27Bushing, Rivet
28Rivet, Plastic (White)
28Rivet, Plastic (Black)
34Screw
36Plate, Rubber
37Plate, Spacer
