MT8068SEB0 05 – MAGNETRON AND AIR FLOW – Aparts

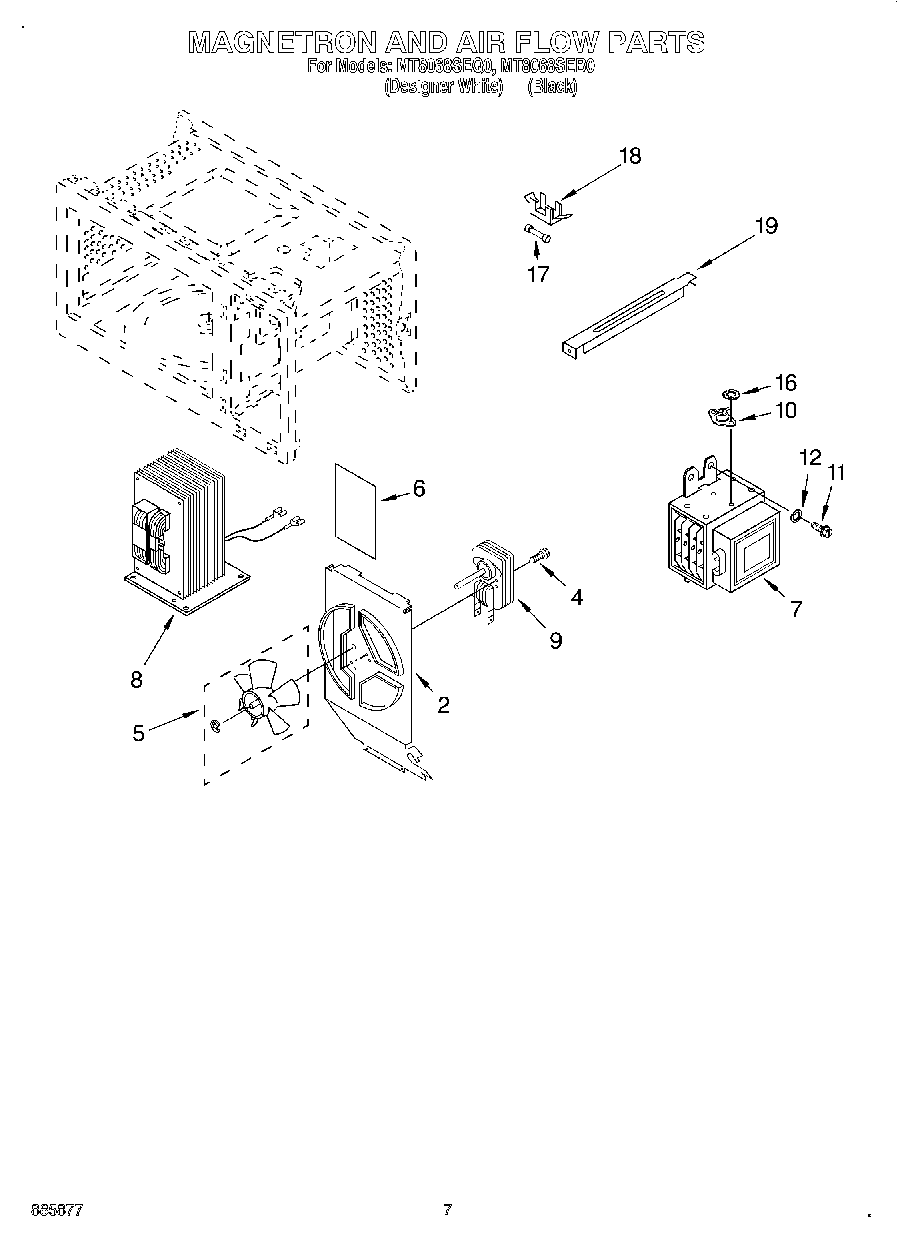

MT8068SEB0 05 – MAGNETRON AND AIR FLOW

Products

Position	Product
2	Support, Fan Motor
4	Screw
5	Blade, Fan (Includes Nut)
6	Paper, Isolating
7	Magnetron
8	Transformer
9	Motor, Fan
10	Thermostat
11	8169480 Whirlpool Microwave Screw
12	WP8533914 Whirlpool Lock
16	Washer
17	FUSE-THRML
18	Case, Fuse
19	Support
