MT8078XEB0 05 – MAGNETRON AND AIR FLOW – Aparts

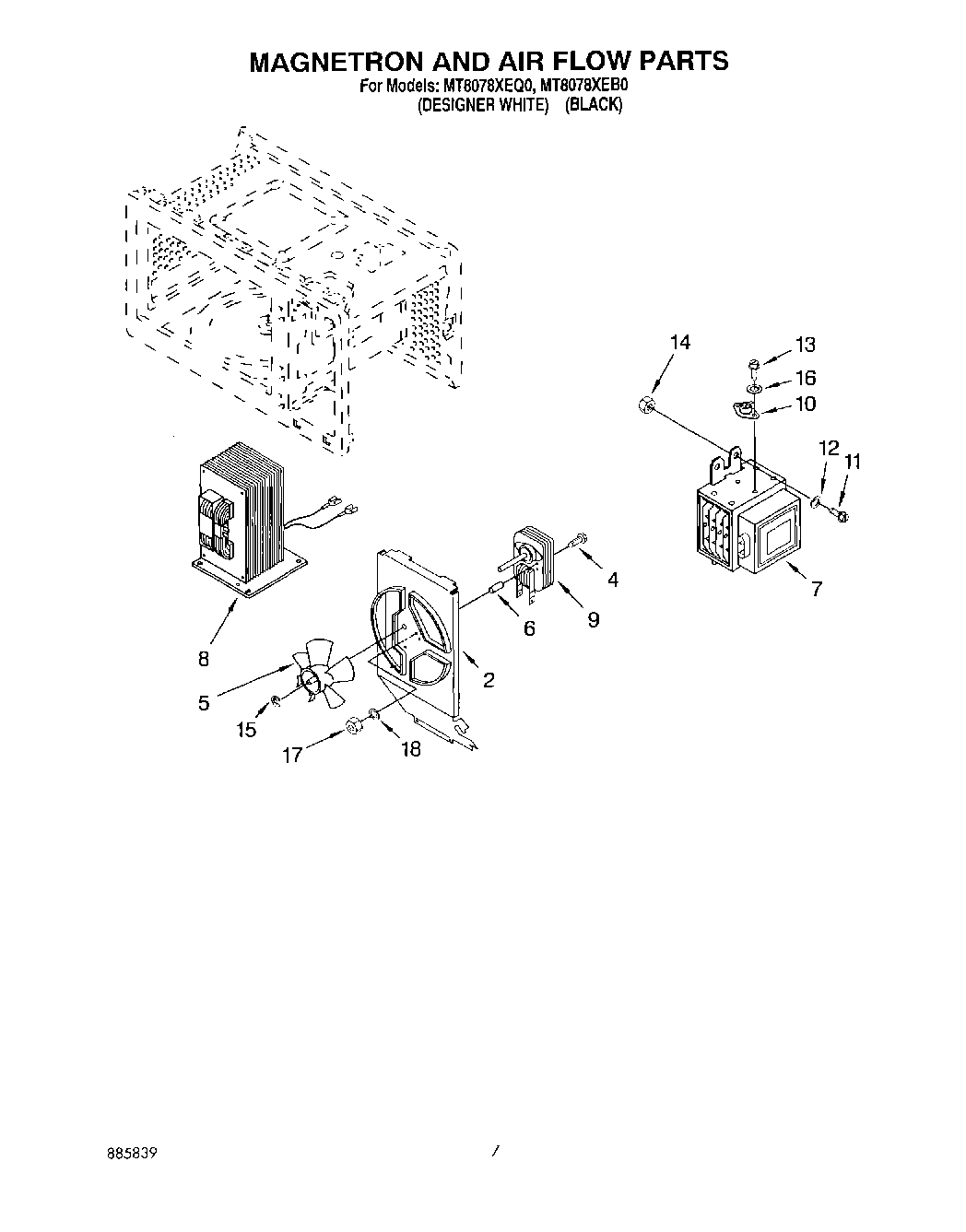

MT8078XEB0 05 – MAGNETRON AND AIR FLOW

Products

Position	Product
2	Support, Fan Motor
4	Screw
5	Blade, Fan
6	Sleeve
7	Magnetron
8	Transformer
9	Motor, Fan
10	Thermostat
11	8169480 Whirlpool Microwave Screw
12	WP8533914 Whirlpool Lock
13	Screw
14	Nut
15	E-Ring
16	Washer
17	Nut
18	Washer
