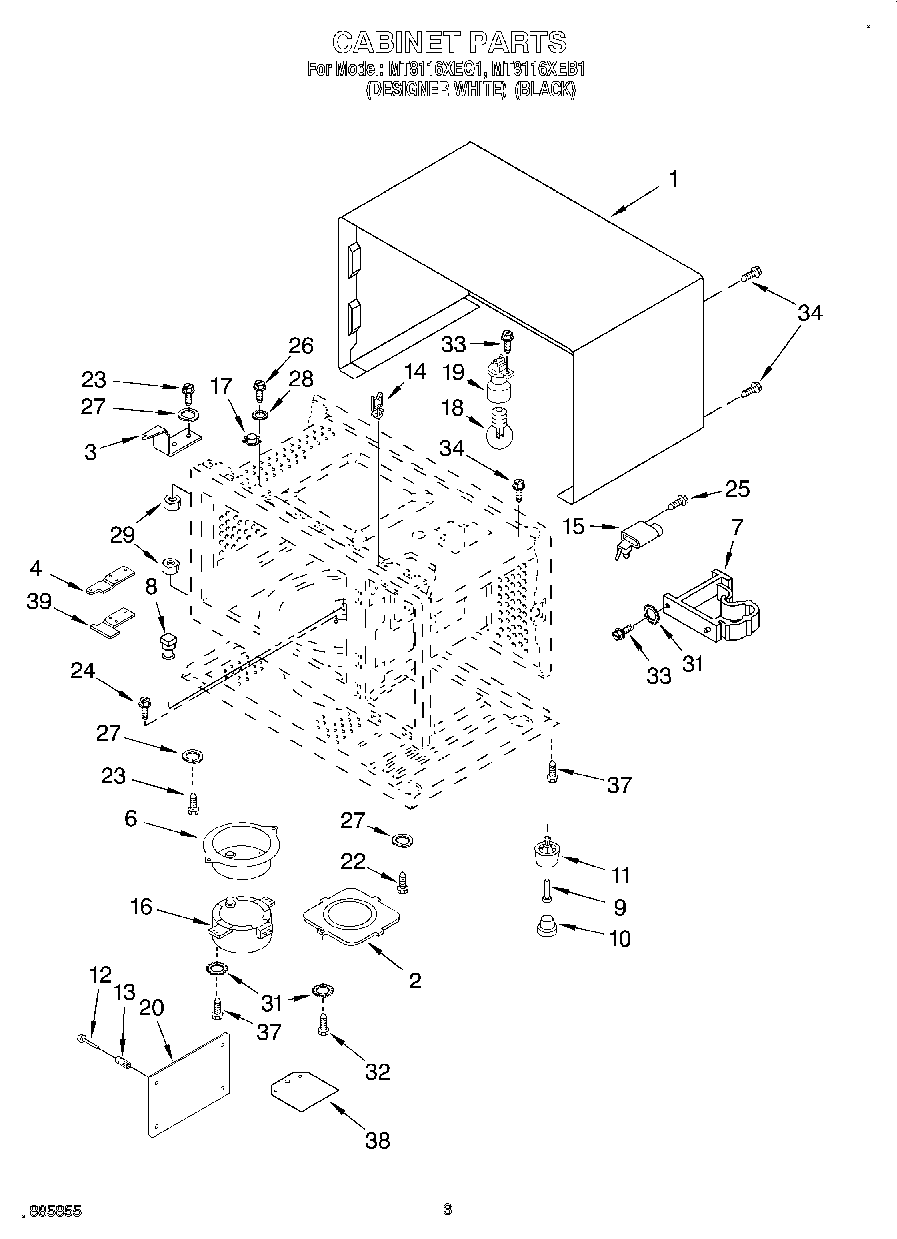

MT8116XEQ1 03 – CABINET, LITERATUREadmin2025-04-26T08:44:11+00:00MT8116XEQ1 03 – CABINET, LITERATURE
Products
| Position | Product |
|---|
| Use & Care Guide |
| Cooking Guide Label |
| Tech Sheet |
| 1 | Cover, Oven (White Model) |
| 1 | Cover, Oven (Black Model) |
| 2 | Cover, Motor |
| 3 | Hinge, Lower |
| 4 | Hinge, Upper |
| 6 | Motor Case |
| 7 | Spacer, Back |
| 8 | Shaft, Turntable |
| 9 | Nail, Foot |
| 10 | Pan Foot |
| 11 | Oven Foot |
| 12 | Nail, Plastic |
| 13 | Bushing, Nail |
| 14 | Clip, Wire |
| 15 | Strain Relief |
| 16 | Motor, Turntable |
| 17 | Thermostat |
| 18 | Lamp |
| 19 | Holder, Lamp |
| 20 | Cover |
| 22 | 8169480 Whirlpool Microwave Screw |
| 23 | Screw |
| 24 | Screw |
| 25 | Screw |
| 26 | Screw |
| 27 | WP8533914 Whirlpool Lock |
| 28 | Washer |
| 29 | Nut |
| 31 | Screw |
| 32 | Screw |
| 33 | Screw |
| 34 | Screw |
| 37 | Screw |
| 38 | Plate, Rubber |
| 39 | Plate, Spacer |
