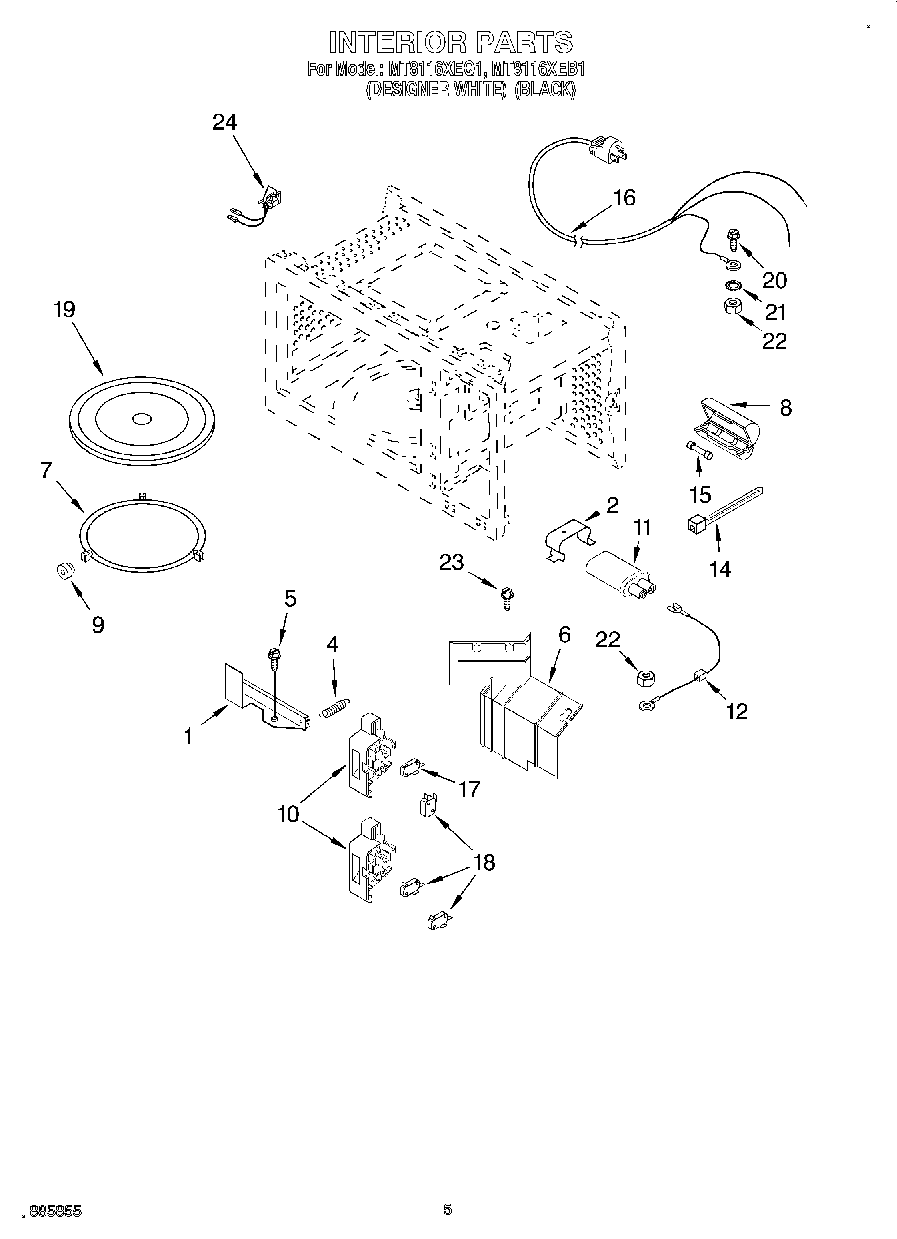

MT8116XEQ1 04 – INTERIOR
Products
| Position | Product |
|---|---|
| 1 | Lever |
| 2 | Bracket, Capacitor |
| 4 | Spring |
| 5 | Screw |
| 6 | Guide, Air |
| 7 | Turntable Ring |
| 8 | Case, Fuse |
| 9 | Wheel |
| 10 | Support, Interlock |
| 11 | Capacitor |
| 12 | Diode |
| 14 | Cable Tie |
| 15 | FUSE-THRML |
| 16 | Power Cord |
| 17 | Switch, Monitor |
| 18 | Switch, Primary |
| 19 | Tray, Glass |
| 20 | Screw |
| 21 | Screw |
| 22 | Nut |
| 23 | Screw |
| 24 | Rocker |
