MT8116XEQ2 02 – DOOR

MT8116XEQ2 02 – DOOR

Written by

in

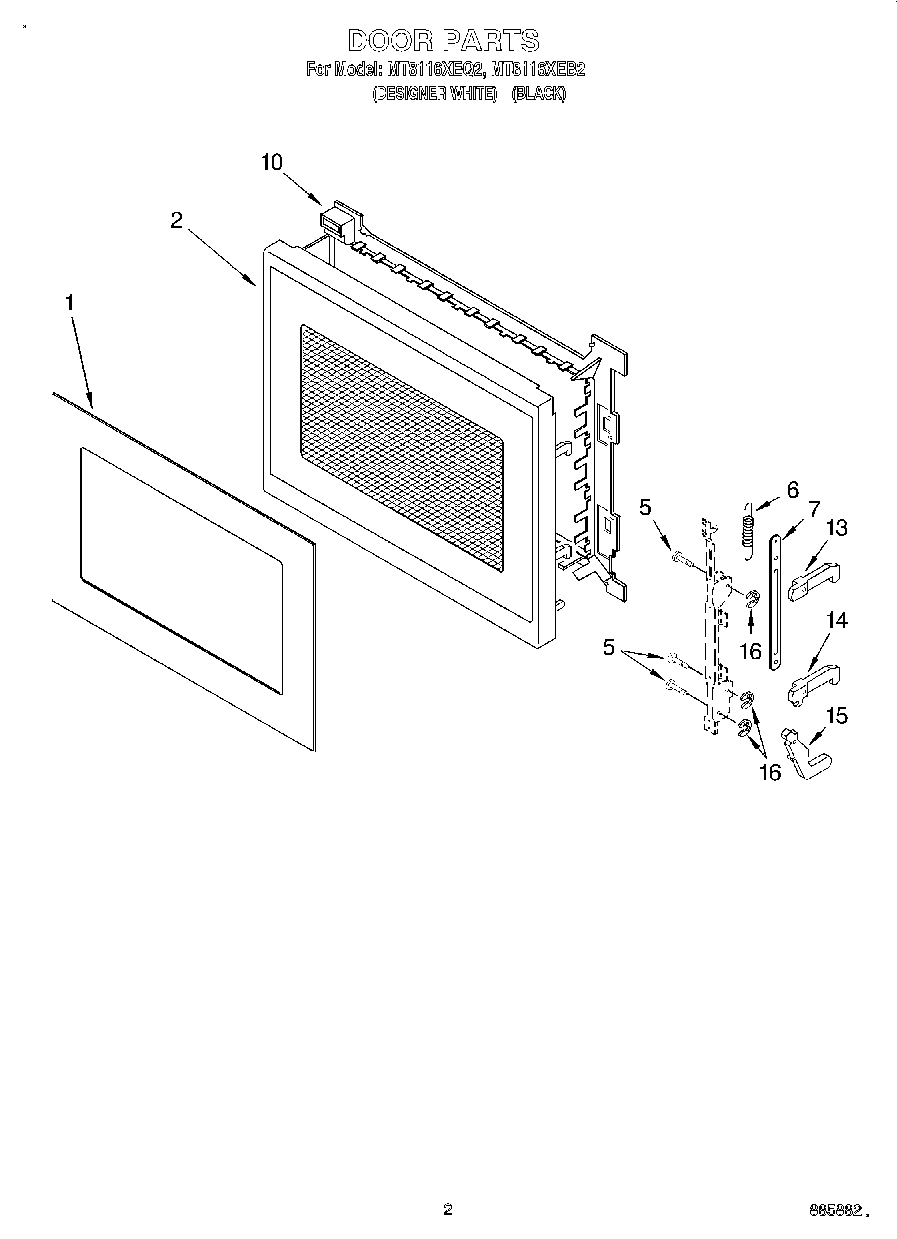

MT8116XEQ2 02 – DOOR

Products

Position	Product
1	Plate, Front (Black Model)
1	Plate, Front (White Model)
2	Door Assembly (White Model)
2	Door Assembly (Black Model)
5	Latch Pivot
6	Spring
7	Hook Connector
10	Frame, Door (Black Model)
10	Frame, Door (White Model)
13	Latch, Upper
14	Latch, Lower
15	Pin, Door
16	E-Ring
