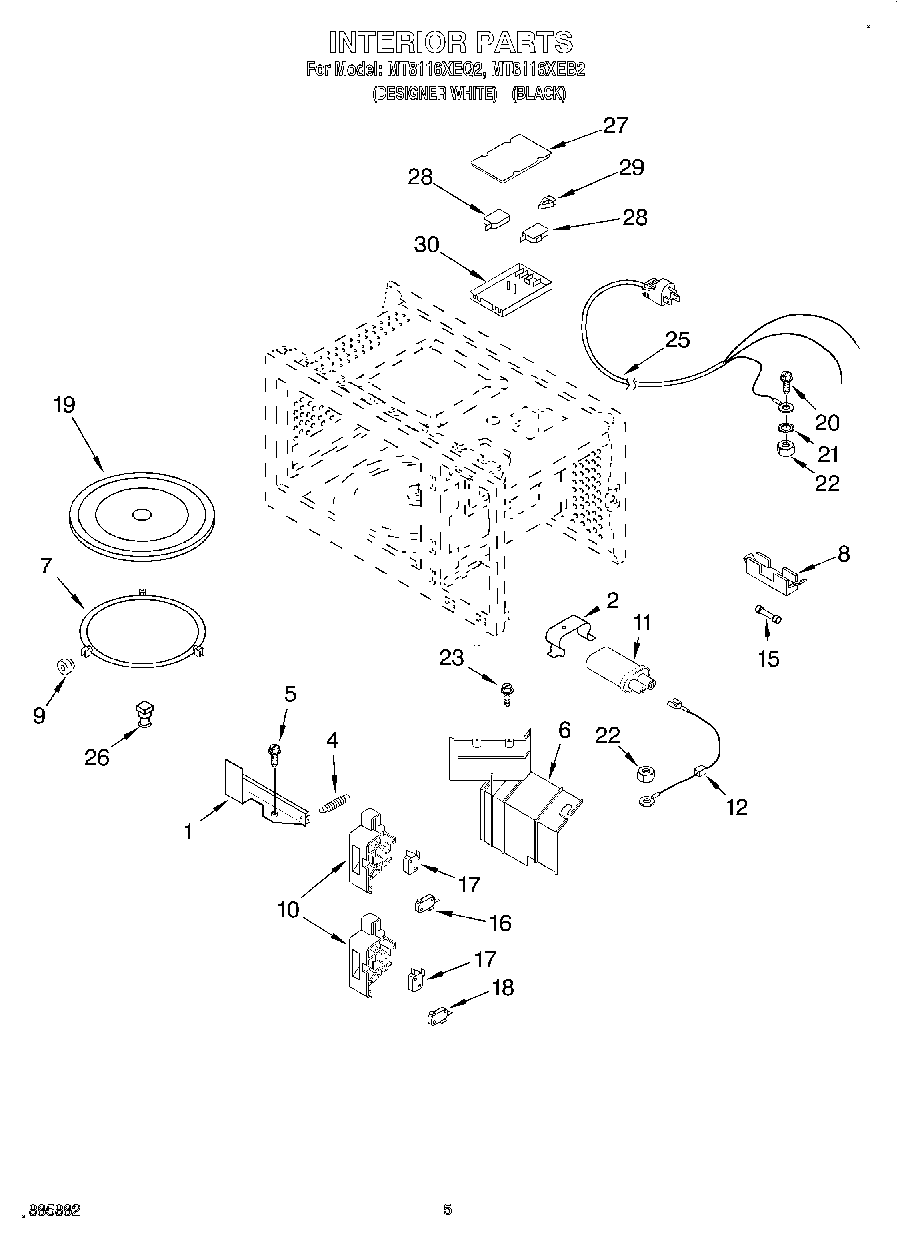

MT8116XEQ2 04 – INTERIOR

Products

Position	Product
1	Lever
2	Bracket, Capacitor
4	Spring
5	Screw
6	Guide, Air
7	Turntable Ring
8	Case, Fuse
9	Wheel
10	Support, Interlock
11	Capacitor
12	Diode
15	FUSE-THRML
16	W10211972 Whirlpool Microwave Switch
17	Switch, Monitor
18	Switch, Primary
19	Tray, Glass
20	Screw
21	Screw
22	Nut
23	Screw
25	Power Cord
26	Cap
26	Shaft, Turntable
27	Lid
29	Rocker
30	Cover
