MT8118XEB1 04 – INTERIOR – Aparts

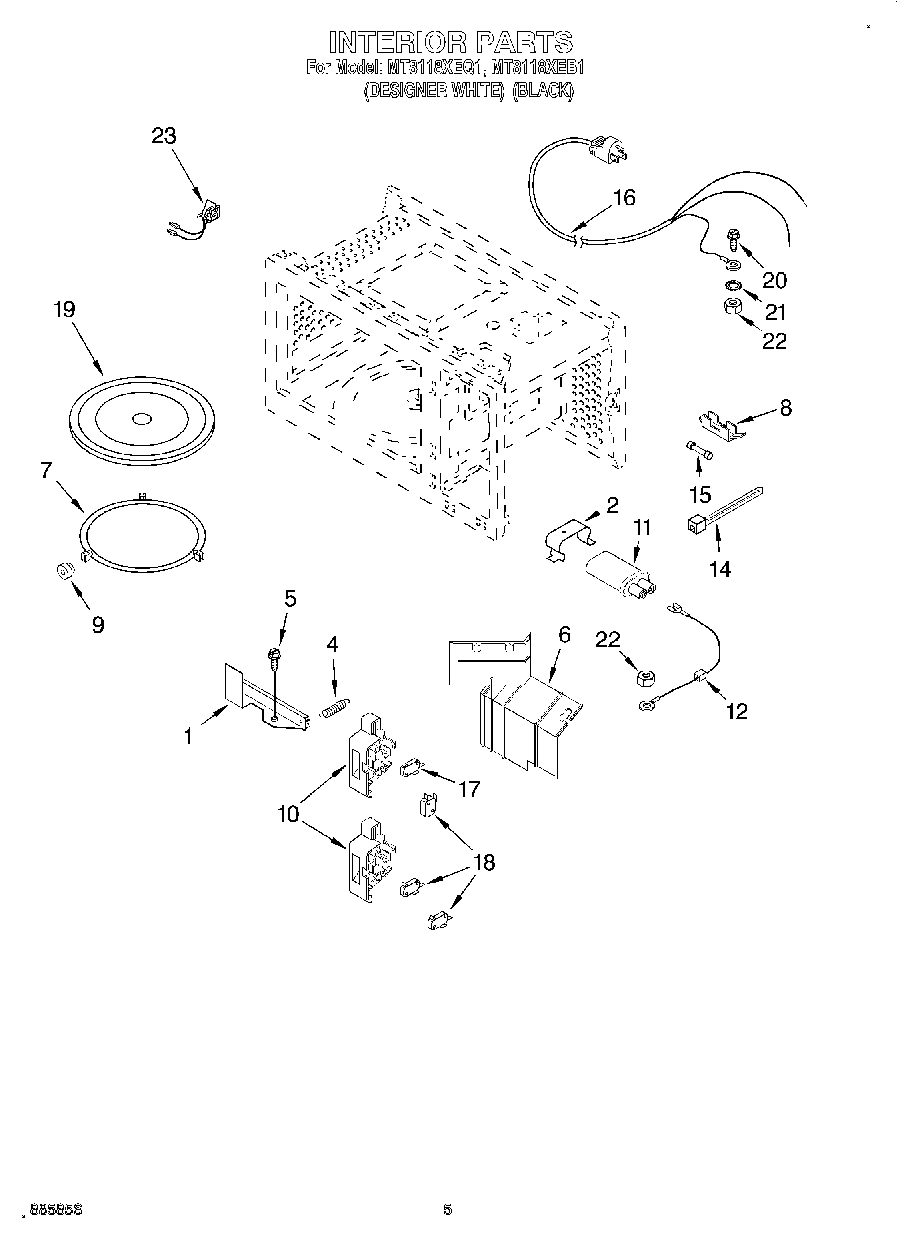

MT8118XEB1 04 – INTERIOR

Products

Position	Product
1	Lever
2	Bracket, Capacitor
4	Spring
5	Screw
6	Guide, Air
7	Turntable Ring
8	Case, Fuse
9	Wheel
10	Support, Interlock
11	Capacitor
12	Diode
14	Cable Tie
15	FUSE-THRML
16	Power Cord
17	Switch, Monitor
18	Switch, Primary
19	Tray, Glass
20	Screw
21	Screw
22	Nut
23	Switch, UL
