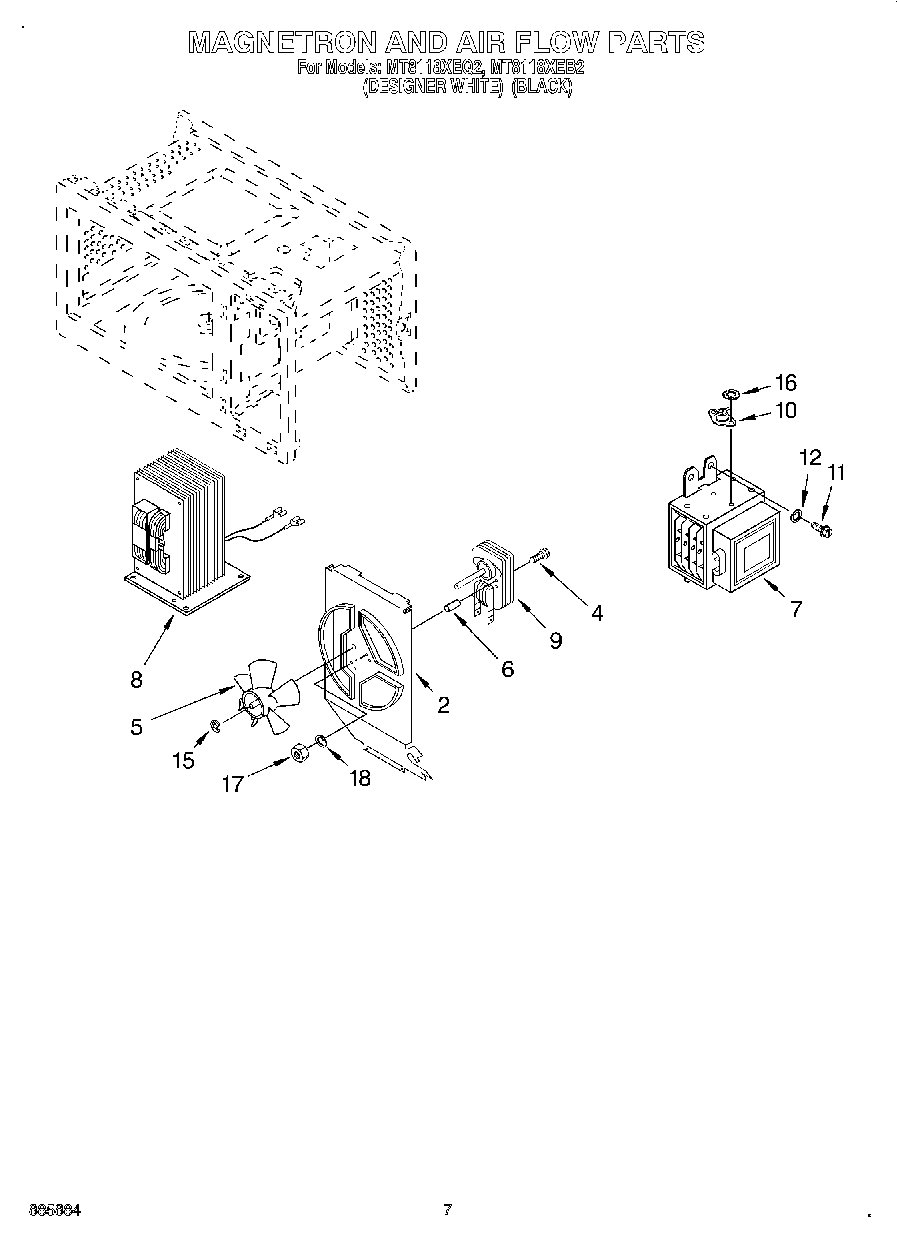

MT8118XEQ2 05 – MAGNETRON AND AIRFLOW

Products

Position	Product
2	Support, Fan Motor
4	Screw
5	Blade, Fan
6	Sleeve
7	Magnetron
8	Transformer
9	Motor, Fan
10	Thermostat Open temp: 329~ Fahrenheit Close temp: -31~ Fahrenheit
11	8169480 Whirlpool Microwave Screw
12	WP8533914 Whirlpool Lock
15	E-Ring
16	Washer
17	Nut
18	Washer
