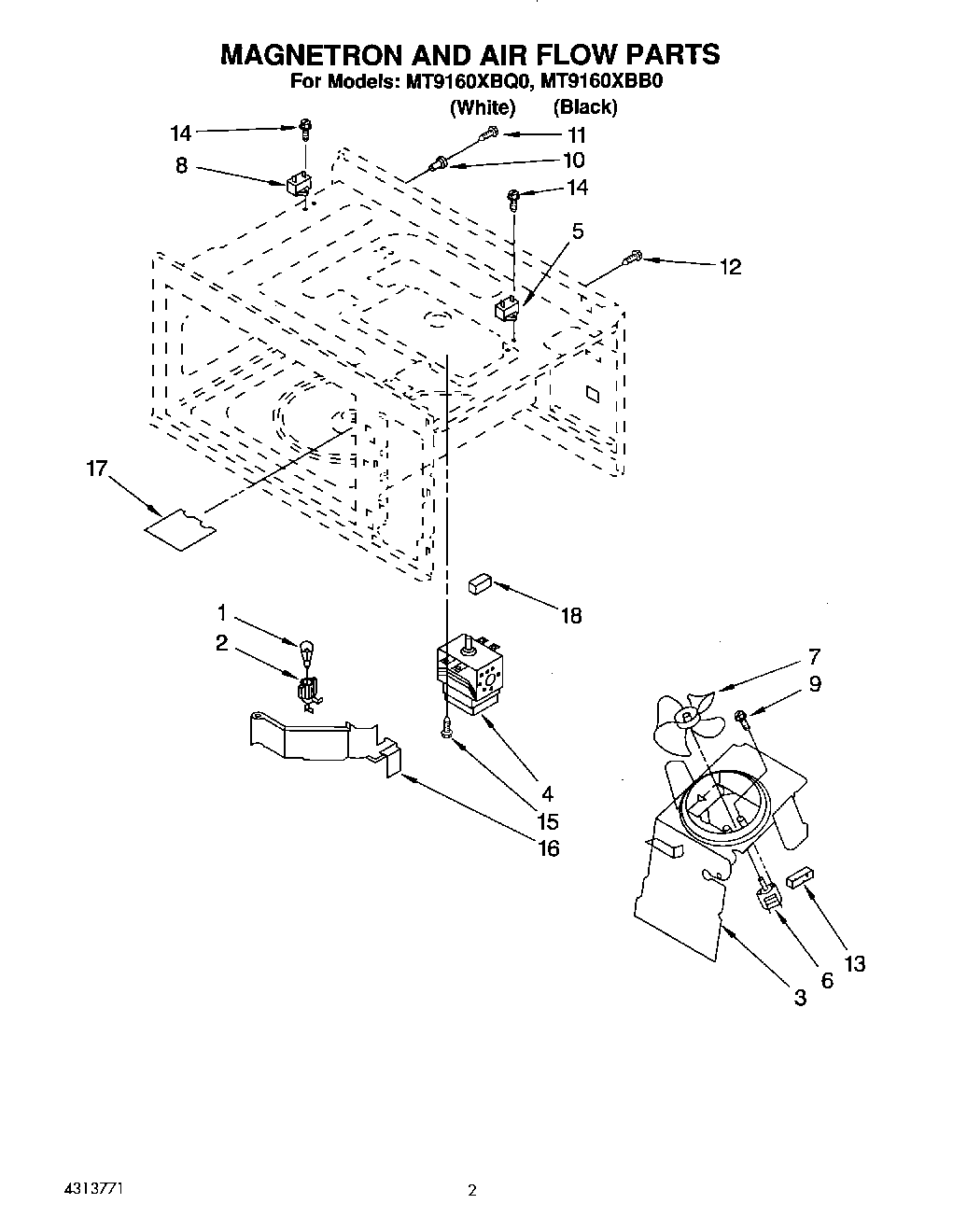

MT9160XBQ0 02 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Lamp, Oven
2Socket, Lamp
3Duct, Fan
4Magnetron
5Fuse, Magnetron Temp
6Motor, Fan
7Blade, Fan
8Fuse, Temp
9Screw
10Spacer
11Screw
12Screw
13Cushion, Motor
14Screw
15Screw
16Duct, Magnetron
17Cover, Wave Guide
18Shield, Magnetron
