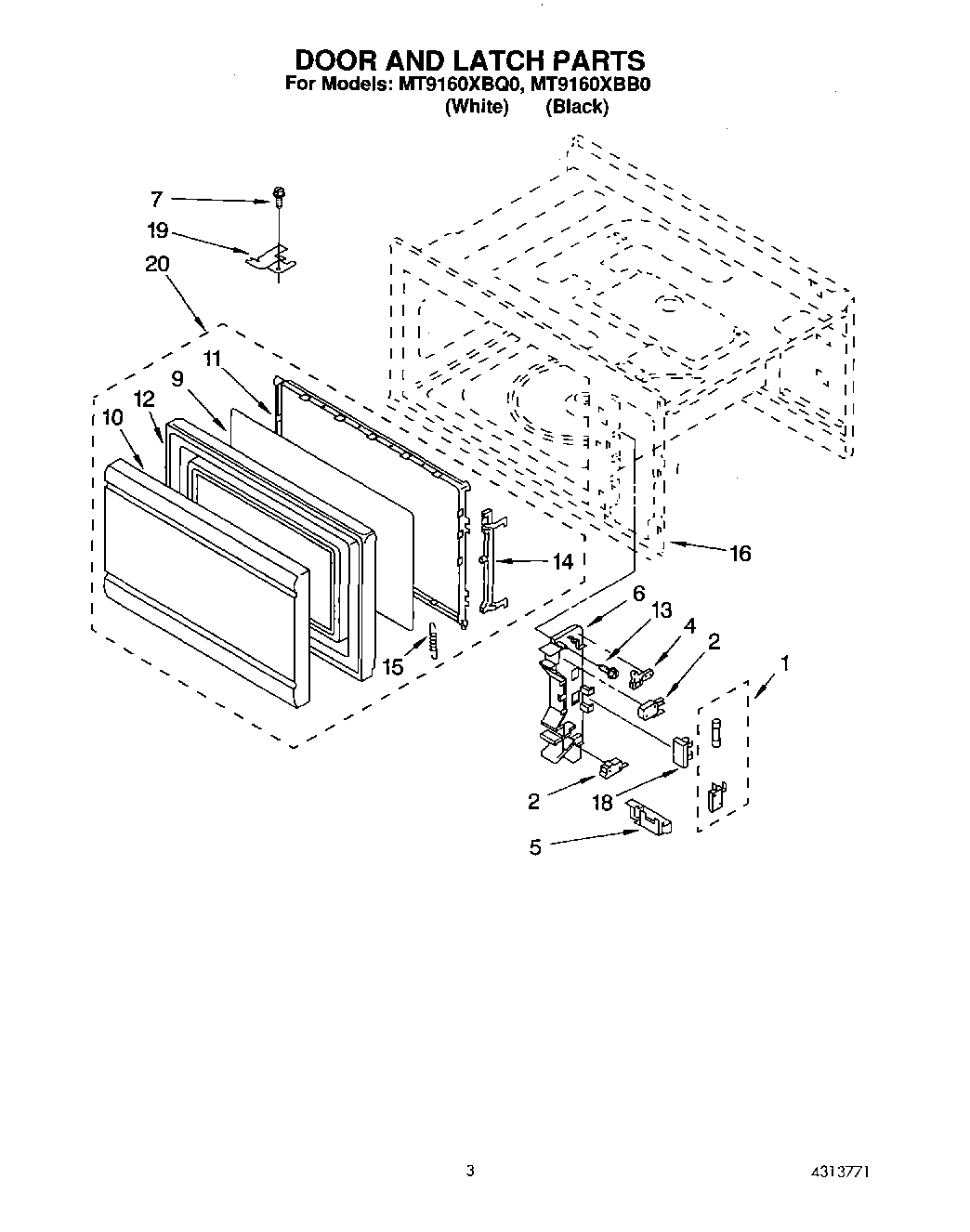

MT9160XBQ0 03 – DOOR AND LATCH

Products

Position	Product
1	Switch and Fuse Assy.
2	4392027 Whirlpool Microwave Primary Switch
4	Hook, Lever
5	Latch Lever
6	Latch Hook
9	Seal, Door (Not a Serviceable Part)
10	Assembly, Door Screen (Black)
10	Assembly, Door Screen (White)
11	Choke, Cover
11	Choke Cover (White Model)
12	Frame, Door (Not Serviceable)
13	SCREW
14	Latch, Door (White Model)
14	Latch, Door
15	Spring, Latch
16	Cavity, Oven (Not a Serviceable Part)
18	Holder, Fuse
19	Hinge, Upper
20	Door, Complete (White)
20	Door, Complete (Black)
