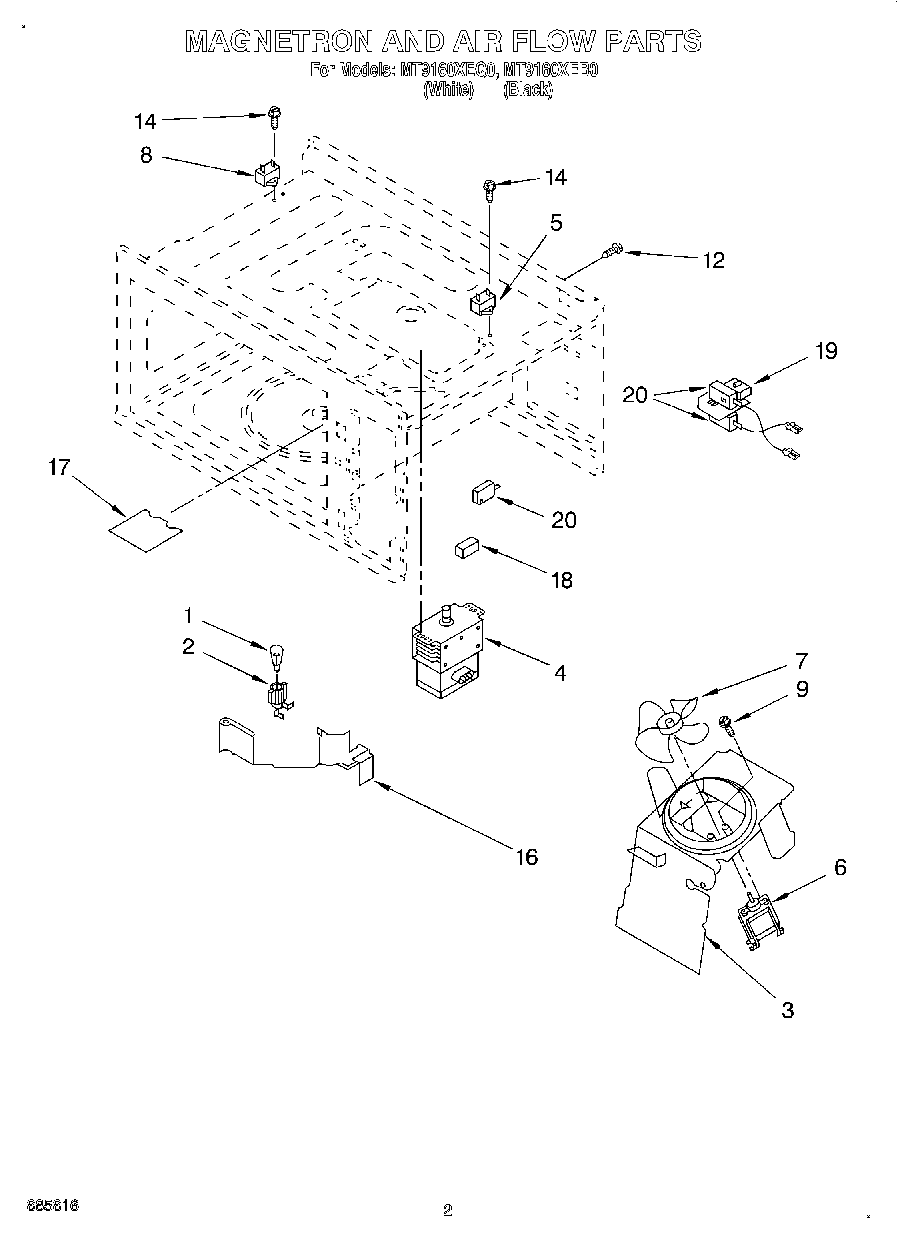

MT9160XEB0 02 – MAGNETRON AND AIR FLOW

Written by

Products

Position	Product
1	Lamp, Oven
2	Socket, Lamp
3	Duct, Fan
4	Magnetron
5	Fuse, Magnetron Temp
6	Motor, Fan
7	Blade, Fan
8	Fuse, Temperature
9	Screw
12	Screw
14	Screw
16	Duct, Magnetron
17	Cover, Wave Guide
18	Shield, Magnetron
19	Adapter, Service
20	4392027 Whirlpool Microwave Primary Switch
