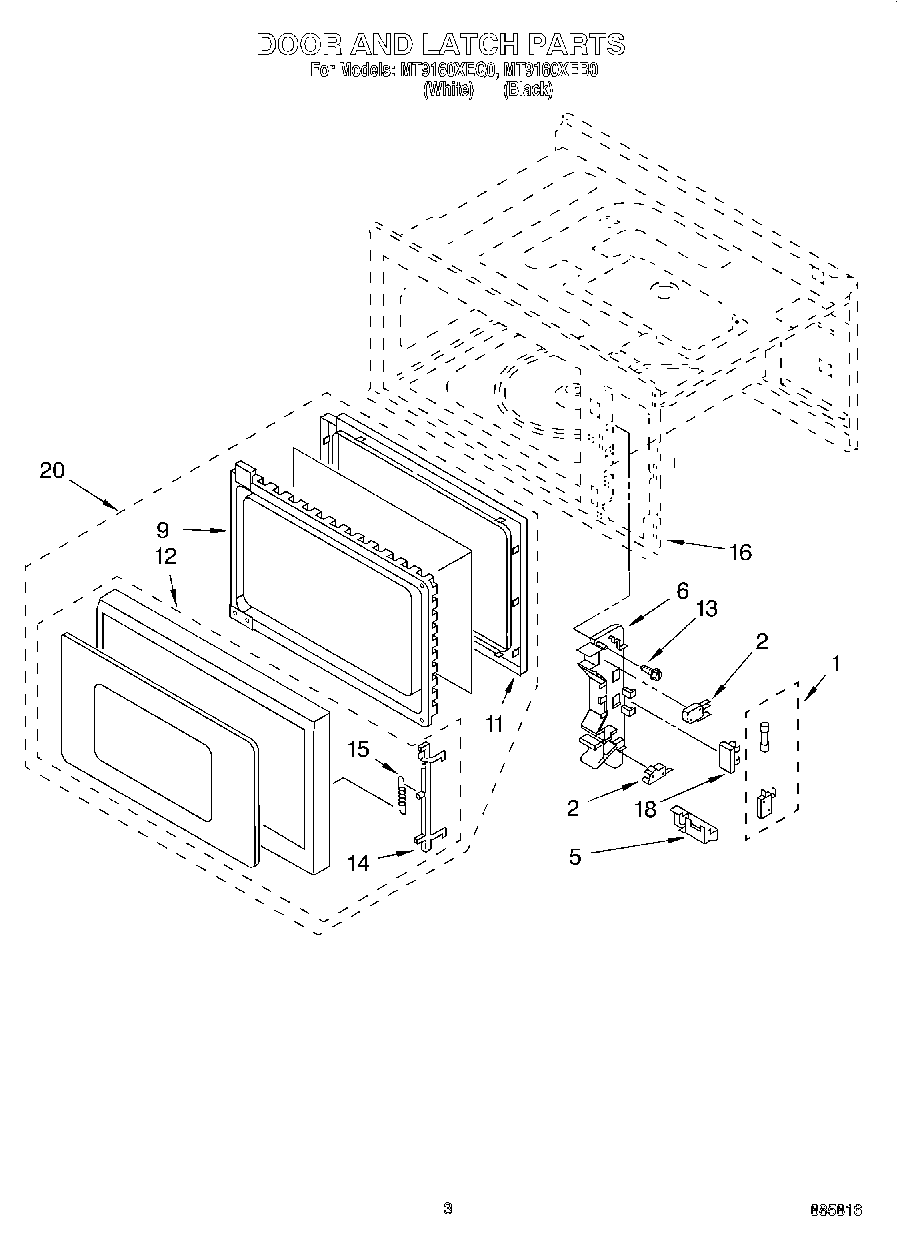

MT9160XEB0 03 – DOOR AND LATCH

Products

Position	Product
1	4313105 Whirlpool Microwave Switch
2	4392027 Whirlpool Microwave Primary Switch
5	Latch Lever
6	Latch Hook
9	Door Panel
9	Screw
11	Choke Cover (Black)
11	Choke Cover (White Model)
12	Frame, Door (Black Model)
12	Frame, Door (White Model)
13	SCREW
14	Latch, Door
14	Latch, Door (White Model)
15	Spring, Latch
16	Cavity, Oven (Not a Serviceable Part)
18	Holder, Fuse
20	Door, Complete (Black)
20	Door, Complete (White)
