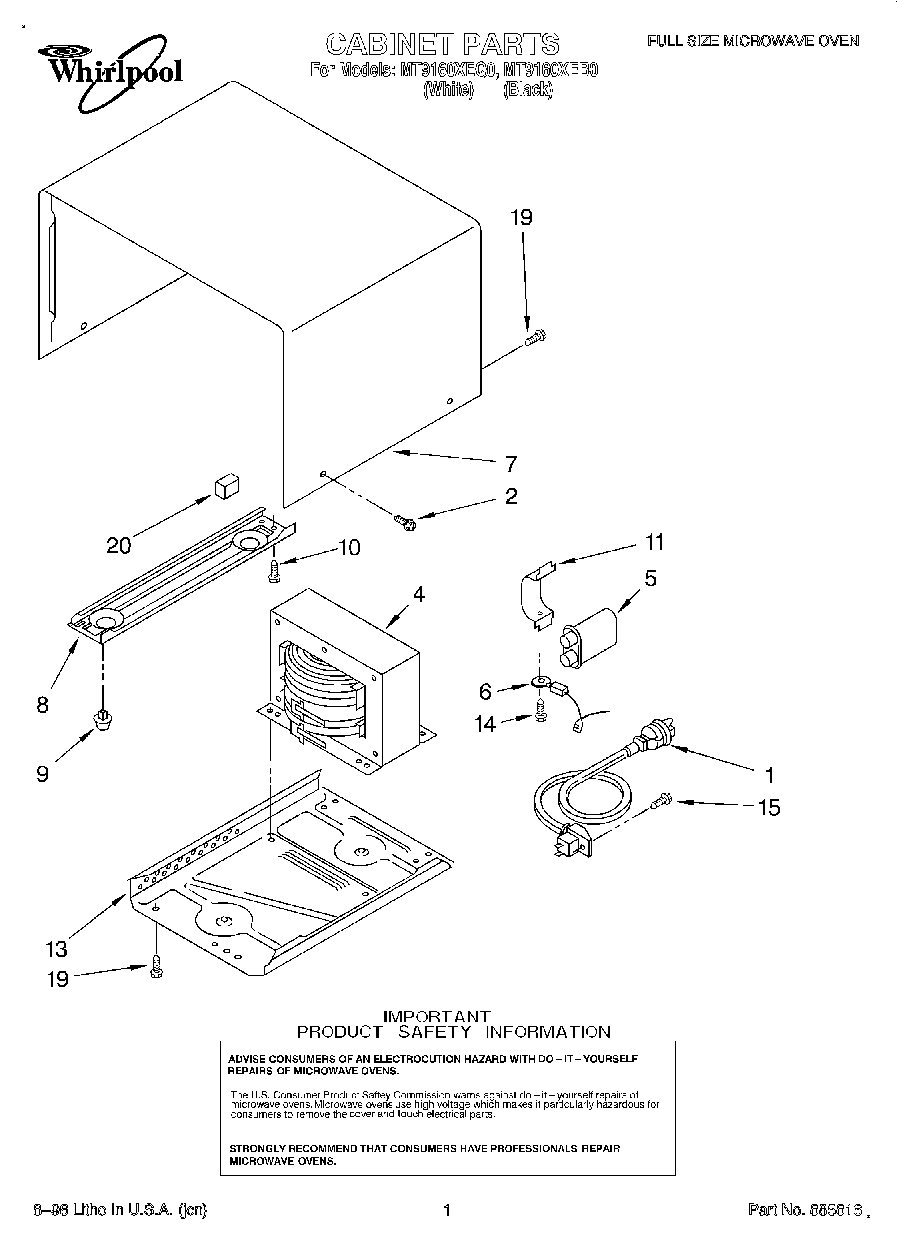

MT9160XEQ0 01 – CABINET

MT9160XEQ0 01 – CABINET

Written by

in

MT9160XEQ0 01 – CABINET

Products

Position	Product
1	Power Cord
4	Transformer
5	Capacitor
6	Rectifier
7	Outer Cabinet (White)
7	Outer Cabinet (Black)
8	Base Plate, Left Side
9	Foot
10	SCREW
11	Bracket, Capacitor
13	Base Plate, Right Side
14	Screw
15	Screw
19	Screw
20	Shield, Wire (2)
