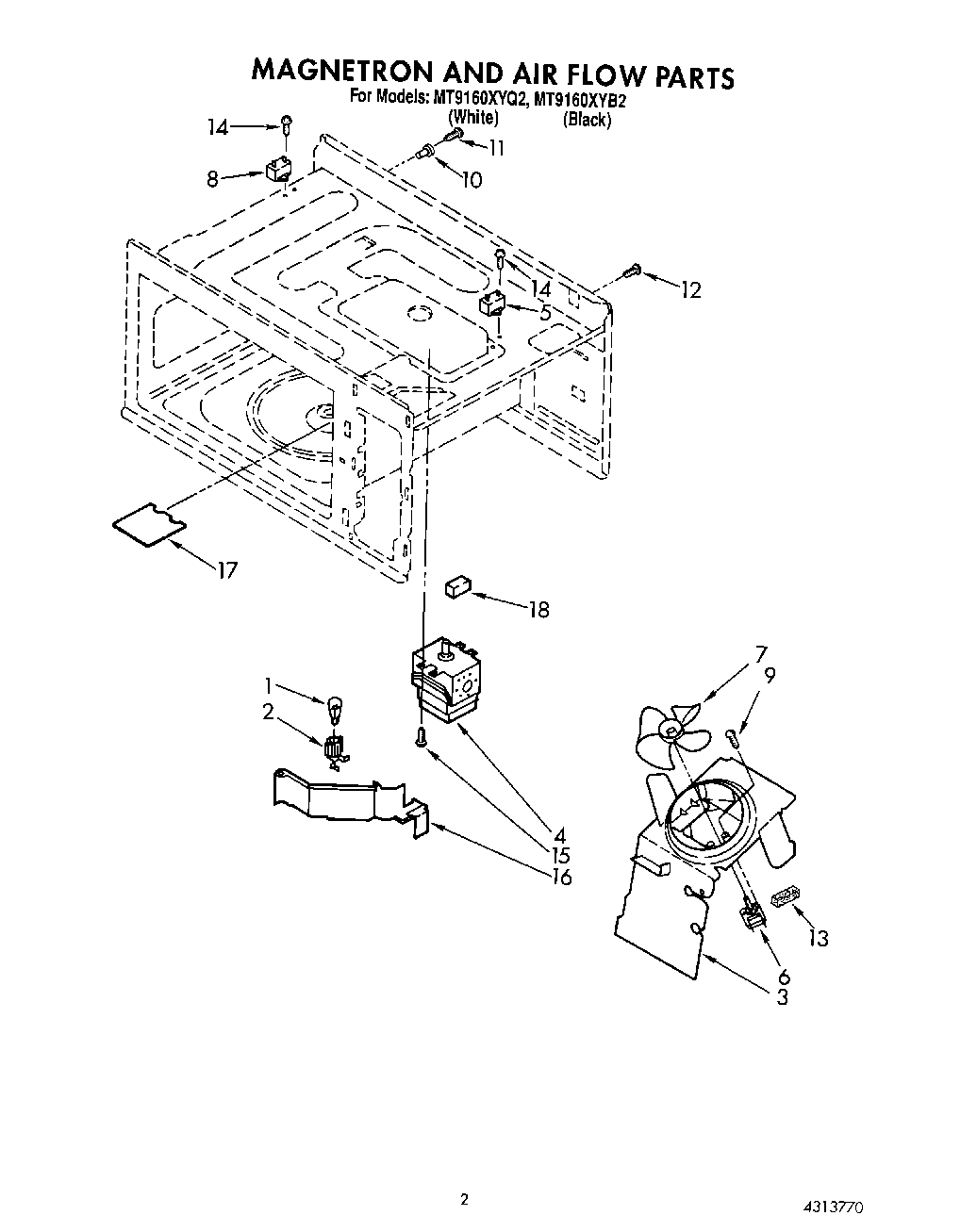

MT9160XYB2 02 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Lamp, Oven
2	Socket, Lamp
3	Duct, Fan
4	Magnetron
5	Fuse, Magnetron Temp
6	Motor, Fan
7	Blade, Fan
8	Fuse, Temp
9	Screw
10	Spacer
11	Screw
12	Screw
13	Cushion, Motor
14	Screw
15	Screw
16	Duct, Magnetron
17	Cover, Wave Guide
18	Shield, Magnetron
