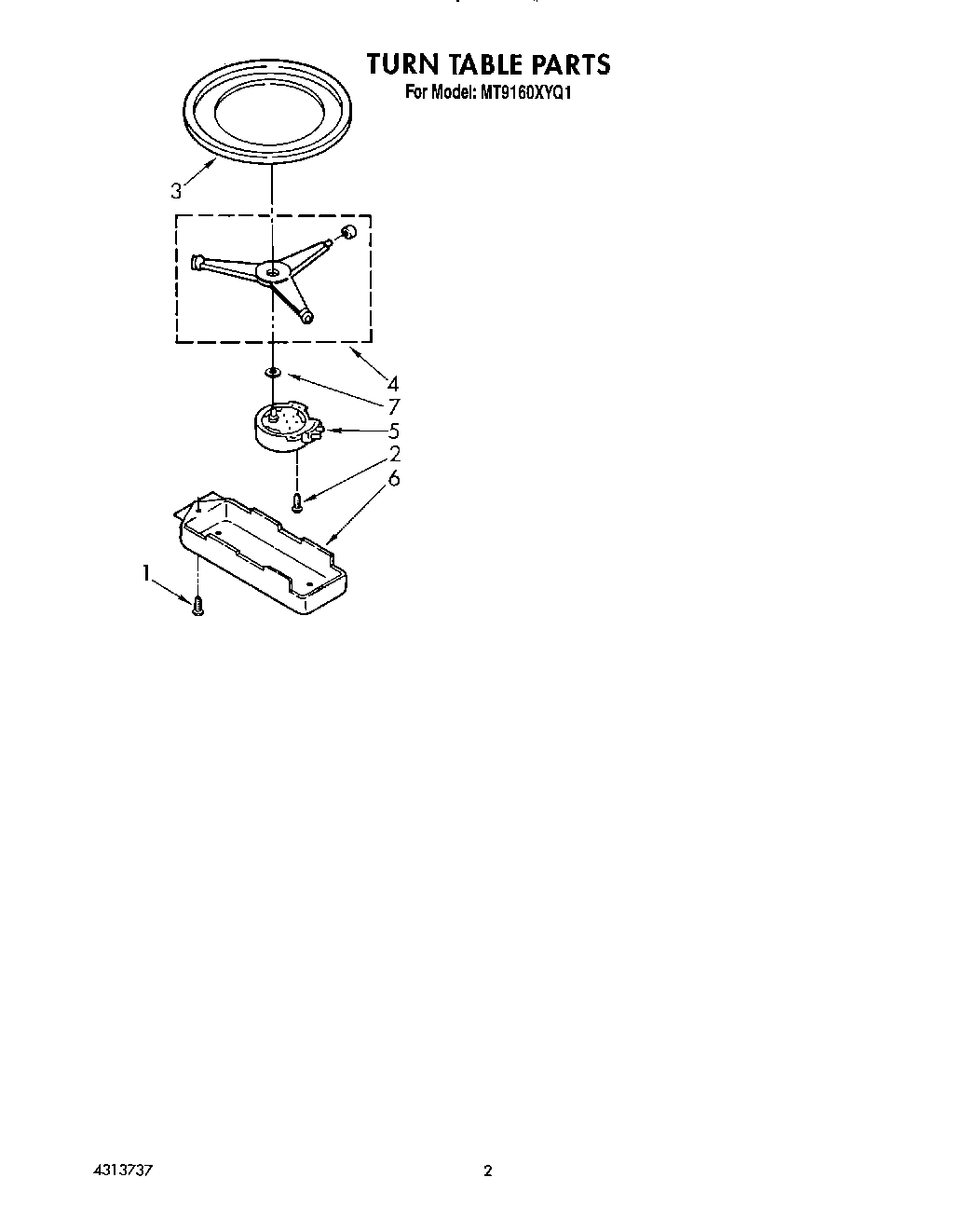

MT9160XYQ1 02 – TURNTABLE, LIT/OPTIONALadmin2025-04-26T08:44:49+00:00MT9160XYQ1 02 – TURNTABLE, LIT/OPTIONAL
Products
| Position | Product |
|---|
| List, Repair Parts |
| Built In Kit (For Use Over Non Heat Source) (White) |
| Built In Kit (For Use Over Non Heat Source) (Black) |
| Built-In Kit (For Use Over Non-Heat Source) (Black) |
| White |
| Manual, Operation |
| Tech Sheet |
| 1 | Screw |
| 2 | Screw |
| 3 | Tray, Glass |
| 4 | Support, Turntable |
| 5 | Motor, Turntable |
| 6 | Cover, Motor |
| 7 | Gasket, Turntable |
| 7 | Cord Brown (1/2 Oz.) |
| 7 | 261900 Whirlpool Microwave Spray |
| 7 | WPL 591014 |
| 7 | Wire, 25` Roll (Red 14 Ga.) |
| 7 | Wire, 25`` Roll (White 14 GA.) |
| 7 | WP482338 Whirlpool Refrigerator Adhesive |
| 7 | 242831 Whirlpool Oven Wire |
| 7 | WP261869 Whirlpool Microwave Paint |
| 7 | Wire (14 Ga. 150 c Blue) |
| 7 | Wire (14 Ga. 150 c Brown) |
| 7 | Wire (14 Ga. 150 c Green) |
| 7 | Wire (14 Ga. 150 c Orange) |
| 7 | Wire (14 Ga. 150 c Yellow) |
| 7 | Wire (12 Ga. 150 c Black) |
| 7 | 18 Ga. 80~c Rating (Red) |
| 7 | Wire (14 Ga. 200 c Brown) |
| 7 | 1 |
| 7 | Wire, 25` Roll (Black 14 Ga.) |
