MT9160XYQ1 03 – MAGNETRON AND AIR FLOW

MT9160XYQ1 03 – MAGNETRON AND AIR FLOW

Written by

in

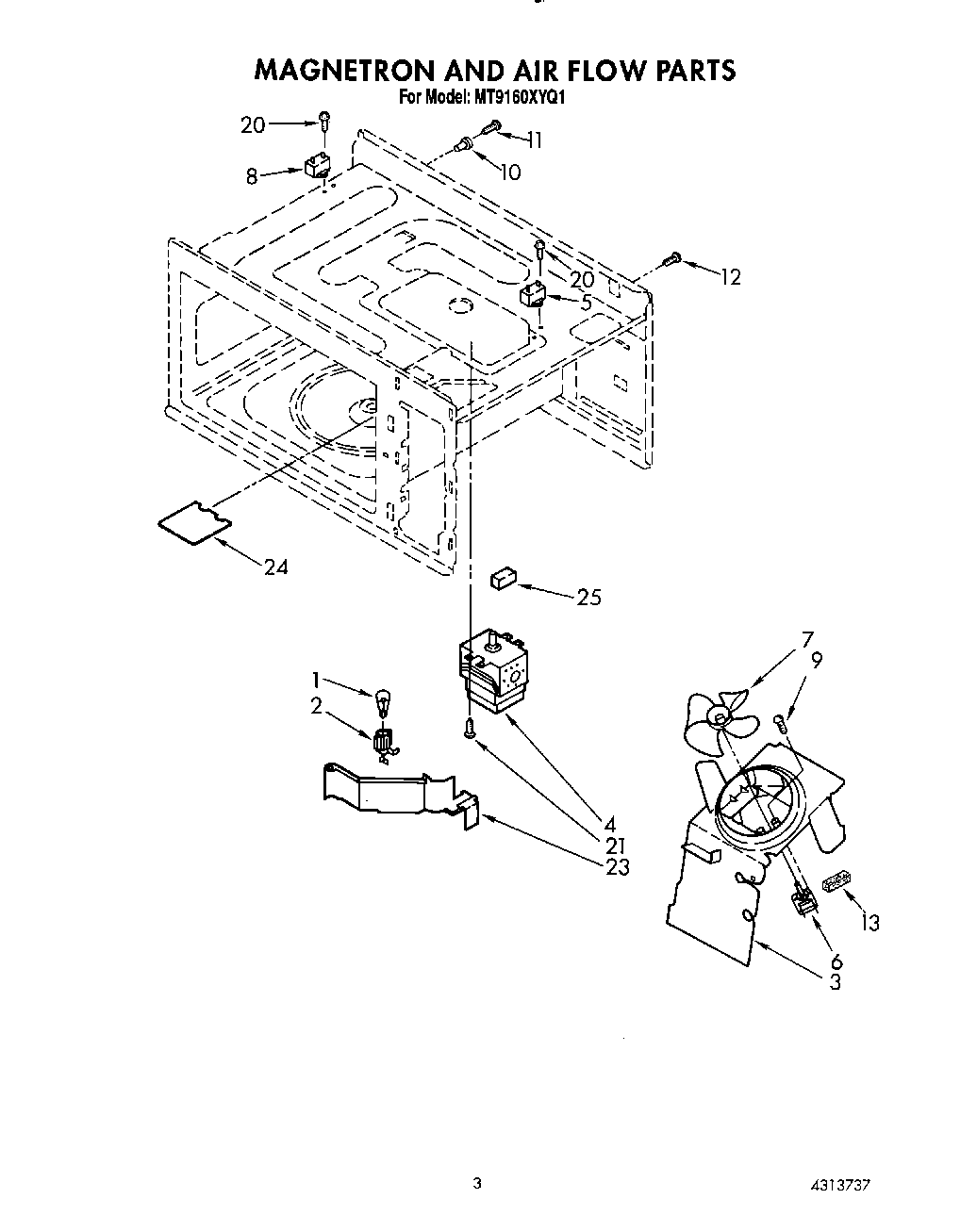

MT9160XYQ1 03 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Lamp, Oven
2Socket, Lamp
3Duct, Fan
4Magnetron
5Fuse, Magnetron Temp
6Motor, Fan
7Blade, Fan
8Fuse, Temp
9Screw
10Spacer
11Screw
12Screw
13Cushion, Motor
20Screw
21Screw
23Duct, Magnetron
24Cover, Wave Guide
25Shield, Magnetron
