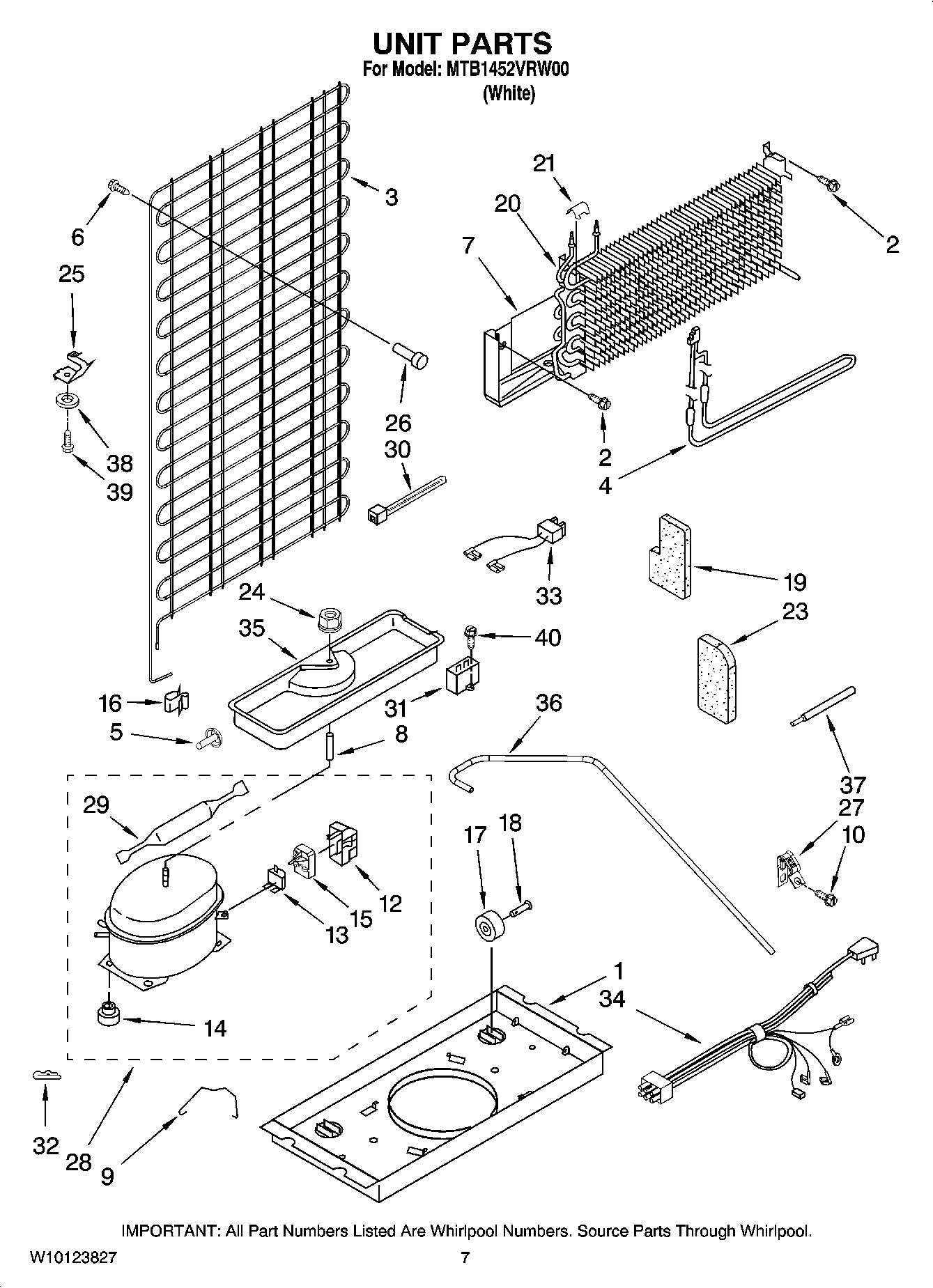

MTB1452VRW00 04 – UNIT PARTS

Products

Position	Product
1	MAY 2221886
3	MAY 2252730
4	MAY 2263749
5	Snap-Rivet Combo
6	MAY 8533892
7	MAY 2319224
8	MAY 2176844
9	MAY 2263622
10	MAY 489442
12	COVER ((SERVICE ONLY))
12	Cover (Production)
13	Overload (Service Only)
13	Overload (Production)
14	MAY 4387558
14	MAY 2222084
15	MAY 2262186
16	MAY 939054
17	Roller
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSEMBLY
21	Clip, Evaporator Tube
23	MAY 2262192
24	MAY 489153
25	MAY 2172892
26	MAY 2258452
27	MAY 549193
28	Compressor (Includes Items 12,13,14 & 29)
29	Drier
30	MAY 2263990
31	Capacitator (Production)
32	MAY 24364001
33	Wire Assembly (Production)
34	MAY 2258530
35	MAY 2176668
36	MAY 2264563
37	MAY 2320728
38	MAY VS611
39	MAY 2256637
40	Valve, Access (5/8“)
40	MAY 876764
40	Valve, Access (3/4“)
40	Valve, Access (1/2“)
40	VALVE, ACCESS (3/8“)
40	Valve, Access (5/16“)
40	VALVE, ACCESS (1/4“)
40	12658531CQ Whirlpool Refrigerator DOR-FIP Board
40	MAY 8533919
