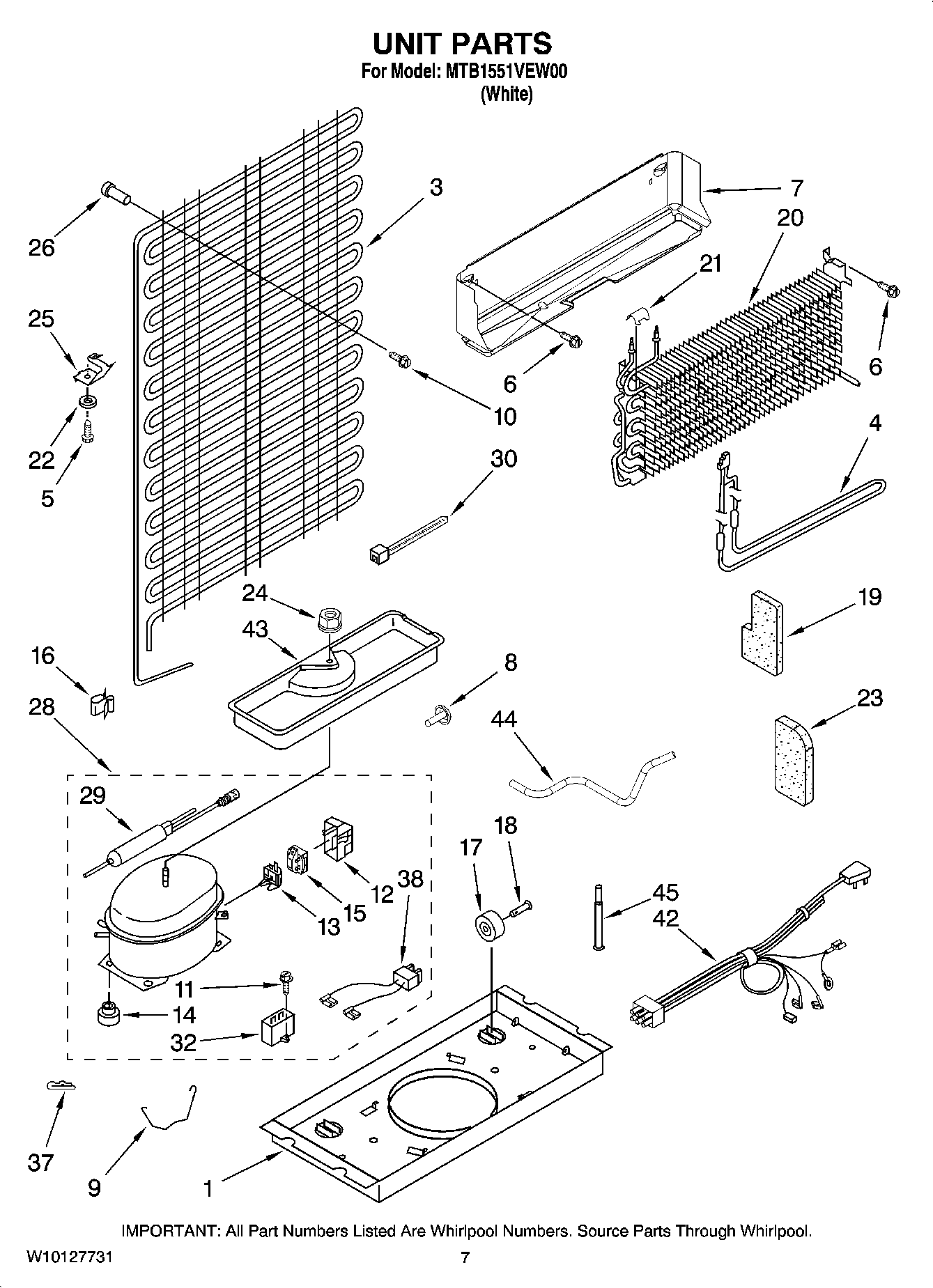

MTB1551VEW00 04 – UNIT PARTSadmin2025-04-26T08:44:07+00:00MTB1551VEW00 04 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | MAY 2221886 |
| 3 | MAY 2252730 |
| 4 | MAY 2176942 |
| 5 | MAY 2256637 |
| 6 | MAY 489442 |
| 7 | MAY 2319224 |
| 8 | Snap-Rivet Combo |
| 9 | BALE STRAP |
| 10 | MAY 8533892 |
| 11 | MAY 8533919 |
| 12 | COVER ((SERVICE ONLY)) |
| 12 | Cover (Production) |
| 13 | OVERLOAD ((SERVICE ONLY)) |
| 13 | MAY 2214067 |
| 14 | MAY 4387558 |
| 14 | MAY 2222084 |
| 15 | Relay-Combo Device Combination (Start Relay and Overload For Production Compressor Only) |
| 16 | MAY 939054 |
| 17 | Roller |
| 18 | RIVET, AXLE |
| 19 | Wedge-Evap. |
| 20 | EVAPORATOR ASSEMBLY |
| 21 | Clip, Evaporator Tube |
| 22 | MAY VS611 |
| 23 | MAY 2262192 |
| 24 | MAY 489153 |
| 25 | MAY 2172892 |
| 26 | MAY 2258452 |
| 28 | Compressor (Includes Items 12,13,14,27,29, 32 & 38) (Also Order 482801 Installation Kit & 876765 Tube Kit) |
| 29 | Drier |
| 30 | MAY 2263990 |
| 32 | Capacitor (Service) |
| 32 | Capacitator (Production) |
| 37 | MAY 24364001 |
| 38 | Wire Assembly (Service Only) |
| 38 | Wire Assembly (Production) |
| 42 | Wire Assy. Unit |
| 43 | MAY 2201801 |
| 44 | MAY 2264423 |
| 45 | VALVE, ACCESS (1/4``) |
| 45 | Valve, Access (5/16``) |
| 45 | Valve, Access (3/4``) |
| 45 | VALVE, ACCESS (3/8``) |
| 45 | Valve, Access (1/2``) |
| 45 | Valve, Access (5/8``) |
| 45 | MAY 876764 |
| 45 | 12658531CQ Whirlpool Refrigerator DOR-FIP Board |
| 45 | PROCESS TUBE |
