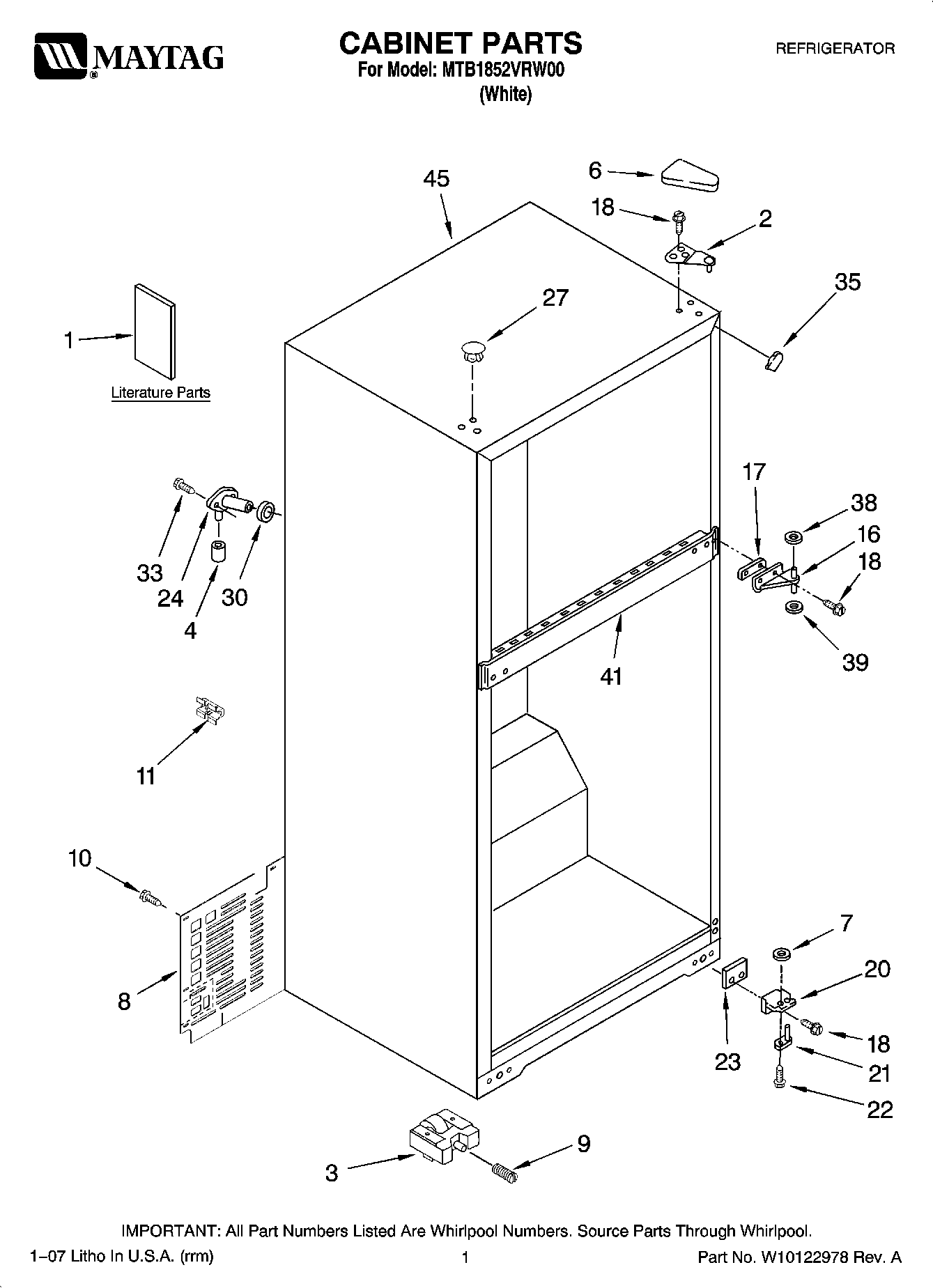

MTB1852VRW00 01 – CABINET PARTS – Aparts

MTB1852VRW00 01 – CABINET PARTS

Products

Position	Product
1	MAY 2328204
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
1	MAY 2326159
1	MAY 2265591
2	MAY 2261963
3	Roller-Front
4	CAP BUSHING
6	Cover, Hinge (White)
7	Washer
8	MAY 2264132
9	SCREW
10	MAY 489442
11	SPACER, BACK CB
16	MAY 2166086
17	SHIM, HINGE CENTER (WHITE)
18	MAY 489497
20	MAY 2221926
21	Hinge-Pin, Bottom
22	MAY 3428970
23	MAY 2201567
24	MAY 2174760
27	HOLE PLUG
30	Seal
33	MAY 2262176
35	Corner Filler
38	WASHER, PLASTIC
39	Washer (1/16)
