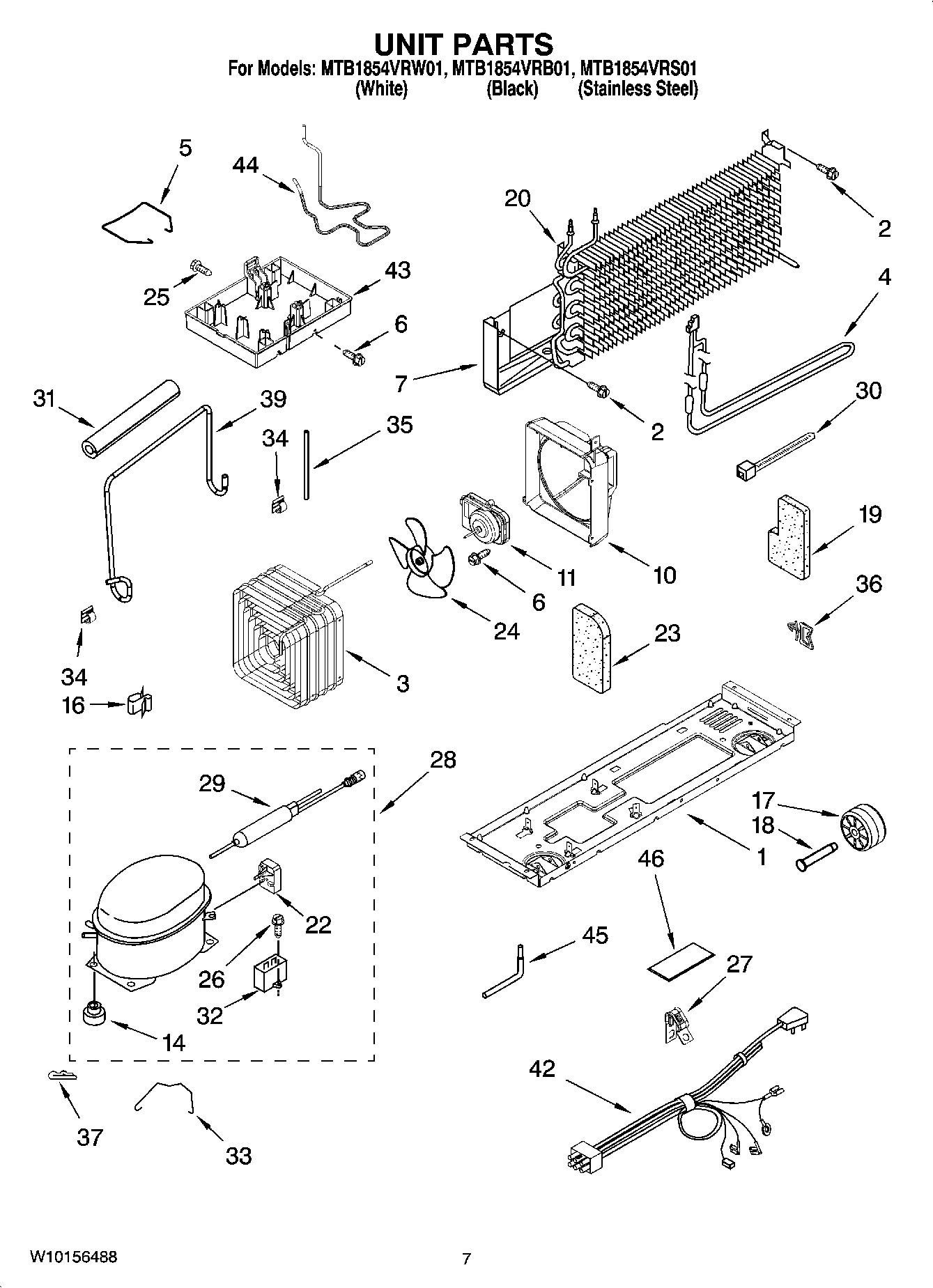

MTB1854VRB01 04 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	12658531CQ Whirlpool Refrigerator DOR-FIP Board
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY W10127456
2	MAY 489442
3	MAY W10140200
4	MAY 2176942
5	MAY 2264835
6	MAY 8533859
7	MAY 2319224
10	MAY 2263929
11	MAY 2188875
14	MAY 4387558
14	MAY 2222084
16	MAY 939054
17	Roller
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
22	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (SERVICE)
23	MAY 2262192
24	MAY 2264129
25	MAY 2264841
26	MAY 8533919
27	MAY 549193
28	Compressor (Includes Items 14,29, & 32)
29	Drier
30	MAY 2263990
31	MAY 2264838
32	Capacitator (Production)
32	Capacitor (Service)
33	Bale Strap
34	MAY 1114718
35	MAY 2264278
36	CLIP-HARNESS
37	MAY 24364001
39	MAY W10140199
42	MAY 2263753
43	Evaporating Tray
44	Tube, Discharge (Incl. Pre Cooler)
45	MAY W10140201
46	SHIELD-ELECTRICAL
