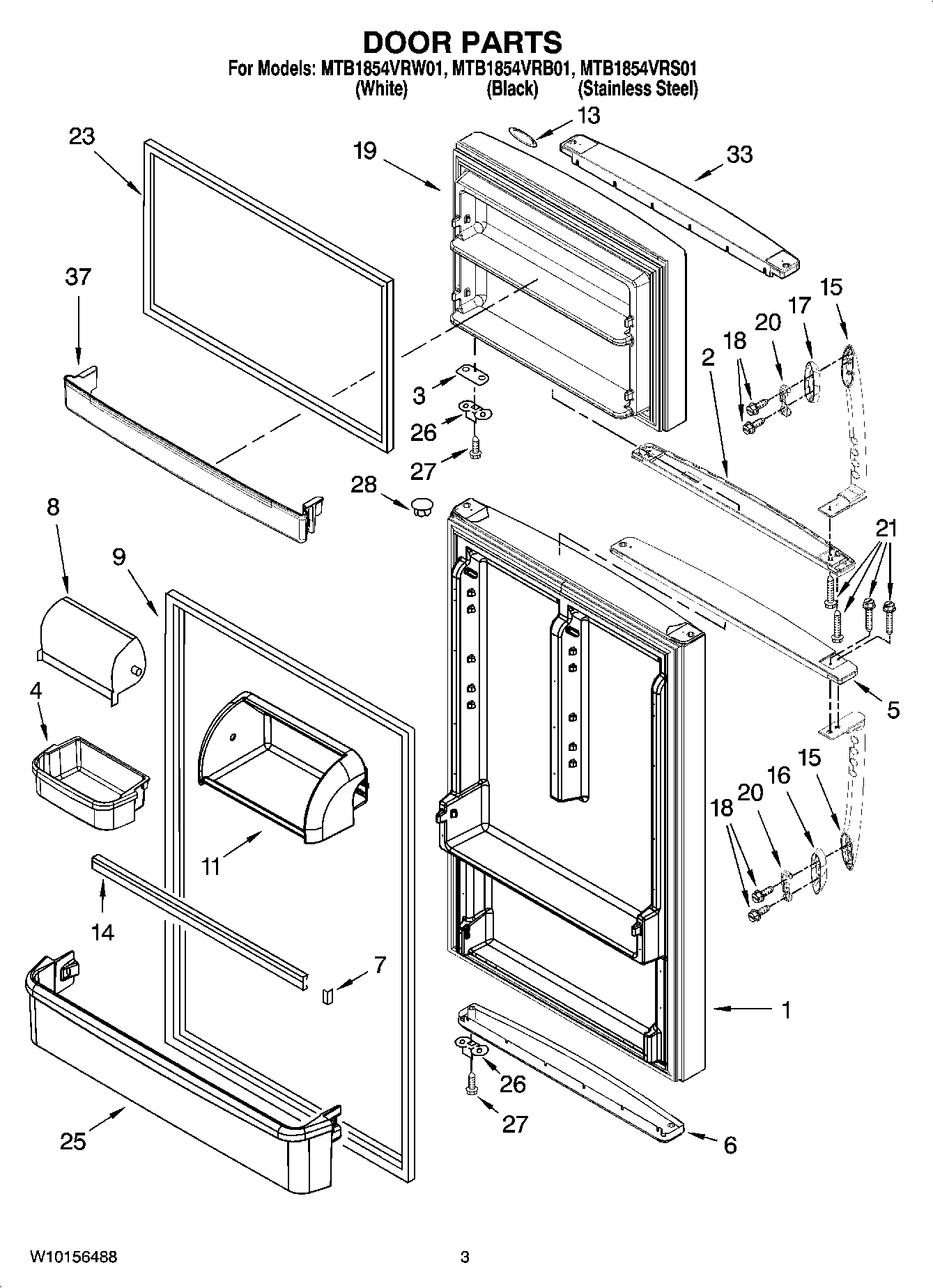

MTB1854VRS01 02 – DOOR PARTSadmin2025-04-26T08:44:44+00:00MTB1854VRS01 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | MAY 2325620B |
| 1 | Refrigerator Door (Includes Items 6 & 7) (Stainless Steel) |
| 1 | Refrigerator Door (Includes Items 6 & 7) (White) |
| 2 | End Cap-Handle-FC (Black) |
| 2 | End Cap-Handle-FC (White) |
| 3 | Shim, Door Stop (Black) |
| 3 | Shim, Door Stop (White) |
| 4 | MAY 2266150 |
| 5 | End Cap-Handle-RC (Black) |
| 5 | End Cap-Handle-RC (White) |
| 6 | Endcap, Bottom (Black) |
| 6 | Endcap, Bottom (White) |
| 7 | Plug-Trim |
| 8 | Door, Compartment |
| 9 | GASKET, RC (BLACK) |
| 9 | MAY 2264727 |
| 11 | Utility Comprtmnt. |
| 13 | MAY 2324038 |
| 14 | Trim, Door Shelf |
| 15 | Handle-RC & FC (White) |
| 15 | Handle-RC & FC (Black) |
| 16 | MAY 2325607B |
| 16 | Collar-Handle (RC), White |
| 17 | MAY 2325605B |
| 17 | Collar-Handle (FC), White |
| 18 | MAY W10122125 |
| 19 | Freezer Door (Includes Items 13 & 19) (White) |
| 19 | MAY 2325621B |
| 19 | Freezer Door (Includes Items 13 & 19) (Stainless Steel) |
| 20 | MAY 2255411 |
| 21 | MAY 8534058 |
| 23 | GASKET, FC (BLACK) |
| 23 | MAY 2264726 |
| 25 | MAY 2266146 |
| 26 | MAY 2189202 |
| 27 | MAY 8533904 |
| 28 | MAY 2212648 |
| 28 | Hole Plug (Black) |
| 33 | Endcap, Top (White) |
| 33 | Endcap, Top (Black) |
| 37 | MAY 2266148 |
