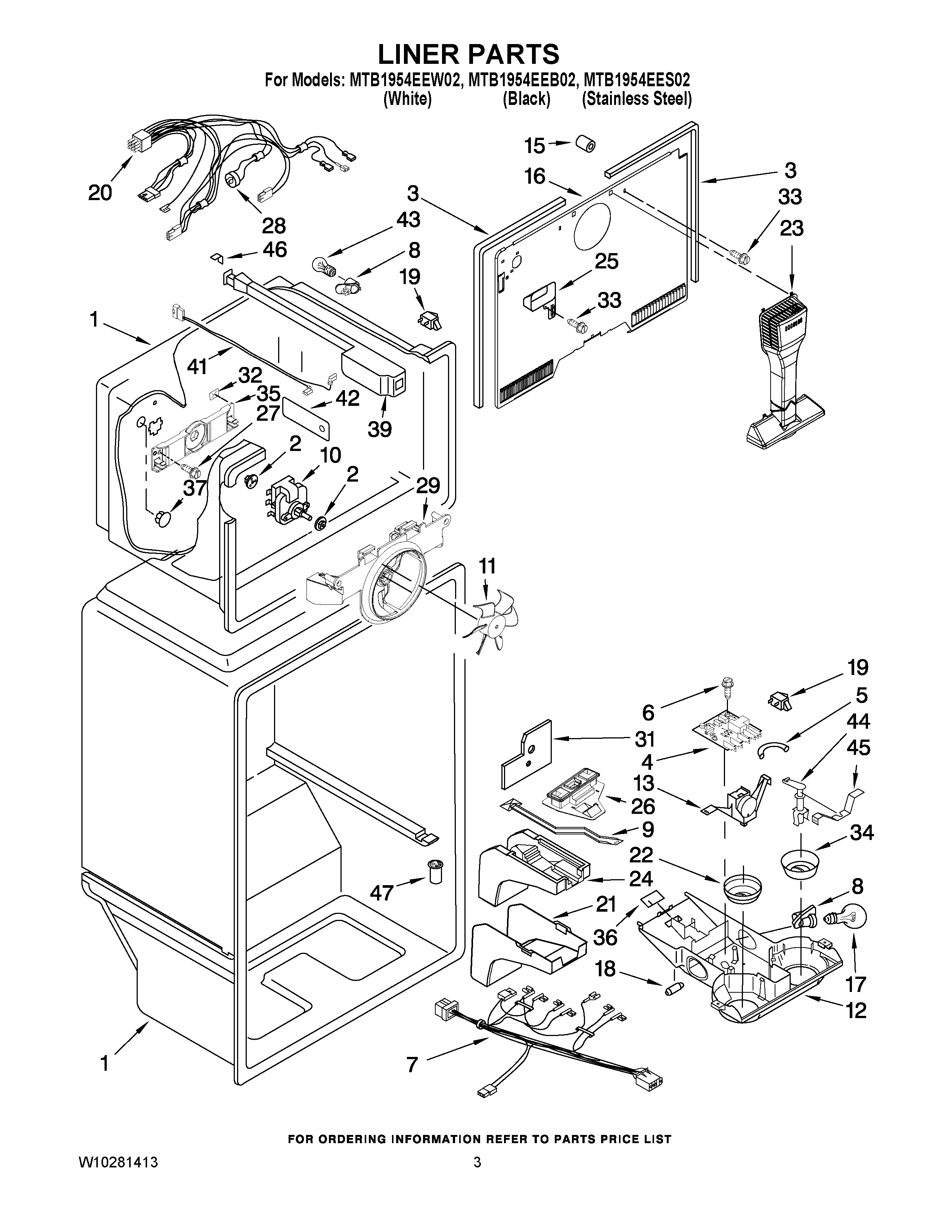

MTB1954EEB02 02 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	MAY 2254359
4	Screw
5	MAY 2212485
6	MAY 8534009
7	MAY 2310057
8	Socket, Light
9	MAY 2179858
10	MAY 2315539
11	Fan Blade
12	MAY 2212982
13	Thermostat Assembly (Includes Illus. 5 & 18)
15	CAP BUSHING
16	MAY 2320191
17	MAY 527949
18	MAY 2200831
19	MAY 1118894
20	MAY W10129791
21	MAY 2176281
22	MAY 2200863
23	MAY 2254354
24	MAY 2189452
25	MAY 2205003
26	AIR SEPARATOR, ASSEMBLY
27	Screw
28	MAY 2321800
29	Bracket,
31	MAY 2204639
32	Retainer-Screw Fan Motor
33	MAY 489478
34	MAY 2302536
35	Bracket, Fan Back
36	MAY 2205079
37	MAY 941839
39	MAY 2300417
41	MAY 2187601
42	Electrical Shield, Freezer Light
43	Light Bulb
44	MAY 2179859
45	MAY 2163810
46	MAY 2166284
47	MAY 2210509
