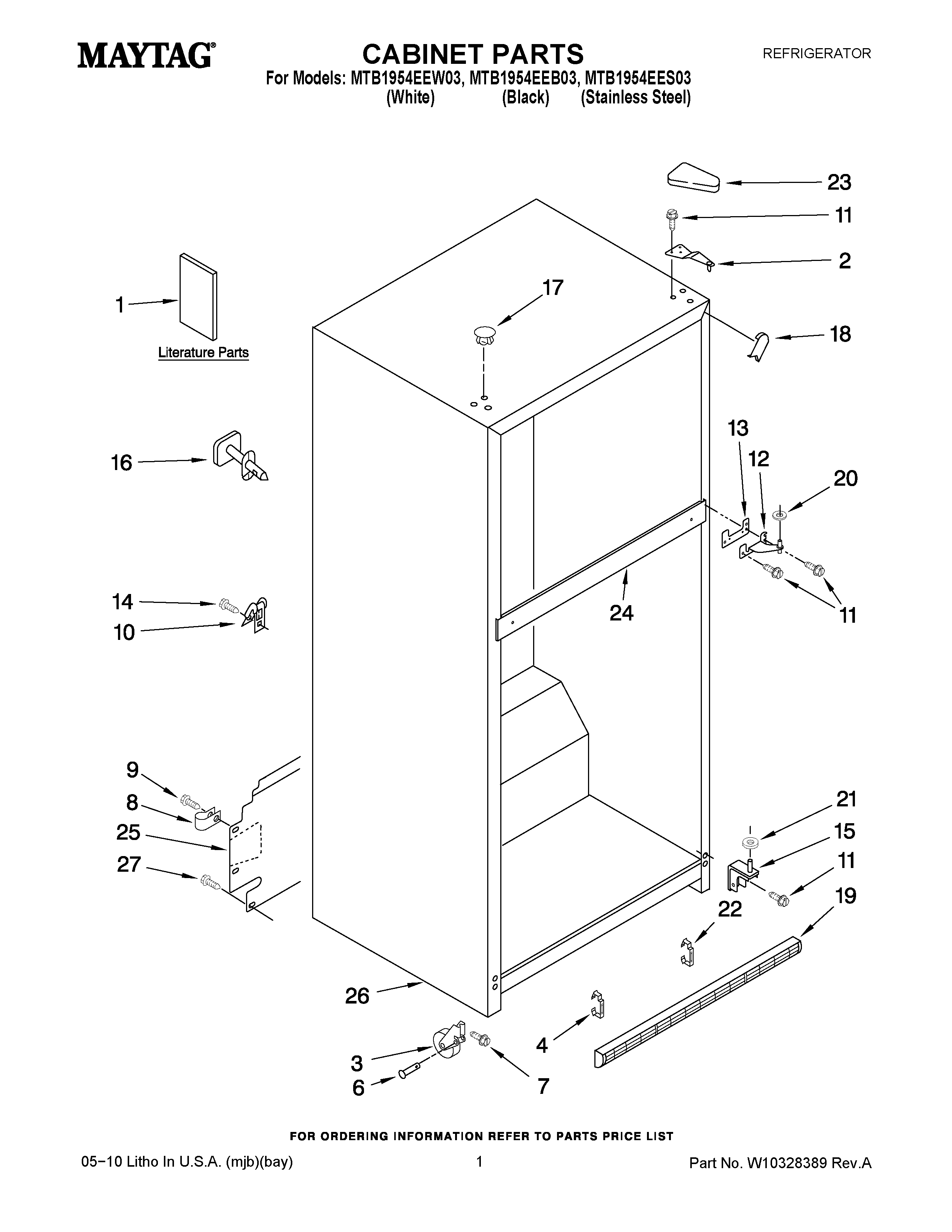

MTB1954EES03 01 – CABINET PARTS

MTB1954EES03 01 – CABINET PARTS

Written by

in

MTB1954EES03 01 – CABINET PARTS

Products

PositionProduct
1MAY W10251541
1MAY W10249207
1MAY W10249206
1MAY W10312254
1DO-IT-YOURSELF MANUAL REF./ FRZ.
2MAY 2261963
3MAY 2166108
4MAY 2189356
6MAY 2221797
7MAY 3400504
8CLAMP, TUBE
9MAY 489427
10MAY 549193
11MAY 489497
12MAY 2254618
13MAY 2183852
14MAY 8281265
15MAY 2254473
17HOLE PLUG
17MAY 2183998
18CORNER FILLER (WHITE)
18CORNER FILLER (BLACK)
19Grille (Includes Illus. 4 & 22) (White)
19Grille (Includes Illus. 4 & 22) (Black)
20WASHER, PLASTIC
21Washer (1/16)
22MAY 2254385
23MAY 2213363
23Cover, Hinge (White)
25MAY 2254578
26LINER (NOT A SERVICEABLE PART)
27MAY 489442
