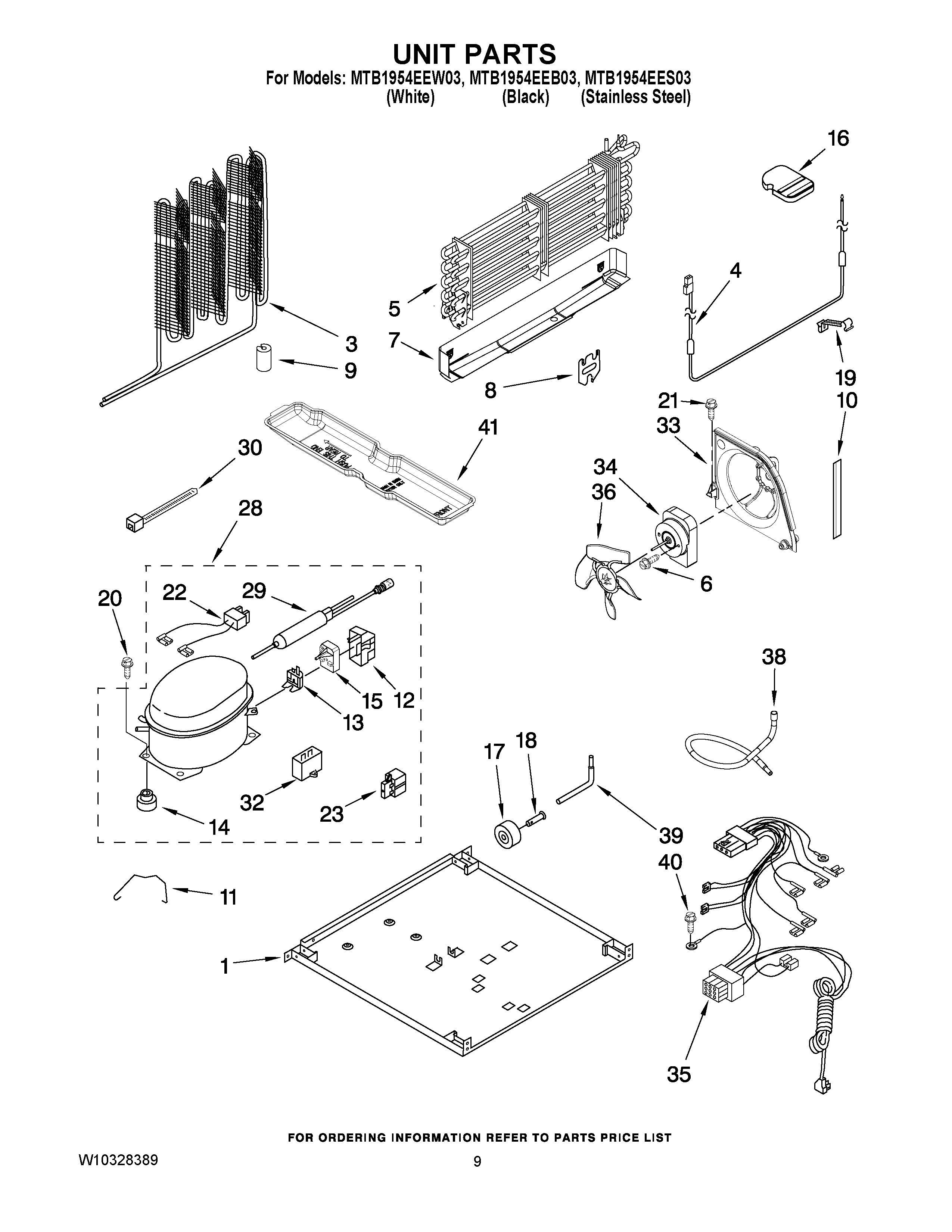

MTB1954EES03 05 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2``)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
1	MAY 2320188
3	MAY W10159808
4	MAY 2315531
5	MAY 2254250
6	MAY 8533961
7	MAY 2254294
8	MAY 2176301
9	GROMMET, CONDENSER
10	MAY 2300638
11	BALE STRAP
12	COVER ((SERVICE ONLY))
13	OVERLOAD ((SERVICE ONLY))
14	MAY 4387558
14	Grommet (Production)
15	START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (SERVICE)
16	MAY 2201184
17	Roller
18	MAY 2179826
19	MAY 2182338
20	MAY 489373
21	MAY 3400518
22	Wire Assembly (Service Only)
23	Start Relay (Service Only)
28	COMPRESSOR (INCLUDES ITEMS 12,13,14 & 27) (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
29	Drier
30	MAY 2155774
32	Capacitor (Service)
32	Capacitator (Production)
33	MAY 2315541
34	MOTOR, CONDENSOR
35	Wire Assembly Unit
36	MAY 2225834
38	MAY 2225237
39	MAY 2154109
40	MAY 488500
41	Evaporator Tray
