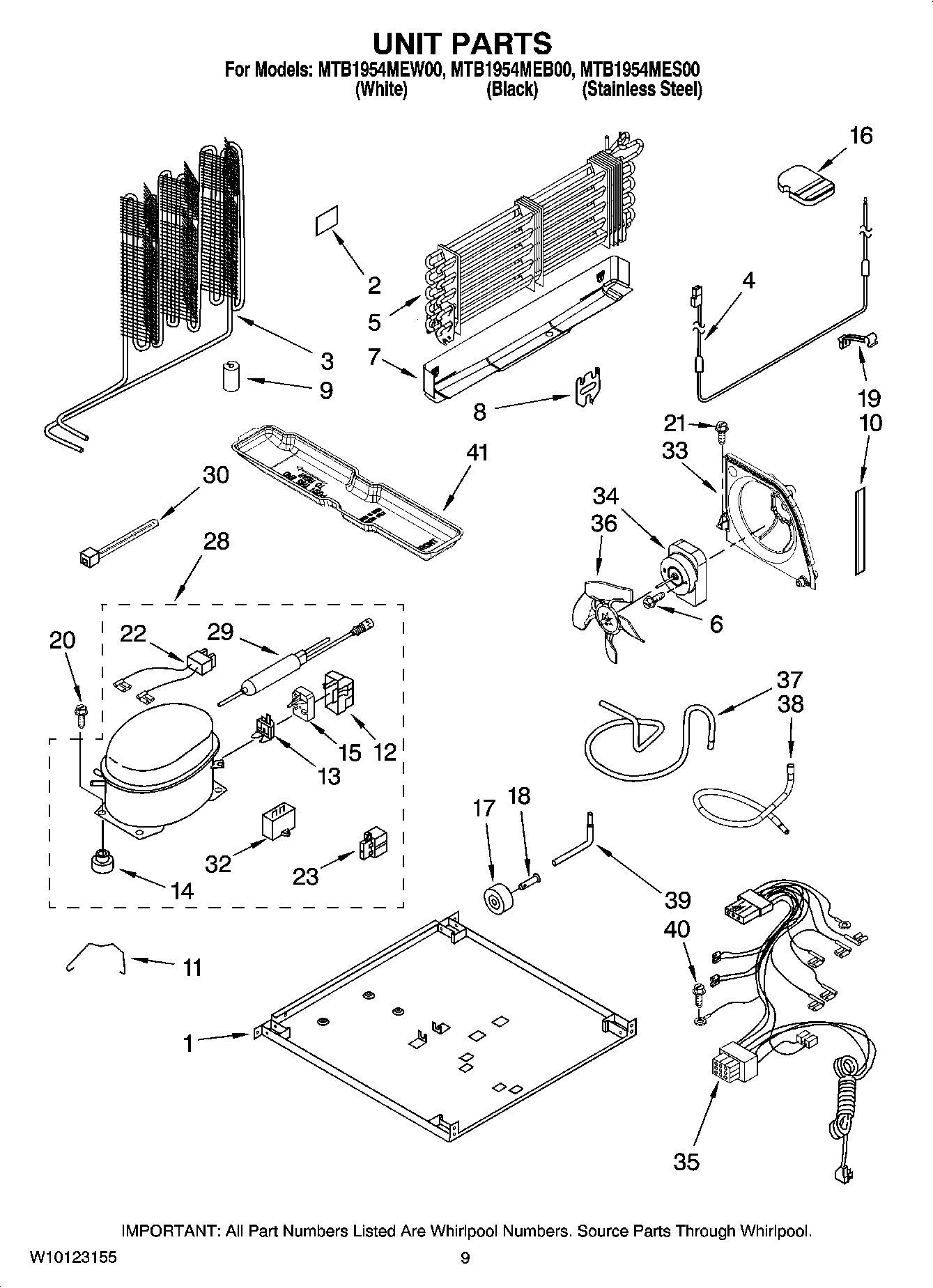

MTB1954MEW00 05 – UNIT PARTSadmin2025-04-26T08:44:58+00:00MTB1954MEW00 05 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | MAY 2320188 |
| 2 | SEALER, INSULATION |
| 3 | MAY 2214960 |
| 4 | MAY 2315531 |
| 5 | MAY 2254250 |
| 6 | MAY 8533859 |
| 7 | MAY 2254294 |
| 8 | MAY 2176301 |
| 9 | GROMMET, CONDENSER |
| 10 | MAY 2300638 |
| 11 | BALE STRAP |
| 12 | COVER ((SERVICE ONLY)) |
| 13 | OVERLOAD ((SERVICE ONLY)) |
| 14 | MAY 4387558 |
| 14 | Grommet (Production) |
| 15 | START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION) |
| 16 | MAY 2201184 |
| 17 | Roller |
| 18 | MAY 2179826 |
| 19 | MAY 2182338 |
| 20 | MAY 489373 |
| 21 | MAY 3400518 |
| 22 | Wire Assembly (Service Only) |
| 23 | Start Relay (Service Only) |
| 28 | Compressor (Includes Items 12,13,14,22,23, 29 & 32) |
| 29 | Drier |
| 30 | MAY 2155774 |
| 32 | Capacitor (Service) |
| 32 | CAPACITATOR (SERVICE) |
| 33 | MAY 2315541 |
| 34 | MOTOR, CONDENSOR |
| 35 | Wire Assembly Unit |
| 36 | MAY 2225834 |
| 37 | MAY 2205384 |
| 38 | MAY 2225237 |
| 39 | MAY 2154109 |
| 40 | MAY 488500 |
| 41 | 12658531CQ Whirlpool Refrigerator DOR-FIP Board |
| 41 | MAY 876764 |
| 41 | VALVE, ACCESS (1/4``) |
| 41 | Valve, Access (1/2``) |
| 41 | Evaporator Tray |
| 41 | Valve, Access (3/4``) |
| 41 | Valve, Access (5/16``) |
| 41 | VALVE, ACCESS (3/8``) |
| 41 | Valve, Access (5/8``) |
