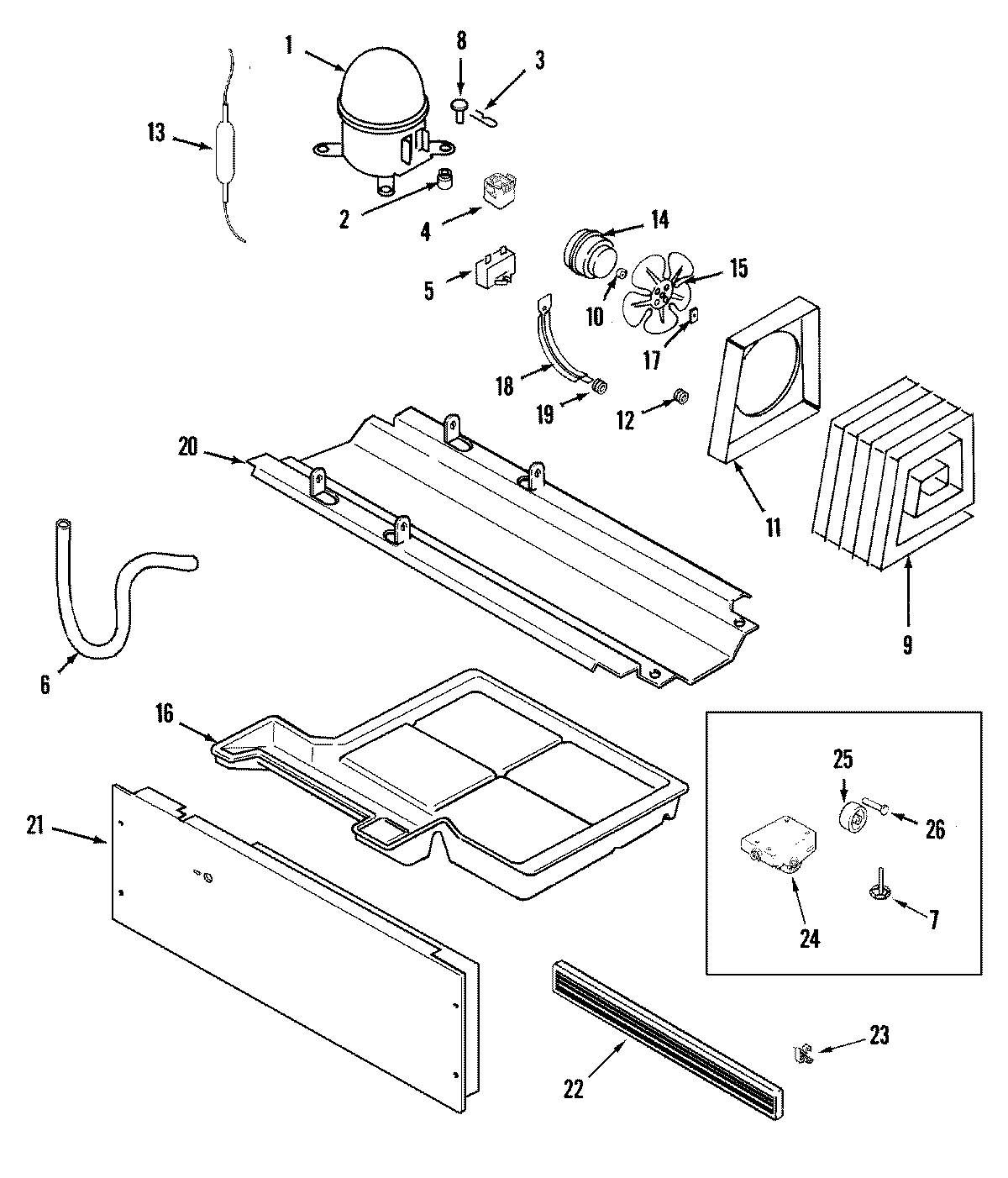

MTB1976HRQ 01 – COMPRESSOR (REV 10)

Products

Position	Product
1	W10160407 Whirlpool Refrigerator Compressor
1	MAY 61004917
2	GROMMET (SERVICE)
3	MAY 61005561
4	MAY 61006187
4	12002794 Whirlpool Refrigerator Overload Relay Kit
5	WP65889-4 Whirlpool Refrigerator Capacitor
5	WP489478 Whirlpool Refrigerator Screw
6	MAY 61006123
7	MAY 61002014
8	MAY 61006030
9	WP489399 Whirlpool Refrigerator Screw
9	MAY 61005427
10	MAY 61001686
11	MAY 61001941
12	MAY 61002033
13	WPW10143759 Whirlpool Dryer Filter
14	833697 Whirlpool Condenser Fan Motor
14	MAY 65275-33
15	MAY 60683-1
16	MAY 61004095
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 69181-1
19	GROMMET, BRACKET
20	MAY 61005272
20	WP67006715 Whirlpool Refrigerator Screw
21	MAY 61005913
22	MAY 61005011
23	MAY 61001975
24	MAY 61005232
24	MAY 65275-50
25	WP61003826 Whirlpool Wheel
26	WP61002104 Whirlpool Refrigerator Pin Wheel
27	MAY 12001492
