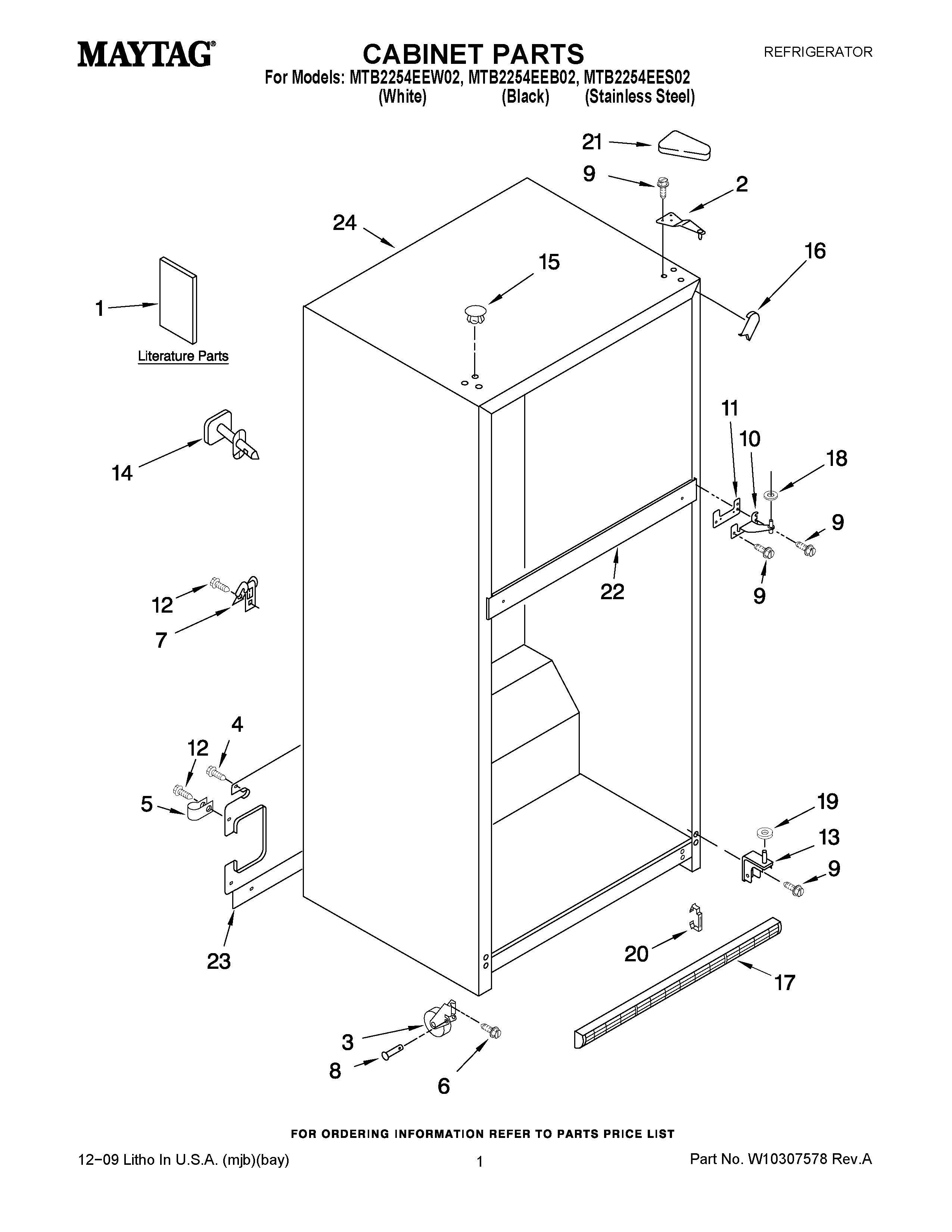

MTB2254EES02 01 – CABINET PARTS – Aparts

MTB2254EES02 01 – CABINET PARTS

Products

Position	Product
1	MAY W10251543
1	MAY W10142143
1	MAY W10249207
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
1	MAY W10249206
2	MAY 2189410
3	MAY 2166108
4	MAY 489427
5	CLAMP, TUBE
6	MAY 3400504
7	MAY 549193
8	MAY 2179826
9	MAY 489497
10	MAY 2254618
11	MAY 2183852
12	MAY 8281265
13	MAY 2254473
15	HOLE PLUG
15	MAY 2183998
16	CORNER FILLER (WHITE)
16	CORNER FILLER (BLACK)
17	Grille (Includes Illus. 20) (Black)
17	Grille (Includes Illus. 20) (White)
18	WASHER, PLASTIC
19	Washer (1/16)
20	MAY 2189356
21	MAY 2213363
21	Cover, Hinge (White)
23	MAY 2254576
24	LINER (NOT A SERVICEABLE PART)
