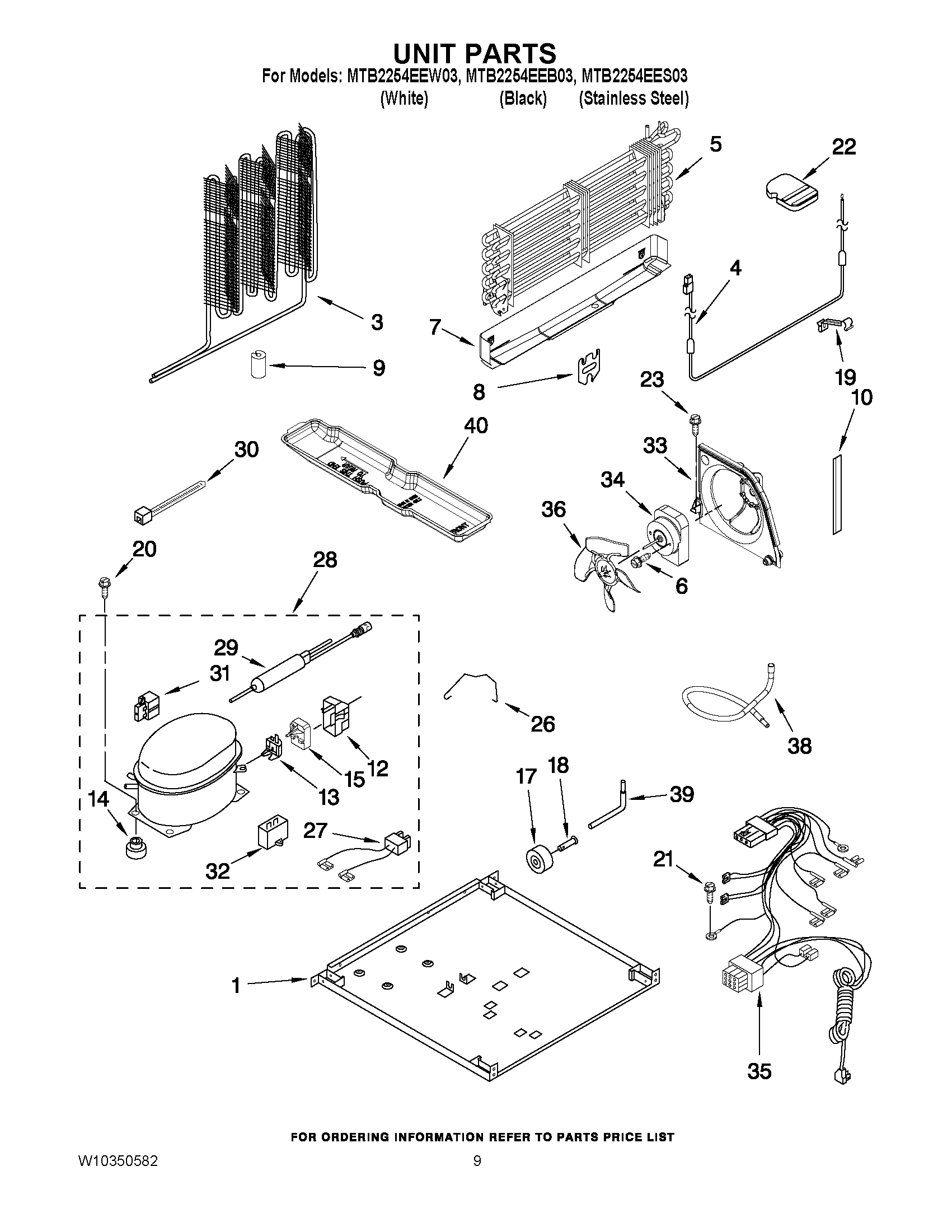

MTB2254EES03 05 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2``)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
1	MAY 2320187
3	MAY W10268878
4	MAY W10140847
5	MAY 2254249
6	MAY 8533961
7	MAY 2254295
8	MAY 2176301
9	GROMMET, CONDENSER
10	MAY 2300638
12	COVER ((SERVICE ONLY))
13	OVERLOAD ((SERVICE ONLY))
14	MAY 4387558
14	Grommet (Production)
15	START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (SERVICE)
17	Roller
18	MAY 2221797
19	MAY 2182338
20	MAY 489373
21	MAY 488500
22	MAY 2201185
23	MAY 3400518
26	BALE STRAP
27	Wire Assembly (Service Only)
28	COMPRESSOR (INCLUDES ITEMS 12,13,14 & 27) (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
29	Drier
30	MAY 2263990
31	Start Relay (Service Only)
32	Capacitor (Service)
32	Capacitator (Production)
33	MAY 2315541
34	MOTOR, CONDENSOR
35	WIRE ASSY. UNIT
36	MAY 2225834
38	MAY 2225237
39	MAY 2154109
40	Evaporator Tray
