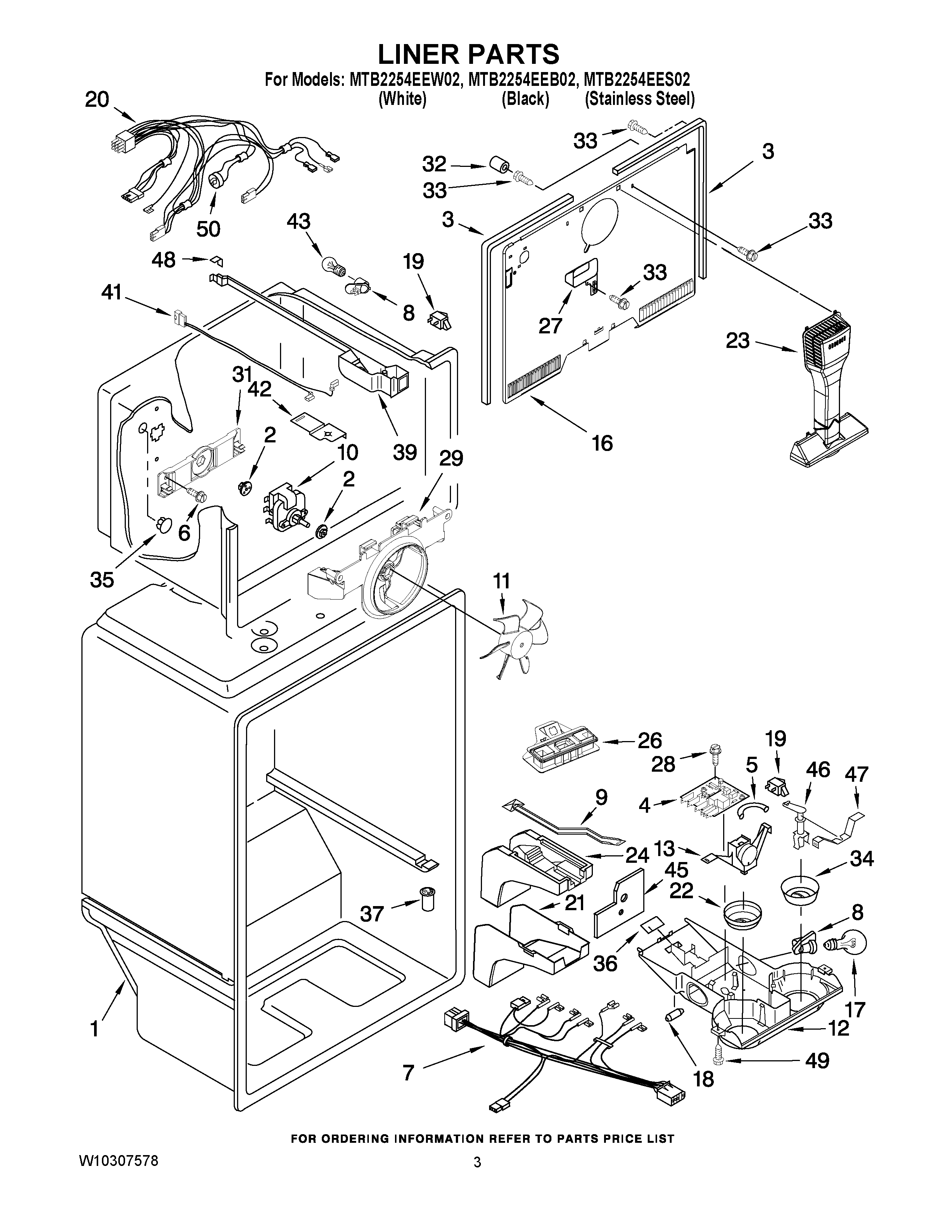

MTB2254EEW02 02 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	MAY 2254360
4	Screw
5	MAY 2212485
6	Screw
7	MAY 2310057
8	Socket, Light
9	MAY 2179858
10	MAY W10208121
11	Fan Blade
12	MAY 2212982
13	Thermostat Assembly
16	Cover-Evaporator
17	MAY 527949
18	MAY 2200831
19	MAY 1118894
20	Wire Assembly, Freezer Compartment (Includes Item 35)
21	MAY 2176281
22	MAY 2200863
23	MAY 2254354
24	MAY 2189452
26	DIFFUSER
27	MAY 2205003
28	MAY 8534009
29	Bracket,
31	Bracket, Fan Back
32	CAP BUSHING
33	MAY 489478
34	MAY 2302536
35	MAY 941839
36	MAY 2205079
37	MAY 2210509
39	MAY 2300418
41	MAY 2187601
42	Electrical Shield, Freezer Light
43	Light Bulb
45	MAY 2204639
46	MAY 2179859
47	MAY 2163810
48	MAY 2166284
49	MAY 489442
50	MAY 2321800
