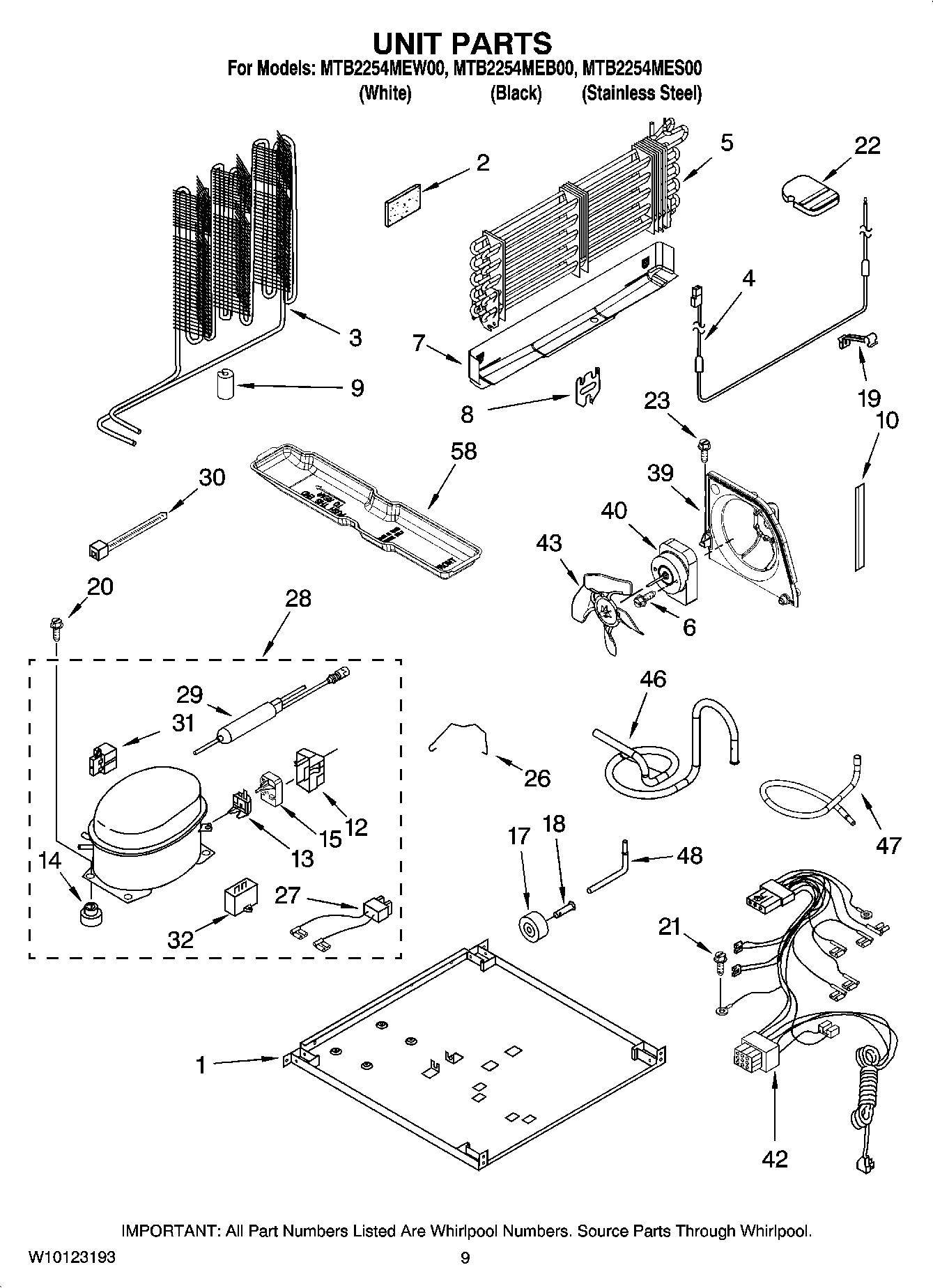

MTB2254MES00 05 – UNIT PARTS

Products

Position	Product
1	MAY 2320187
2	SEALER, INSULATION
3	MAY 2214960
4	MAY 2314157
5	MAY 2254249
6	MAY 8533859
7	MAY 2254295
8	MAY 2176301
9	GROMMET, CONDENSER
10	MAY 2300638
12	COVER ((SERVICE ONLY))
13	OVERLOAD ((SERVICE ONLY))
14	MAY 4387558
14	Grommet (Production)
15	START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
17	Roller
18	MAY 2221797
19	MAY 2182338
20	MAY 489373
21	MAY 488500
22	MAY 2201185
23	MAY 3400518
26	BALE STRAP
27	Wire Assembly (Service Only)
28	Compressor (Includes Items 12,13,14,22,23, 29 & 32)
29	Drier
30	MAY 2155774
31	Start Relay (Service Only)
32	CAPACITATOR (SERVICE)
32	Capacitor (Service)
39	MAY 2302249
40	MOTOR, CONDENSOR
42	Wire Assembly Unit
43	MAY 2225834
46	MAY 2205384
47	MAY 2225237
48	MAY 2154109
58	MAY 876764
58	VALVE, ACCESS (1/4“)
58	Evaporator Tray
58	Valve, Access (5/16“)
58	VALVE, ACCESS (3/8“)
58	Valve, Access (5/8“)
58	Valve, Access (3/4“)
58	12658531CQ Whirlpool Refrigerator DOR-FIP Board
58	Valve, Access (1/2“)
