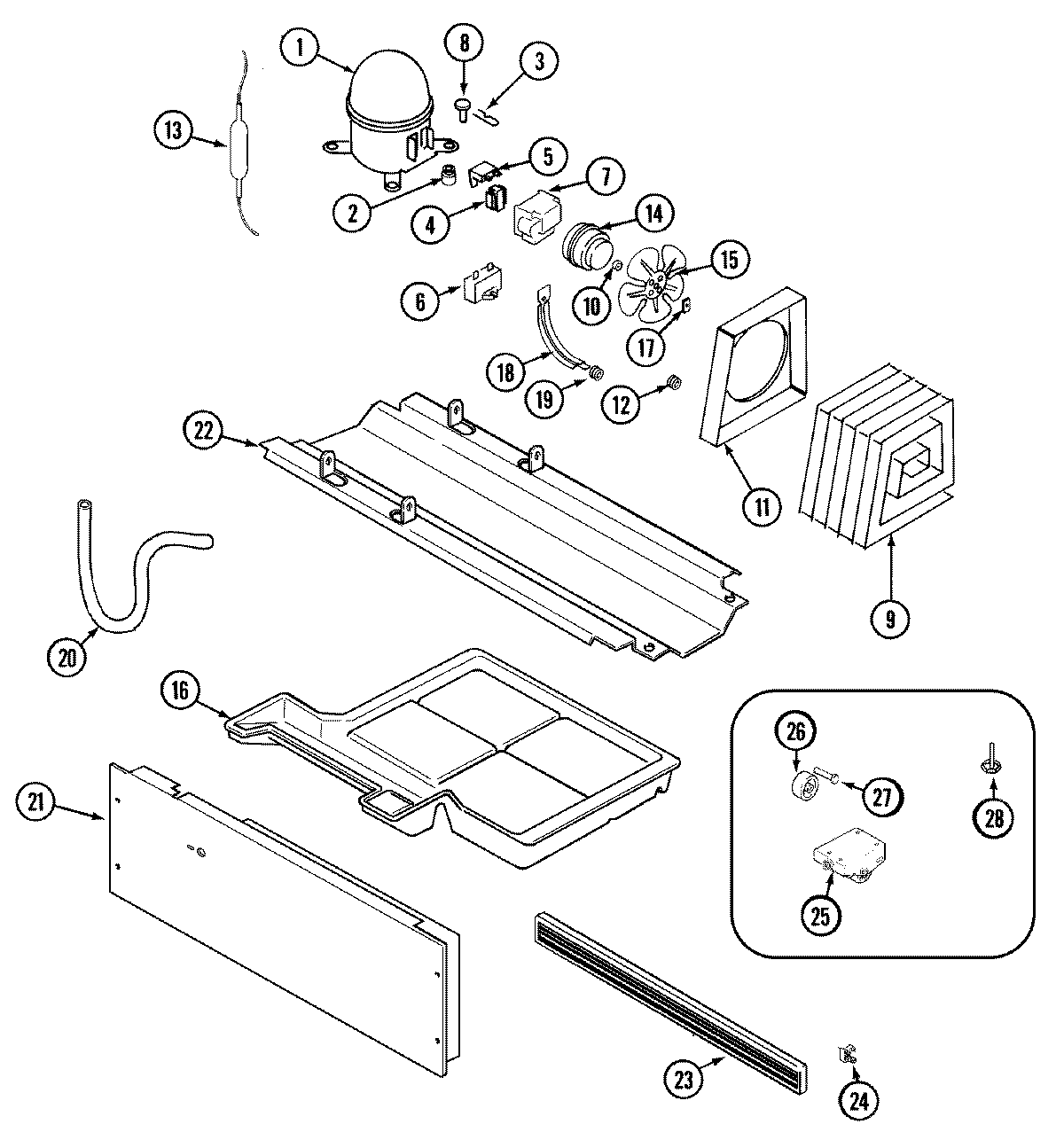

MTB2456DEQ 01 – COMPRESSOR (BISQUE)

Products

Position	Product
1	W10309990 Whirlpool Refrigerator Compressor
1	MAY 61002223
2	WP4387558 Whirlpool Refrigerator Compressor Grommet
2	MAY 17245-4
3	MAY 61003099
4	WP10097202 Whirlpool Refrigerator Start Device
5	MAY 61002037
6	WP65889-4 Whirlpool Refrigerator Capacitor
7	WP61002138 Whirlpool Refrigerator Terminal Cover
8	MAY 52656-2
9	MAY 61004378
9	MAY 61002841
10	MAY 61001686
11	MAY 61001941
12	MAY 61002033
13	WPW10143759 Whirlpool Dryer Filter
14	MAY 65275-33
14	833697 Whirlpool Condenser Fan Motor
15	MAY 60683-1
16	MAY 61002649
16	WP489478 Whirlpool Refrigerator Screw
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 69181-1
19	GROMMET, BRACKET
20	MAY 61002214
21	MAY 61004667
21	MAY 65275-1
21	MAY 65275-5
22	WP67006715 Whirlpool Refrigerator Screw
22	MAY 61002519
22	MAY 61005268
23	MAY 61004901
24	MAY 61001975
25	MAY 61002066
25	SCREW
25	MAY 61005232
26	WP61003826 Whirlpool Wheel
27	WP61002104 Whirlpool Refrigerator Pin Wheel
28	MAY 61002014
29	MAY 61004711
30	MAY 16008248
