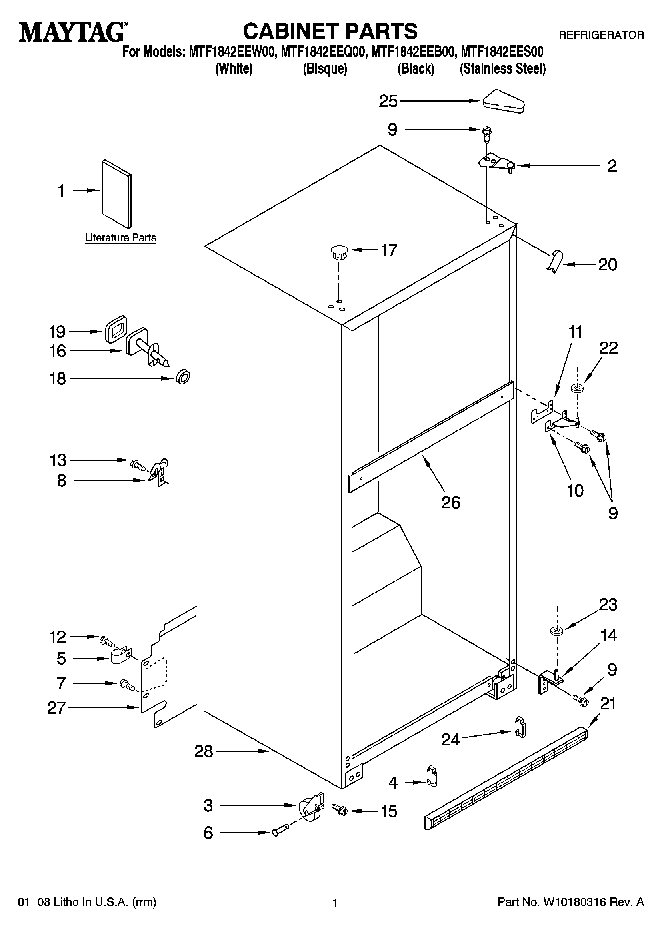

MTF1842EEQ00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10178139
1	MAY W10131421
1	MAY W10131413
1	MAY W10142143
1	ICEMAKER SERVICE SHEET
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
2	MAY 2189410
3	MAY 2166108
4	MAY 2189356
5	CLAMP, TUBE
6	MAY 2179826
7	MAY 489427
8	MAY 549193
9	MAY 489497
10	MAY 2254618
11	MAY 2183852
12	MAY 488886
13	MAY 8281265
14	MAY 2254473
15	MAY 3400504
17	HOLE PLUG
17	MAY 2183998
17	HOLE PLUG (BISCUIT)
20	Corner Filler (2) (Biscuit)
20	MAY 2201017
20	Corner Filler (2) (White)
21	Grille (Includes Illus. 4 & 22) (White)
21	Grille (Includes Illus. 4 & 22) (Black)
21	Grille (Includes Illus. 4 & 24) (Bisque)
22	WASHER, PLASTIC
23	Washer (1/16)
24	MAY 2254385
25	COVER, HINGE (BISCUIT/BISQUE)
25	Cover, Hinge (White)
25	MAY 2213363
27	MAY 2254578
