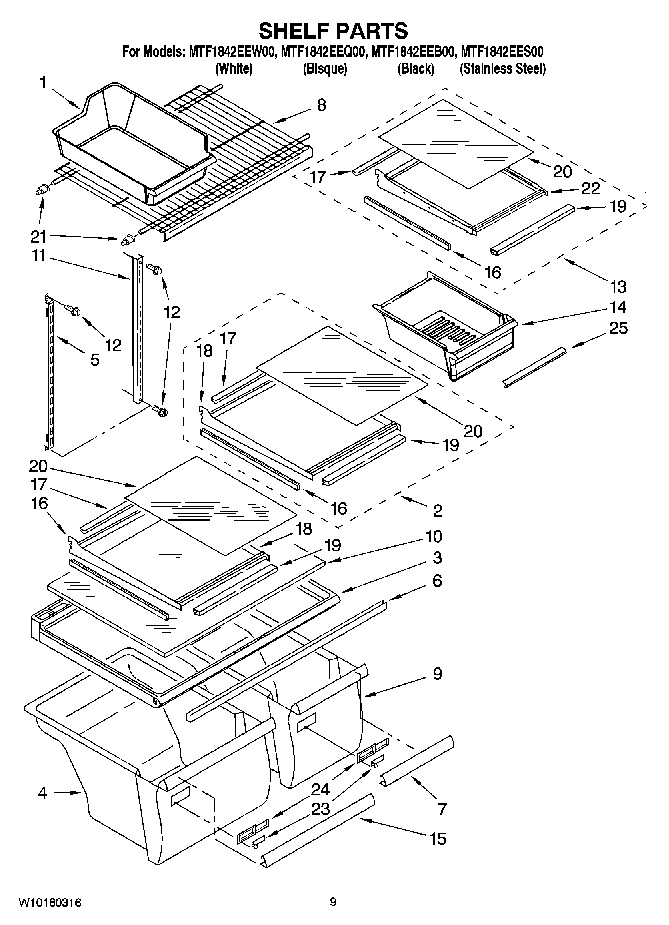

MTF1842EES00 05 – SHELF PARTSadmin2025-04-26T12:12:06+00:00MTF1842EES00 05 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | Bucket, Ice |
| 2 | Shelf Assembly |
| 3 | MAY 2314548 |
| 4 | Pan, Crisper (13-Inch) (Includes 17,20) |
| 5 | MAY 2300520 |
| 6 | Support, Crisper |
| 7 | MAY 2320366 |
| 8 | MAY 2176275 |
| 9 | Pan, Crisper (10-Inch) (Includes 17, 20) |
| 10 | MAY 2221693 |
| 11 | MAY 2210522 |
| 12 | MAY 489478 |
| 13 | Shelf Assembly (W/Pan Slide) |
| 14 | MAY 2218127 |
| 15 | MAY 2320357 |
| 16 | Trim Shelf, Side |
| 17 | Trim-Shelf, Rear |
| 18 | Shelf-Cantilever |
| 19 | Trim-Shelf, Front |
| 20 | Glass, Half Shelf |
| 21 | MAY 2163762 |
| 22 | Shelf Assy |
| 23 | Slide, Humidity Control |
| 24 | MAY 2212446 |
| 25 | MAY 2176356 |
