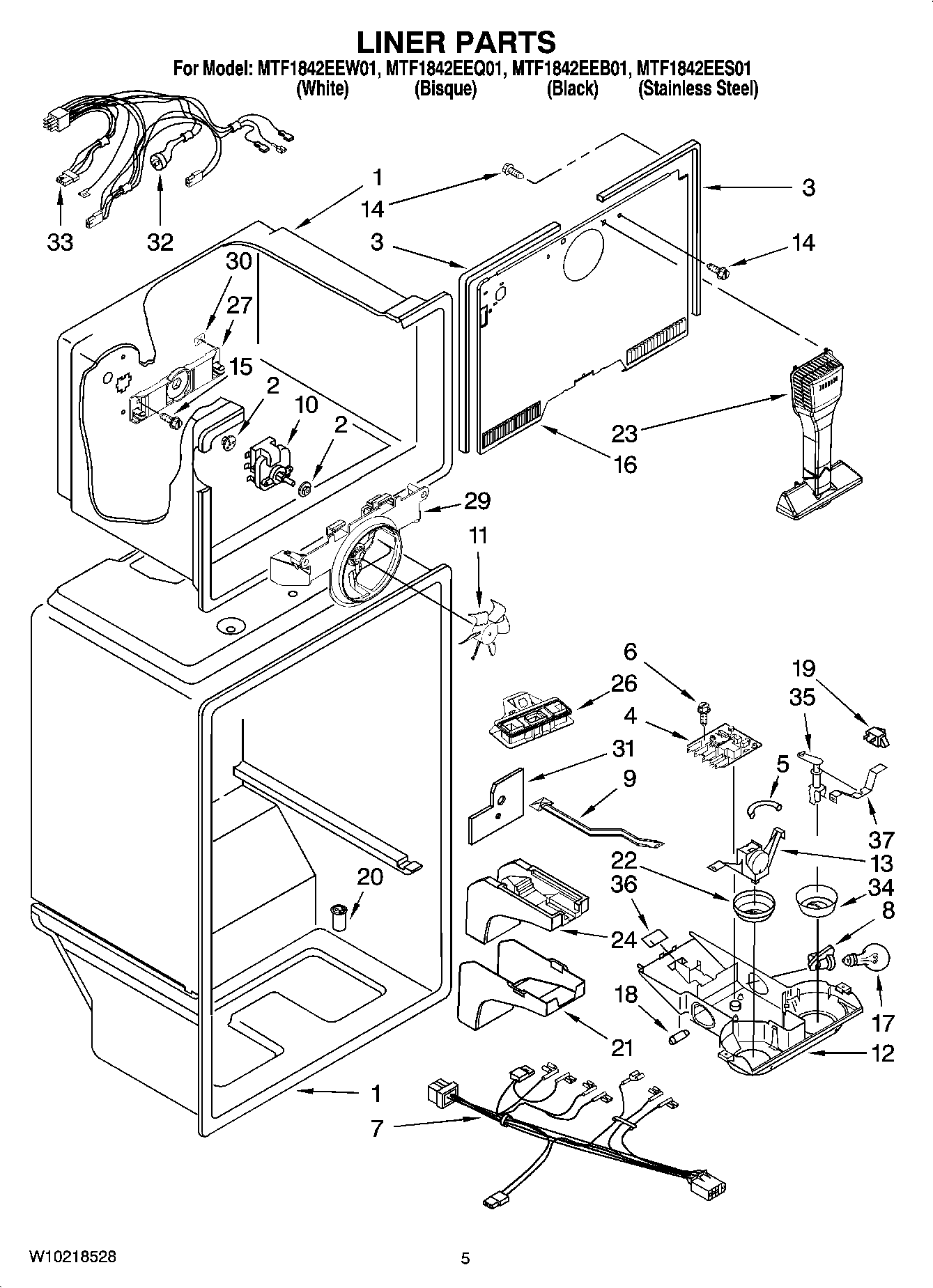

MTF1842EES01 03 – LINER PARTS

Products

Position	Product
2	MAY 2197380
3	MAY 2254359
4	Screw
5	MAY 2212485
6	MAY 8534009
7	MAY 2310057
8	Socket, Light
9	MAY 2179858
10	MAY 2214986
11	Fan Blade
12	MAY 2212982
13	Thermostat Assy. (Includes Illus. 5 & 18)
14	MAY 489478
15	Screw
16	MAY 2320192
17	MAY 527949
18	MAY 2200831
19	MAY 1118894
20	Valve
21	MAY 2176281
22	MAY 2200863
23	MAY 2254354
24	MAY 2189452
26	MAY 2210390
27	Bracket, Fan Back
29	Bracket,
30	Retainer-Screw Fan Motor
31	MAY 2204639
32	MAY 2321800
33	Wire Assembly, Frzr. Compartment (Includes Illus. 28)
34	MAY 2302536
35	MAY 2179859
36	MAY 2205079
37	MAY 2163810
