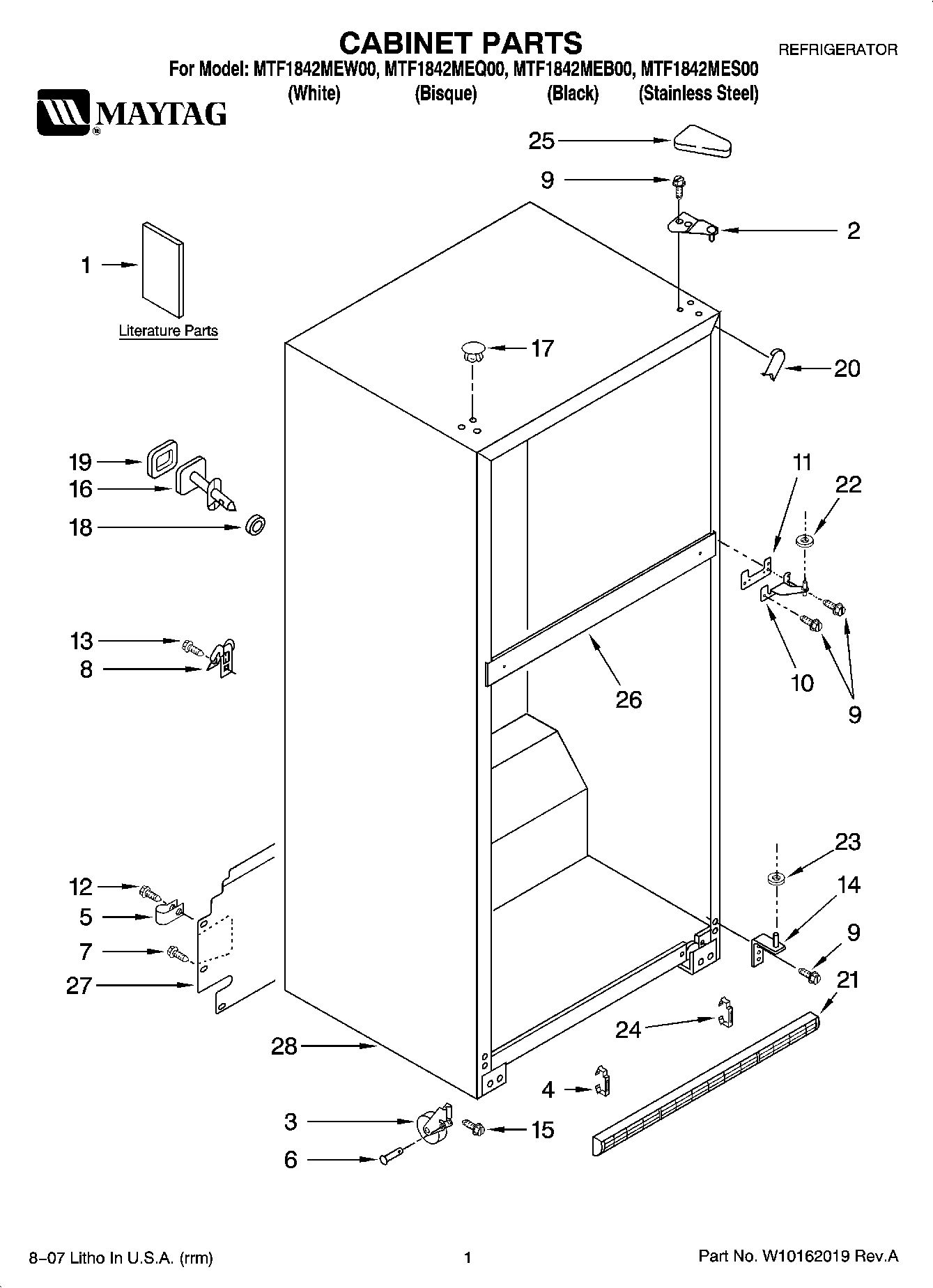

MTF1842MEB00 01 – CABINET PARTS

Products

Position	Product
1	MAY 2314274
1	MAY W10157846
1	ICEMAKER SERVICE SHEET
1	MAY 2320376
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
2	MAY 2189410
3	MAY 2166108
4	MAY 2189356
5	CLAMP, TUBE
6	MAY 2179826
7	MAY 489427
8	MAY 549193
9	MAY 489497
10	MAY 2254618
11	MAY 2183854
12	MAY 488886
13	MAY 8281265
14	MAY 2254473
15	MAY 3400504
17	HOLE PLUG (BISCUIT)
17	MAY 2183998
17	HOLE PLUG
20	MAY 2201017
20	Corner Filler (2) (White)
20	Corner Filler (2) (Biscuit)
21	Grille (Includes Illus. 4 & 22) (White)
21	Grille (Includes Illus. 4 & 22) (Black)
21	Grille (Includes Illus. 4 & 24) (Bisque)
22	WASHER, PLASTIC
23	Washer (1/16)
24	MAY 2254385
25	Cover, Hinge (White)
25	COVER, HINGE (BISCUIT/BISQUE)
25	MAY 2213363
26	PANEL-CNTL
27	MAY 2254578
