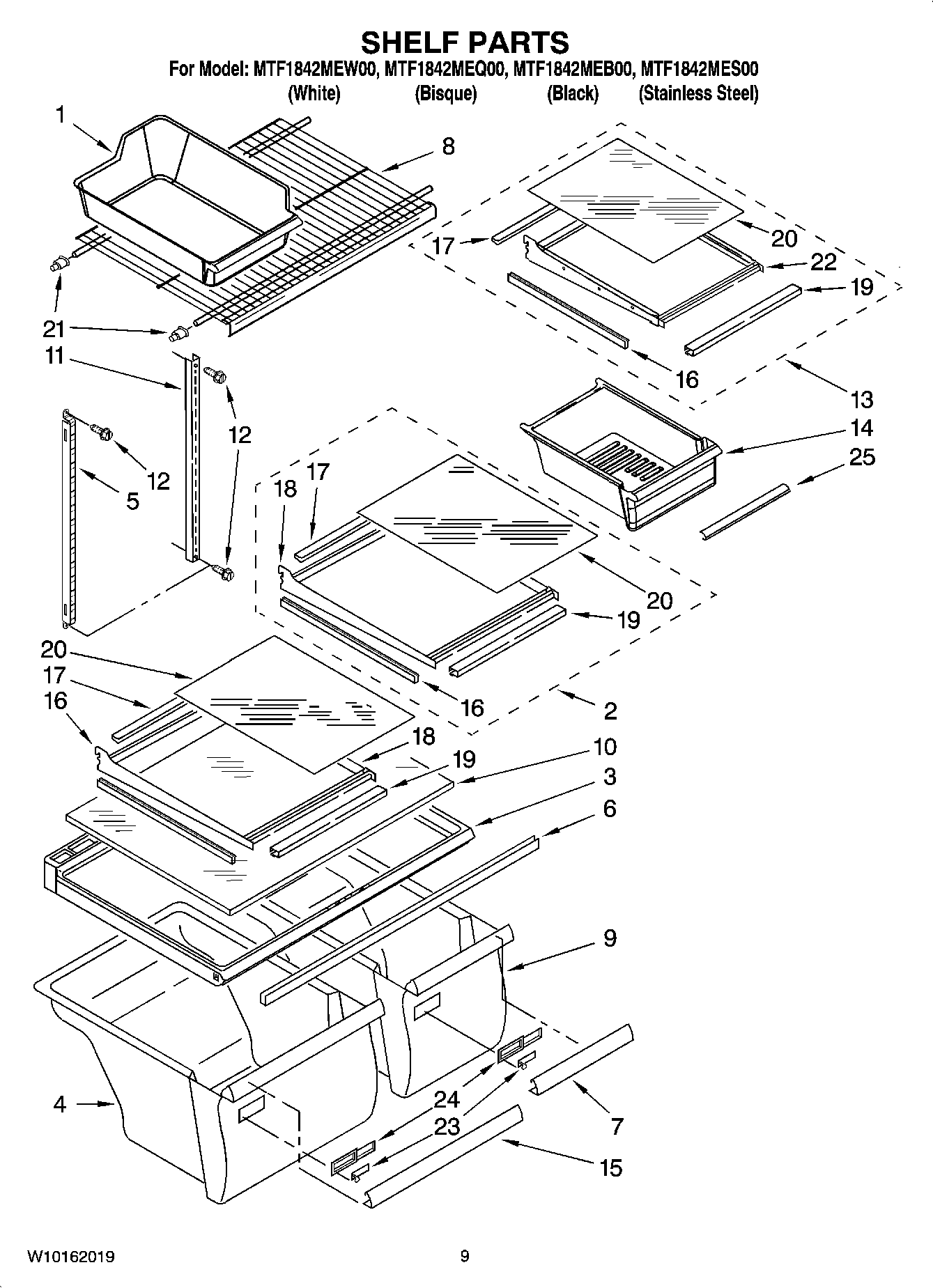

MTF1842MEB00 05 – SHELF PARTS

MTF1842MEB00 05 – SHELF PARTS

Written by

in

MTF1842MEB00 05 – SHELF PARTS

Products

PositionProduct
1Bucket, Ice
2Shelf Assembly
3MAY 2314548
4Pan, Crisper (13-Inch) (Includes 17,20)
5MAY 2300520
6Support, Crisper
7MAY 2320366
8MAY 2176275
9Pan, Crisper (10-Inch) (Includes 17, 20)
10MAY 2221693
11MAY 2210522
12MAY 489478
13Shelf Assembly (W/Pan Slide)
14MAY 2218127
15MAY 2320357
16Trim Shelf, Side
17Trim-Shelf, Rear
18Shelf-Cantilever
19Trim-Shelf, Front
20Glass, Half Shelf
21MAY 2163762
22Shelf Assy
23Slide, Humidity Control
24MAY 2212446
25MAY 2176356
