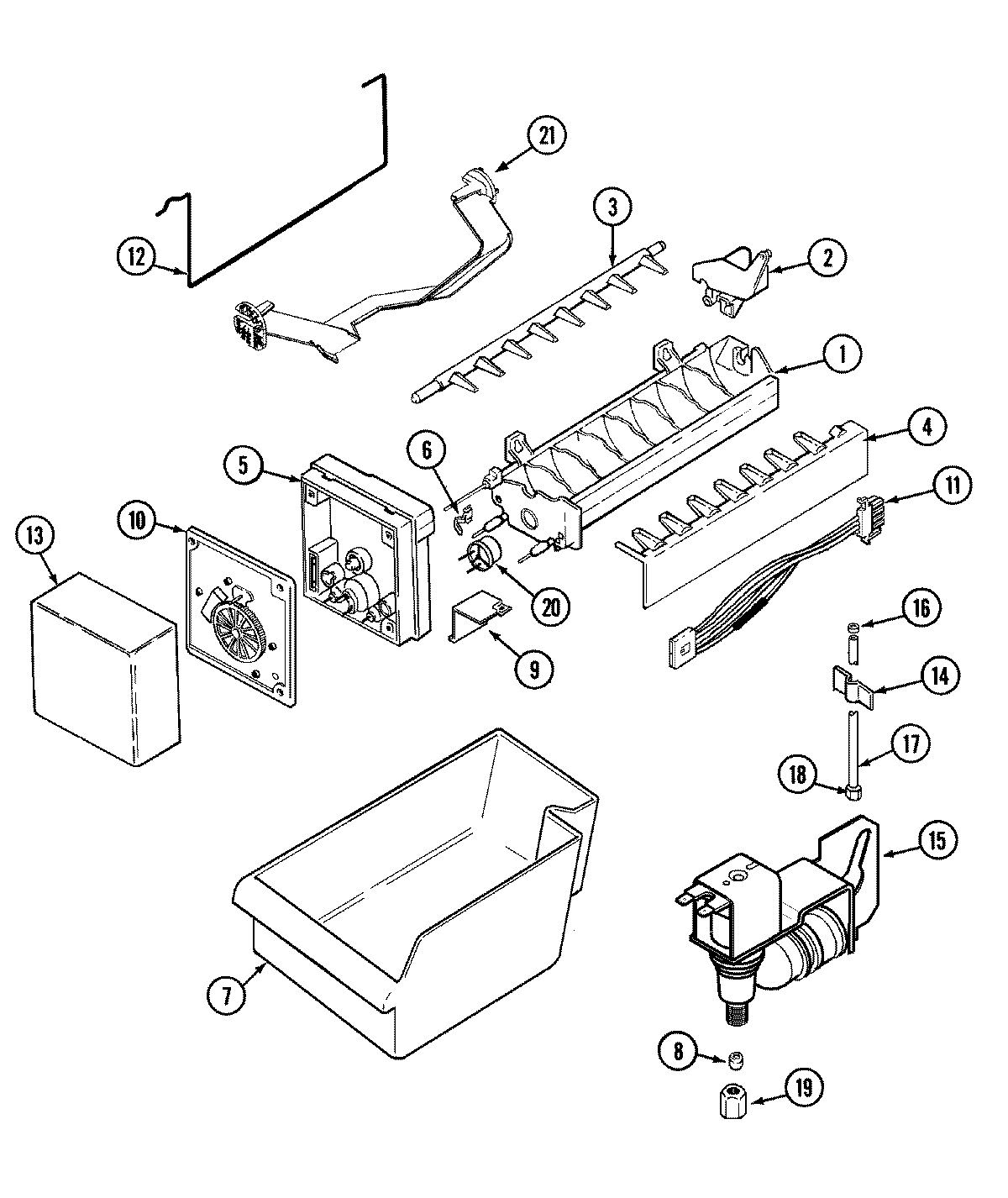

MTF1943ARW 08 – ICE MAKER

Products

PositionProduct
1D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1WP99003172 Whirlpool Silicone L
2WP628356 Whirlpool Refrigerator Fill Cup
3WP627843 Whirlpool Refrigerator Ejector Arm
4WP2182124 Whirlpool Refrigerator Stripper Arm
5WP2195914 Whirlpool Refrigerator Ice Maker Housing
5SCREW
6WP2315522 Whirlpool Refrigerator Clip
7MAY 61001886
8WP487627 Whirlpool Refrigerator Sleeve
9BRACKET, MODULE & HEATER
9MAY 95108-1
10MAY 95109-1
10MAY 400031-1
11MAY 61001882
12MAY 61005173
12MAY 61005175
12MAY 68112-1
13MAY 61001239
14MAY 61003562
14SCREW
14W10833902 Whirlpool Refrigerator Clamp
15MAY 61002819
15WP61005273 Whirlpool Refrigerator Inlet Valve
16WPM0114003 Whirlpool Microwave Speed Clip Clamp
17MAY 67579-7
18WP627018 Whirlpool Refrigerator Nut
19WP245183 Whirlpool Nut
20WP627985 Whirlpool Icemaker Cycling Thermostat
20MAY 95093-1
21MAY 61005174
