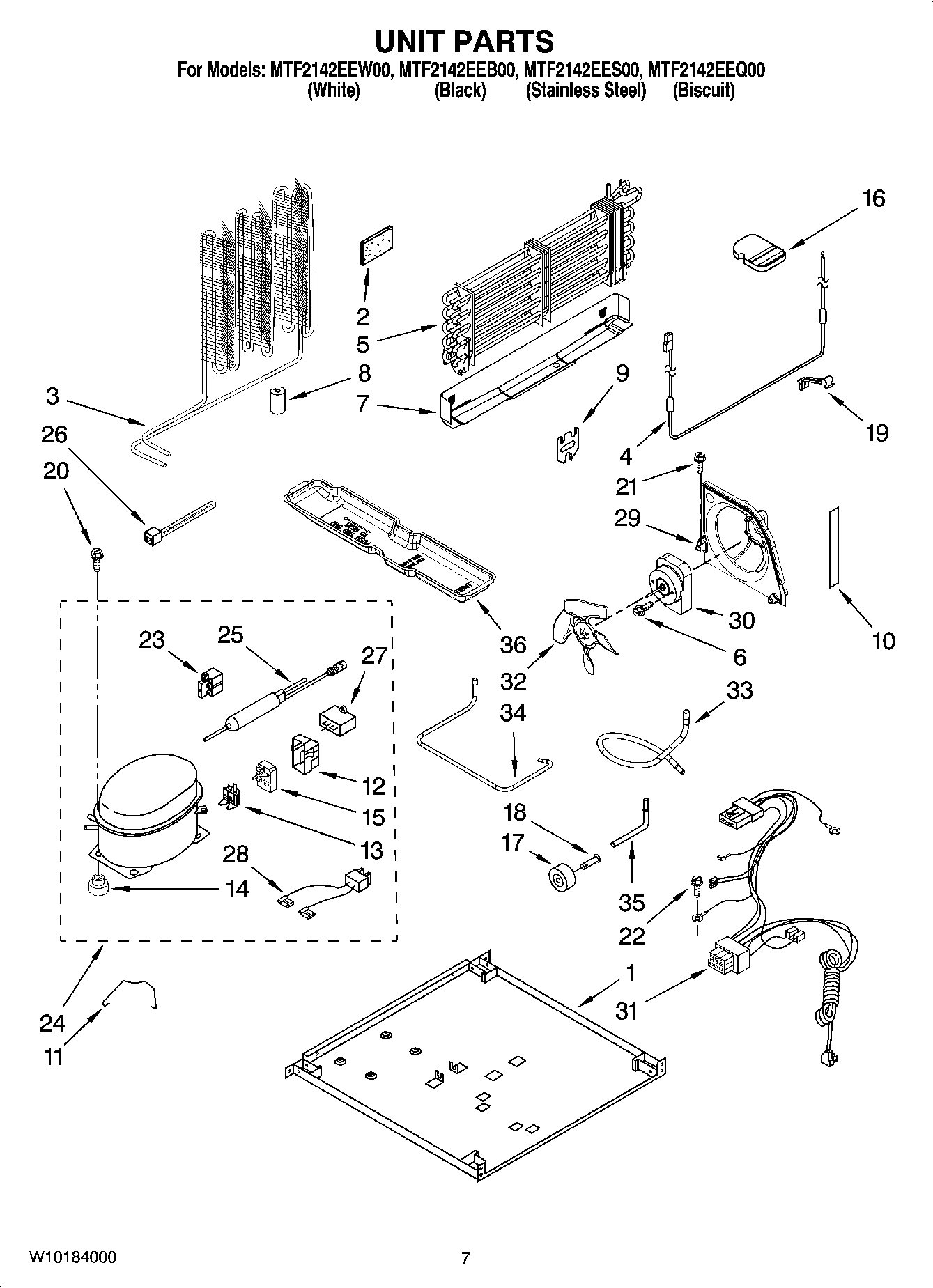

MTF2142EEB00 04 – UNIT PARTS

MTF2142EEB00 04 – UNIT PARTS

Written by

in

MTF2142EEB00 04 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
1	MAY 2320187
2	SEALER, INSULATION
3	MAY 2214960
4	MAY 2314157
5	MAY 2254249
6	MAY 8533859
7	MAY 2254295
8	GROMMET, CONDENSER
9	MAY 2176301
10	MAY 2300638
11	MAY 2223314
12	COVER ((SERVICE ONLY))
13	OVERLOAD ((SERVICE ONLY))
14	Grommet (Production)
14	MAY 4387558
15	MAY W10136414
16	MAY 2201185
17	Roller
18	MAY 2221797
19	MAY 2182338
20	MAY 489373
21	MAY 3400518
22	MAY 488500
23	Start Relay (Service Only)
24	Compressor (Includes Items 12,13,14,27,29, 31 & 32)
25	Drier
26	MAY 2155774
27	Capacitor (Service)
27	Capacitator (Production)
28	Wire Assembly (Service Only)
29	MAY 2315541
30	MOTOR, CONDENSOR
31	Wire Assembly Unit
32	MAY 2225834
33	MAY W10171793
34	MAY 2214924
35	MAY 2154109
36	Evaporator Tray
