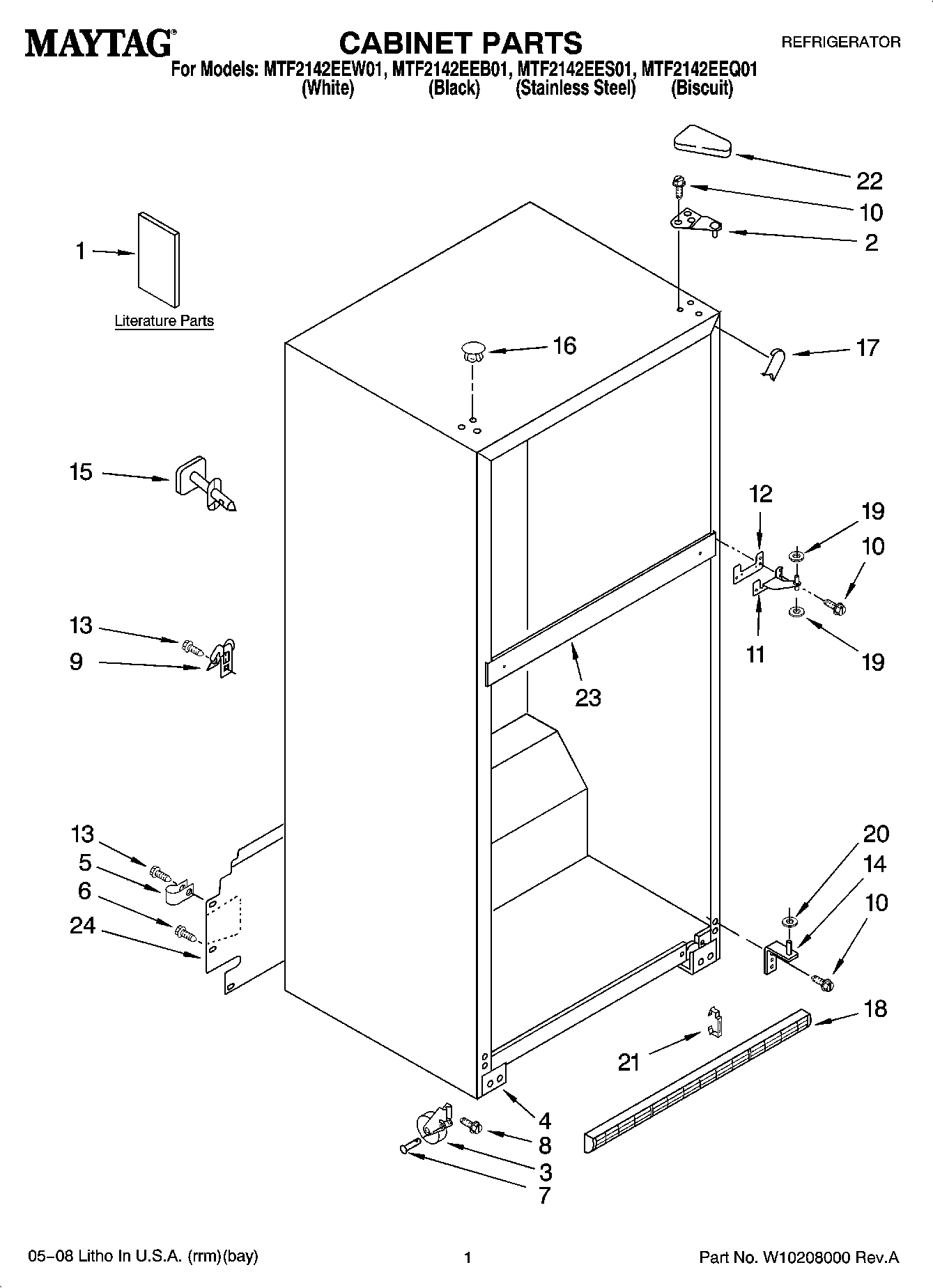

MTF2142EEB01 01 – CABINET PARTS

Products

Position	Product
1	MAY W10206571
1	MAY W10131421
1	MAY W10131413
1	MAY W10142143
1	ICEMAKER SERVICE SHEET
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
2	MAY 2189410
3	MAY 2166108
5	CLAMP, TUBE
6	MAY 489442
7	MAY 2179826
8	MAY 3400504
9	MAY 549193
10	MAY 489497
11	MAY 2254618
12	MAY 2183852
13	MAY 8281265
14	MAY 2254473
16	HOLE PLUG (BISCUIT)
16	MAY 2183998
16	HOLE PLUG
17	MAY 2201017
17	Corner Filler (2) (White)
17	Corner Filler (2) (Biscuit)
18	Grille (Includes Illus. 20) (White)
18	Grille (Includes Illus. 20) (Black)
18	GRILLE ASSEMBLY (INCLUDES ITEM 21) (BISCUIT/BISQUE)
19	WASHER, PLASTIC
20	Washer (1/16)
21	MAY 2189356
22	COVER, HINGE (BISCUIT/BISQUE)
22	Cover, Hinge (White)
22	MAY 2213363
24	MAY 2254576
