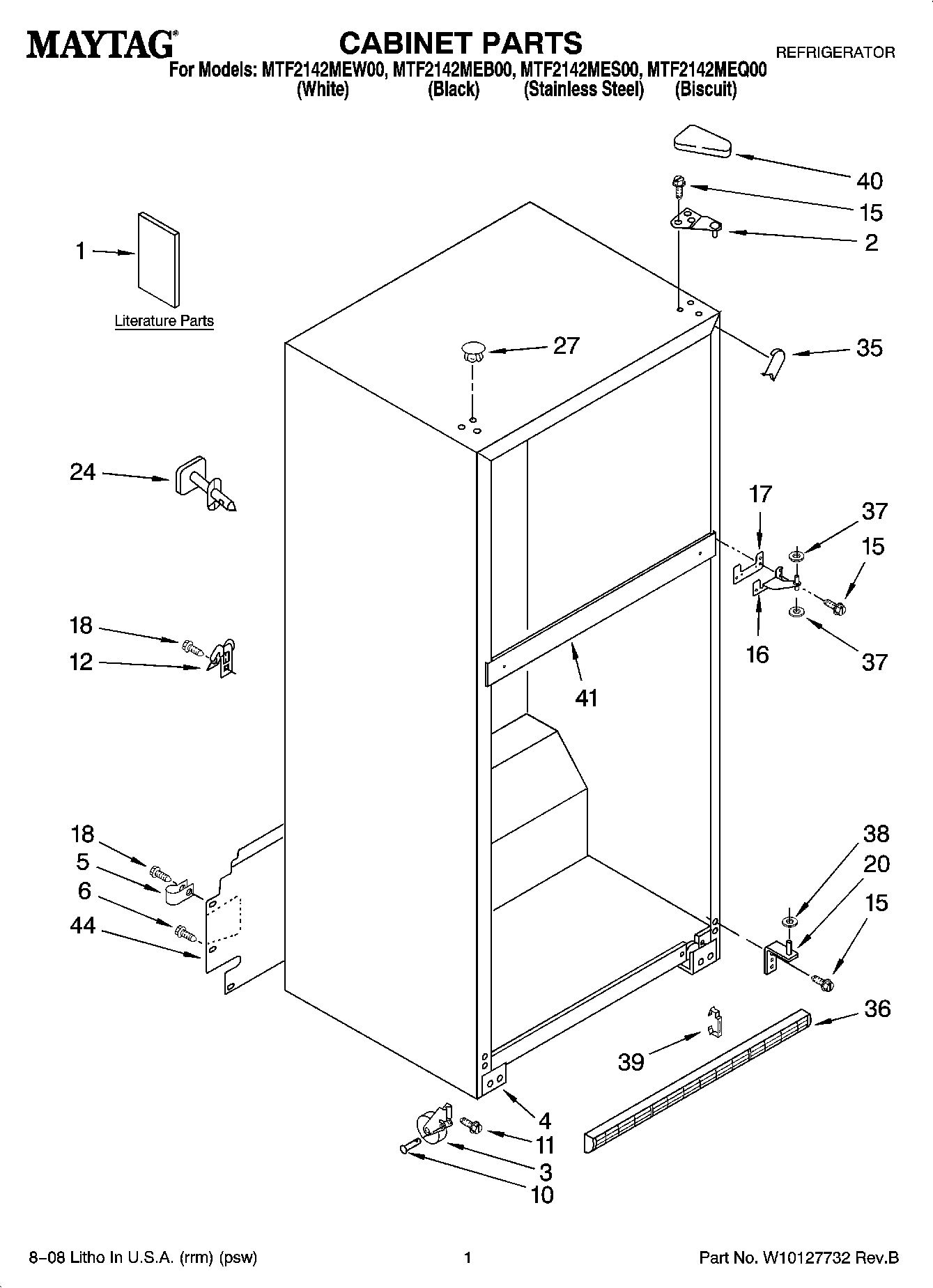

MTF2142MES00 01 – CABINET PARTS

Products

Position	Product
1	MAY 2320392
1	MAY 2320376
1	MAY 2314274
1	ICEMAKER SERVICE SHEET
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
2	MAY 2189410
3	MAY 2166108
5	CLAMP, TUBE
6	MAY 489442
10	MAY 2179826
11	MAY 3400504
12	MAY 549193
15	MAY 489497
16	MAY 2254618
17	MAY 2183854
18	MAY 8281265
20	MAY 2254473
27	HOLE PLUG (BISCUIT)
27	HOLE PLUG
27	MAY 2183998
35	MAY 2201017
35	Corner Filler (2) (White)
35	Corner Filler (2) (Biscuit)
36	GRILLE ASSEMBLY (INCLUDES ITEM 21) (BISCUIT/BISQUE)
36	Grille (Includes Illus. 20) (White)
36	Grille (Includes Illus. 20) (Black)
37	WASHER, PLASTIC
38	Washer (1/16)
39	MAY 2189356
40	MAY 2213363
40	COVER, HINGE (BISCUIT/BISQUE)
40	Cover, Hinge (White)
44	MAY 2254576
