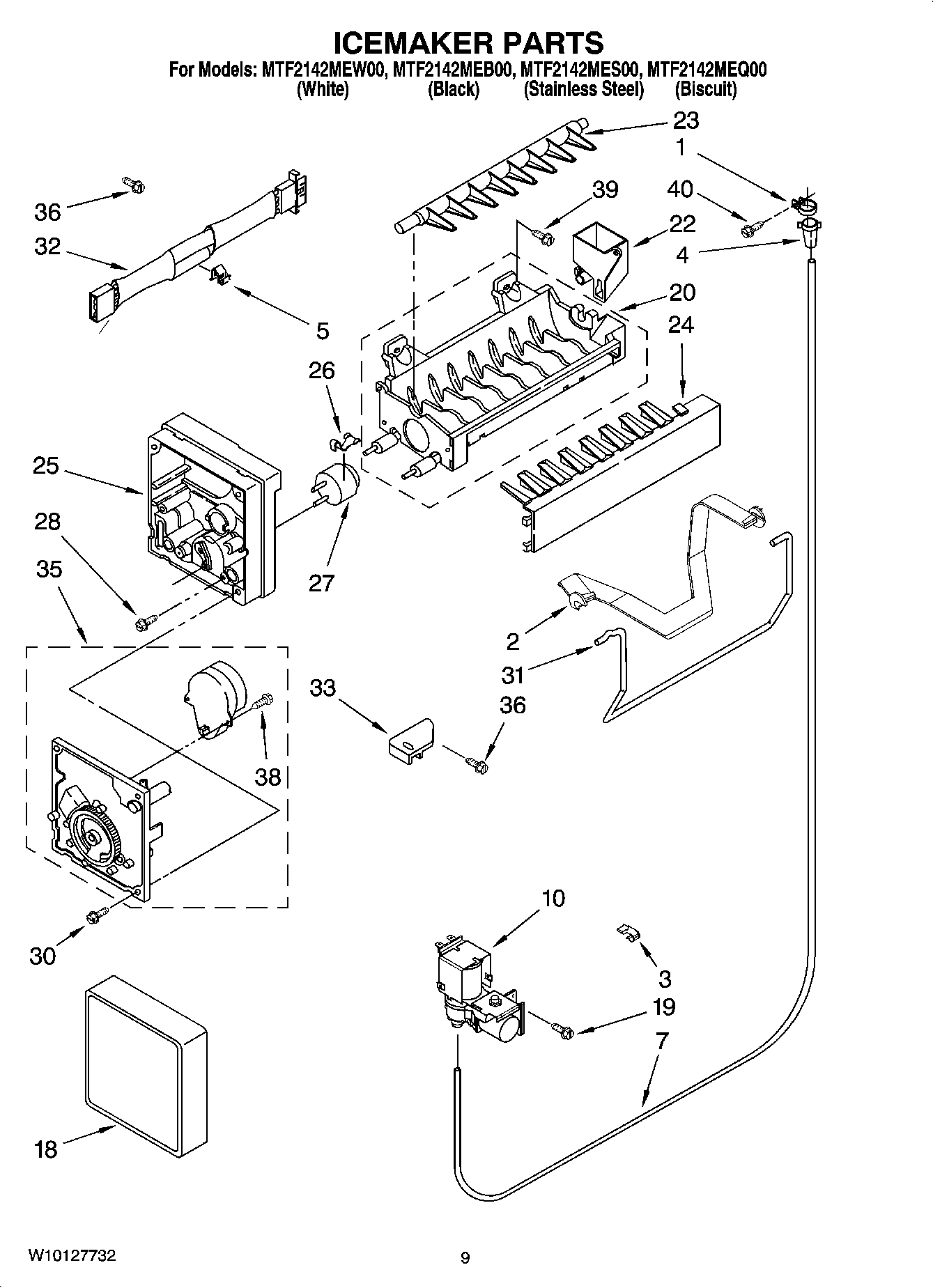

MTF2142MEW00 05 – ICEMAKER PARTS

Products

Position	Product
1	MAY 488878
2	MAY 78562001
3	MAY 2210495
4	MAY 2181939
5	Clip
7	MAY 2181943
10	Valve Solenoid
18	MAY 79191001
19	Screw (3)
20	ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638)
22	Cup, Fill
23	MAY 627843
24	MAY 2182124
25	MAY 2194712
26	MAY 2315522
27	Thermostat (Also Order 542369 Cement Alumilastic)
28	MAY 8533917
30	MAY 489276
31	MAY W10138107
32	MAY 2187464
33	MAY 628320
35	Module Assembly (Includes Item 24)
36	MAY 489478
38	MAY 489136
39	Screw
40	MAY 488886
100	Icemaker,Complete Assembly
