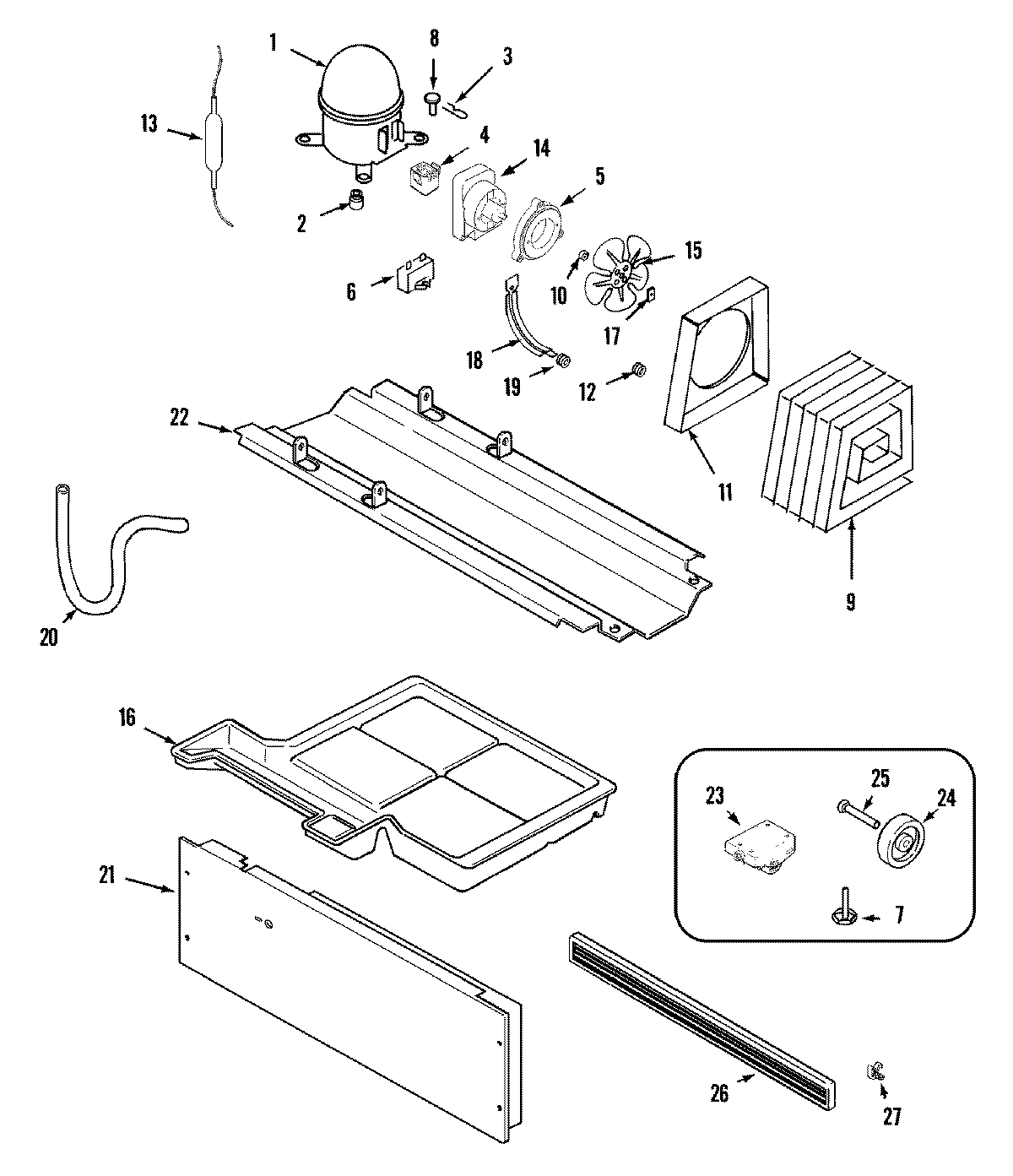

MTF2156GEB 01 – COMPRESSOR (MTF2156GEB/Q/W REV 15)

MTF2156GEB 01 – COMPRESSOR (MTF2156GEB/Q/W REV 15)

Written by

in

MTF2156GEB 01 – COMPRESSOR (MTF2156GEB/Q/W REV 15)

Products

PositionProduct
1W10160407 Whirlpool Refrigerator Compressor
1MAY 61005322
2GROMMET (SERVICE)
3MAY 61005561
412002794 Whirlpool Refrigerator Overload Relay Kit
4MAY 61006187
5MAY 61005326
5MAY 61005325
6WP489478 Whirlpool Refrigerator Screw
6WP65889-4 Whirlpool Refrigerator Capacitor
7MAY 61005612
8MAY 52656-2
9MAY 61005427
9MAY 61004378
10MAY 61001686
11MAY 61001941
12MAY 61002033
13WPW10143759 Whirlpool Dryer Filter
14WP90767 Whirlpool Screw
14MAY 61005323
15MAY 60683-1
16MAY 61004095
17WP486692 Whirlpool Refrigerator Nut
18MAY 69181-1
19GROMMET, BRACKET
20MAY 61002214
21MAY 61005388
21MAY 61005751
21MAY 65275-1
22MAY 61005268
22WP67006715 Whirlpool Refrigerator Screw
23MAY 65275-50
23MAY 61005232
24WP61003826 Whirlpool Wheel
25WP61002104 Whirlpool Refrigerator Pin Wheel
26MAY 61002576
27MAY 61001975
28MAY 12001492
29MAY 16010376
30MAY 16008248
