MTF2193ARS 08 – ICE MAKER

MTF2193ARS 08 – ICE MAKER

Written by

in

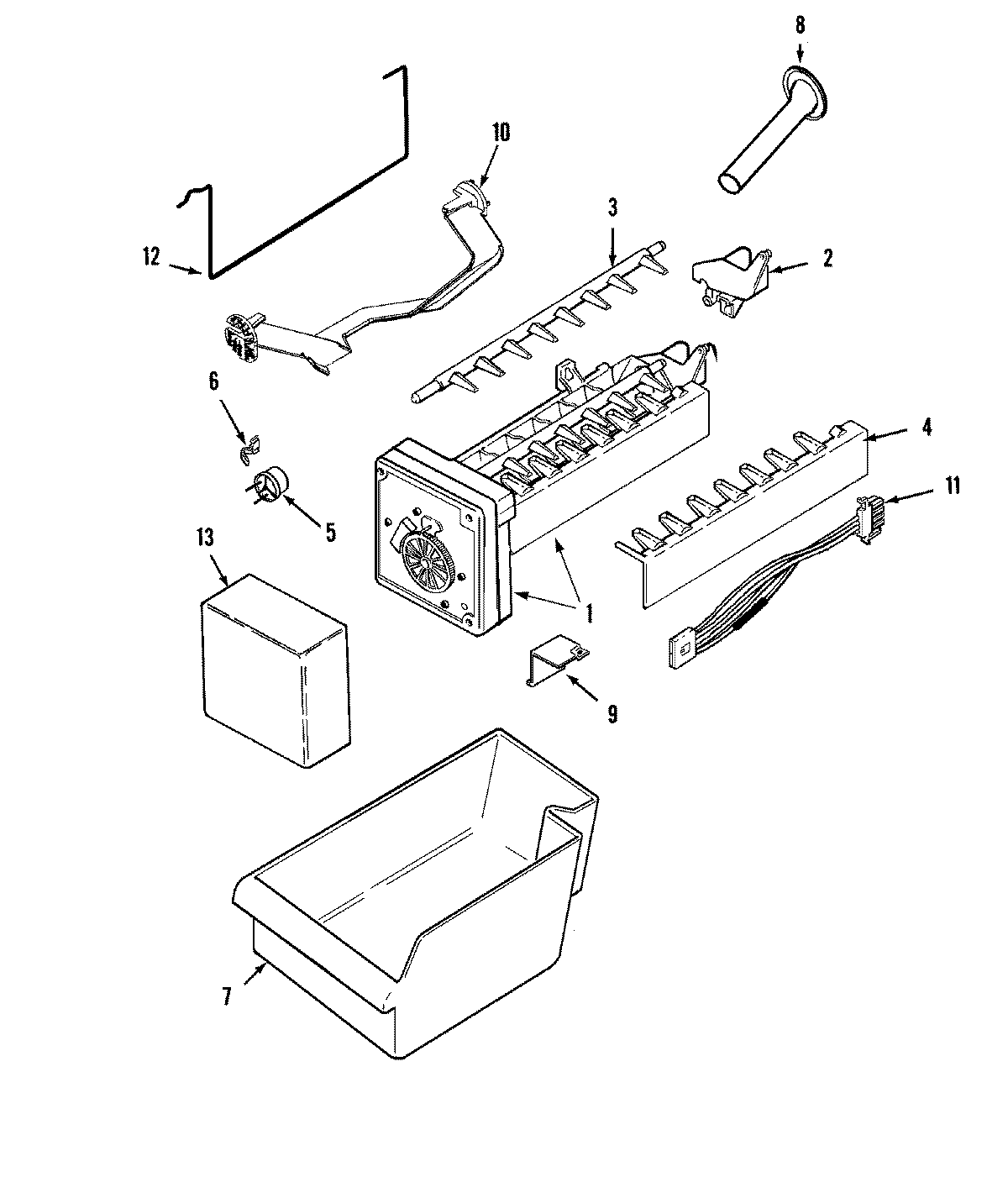

MTF2193ARS 08 – ICE MAKER

Products

PositionProduct
1MAY 63001488
1MAY 63001487
1MAY 63001486
1WP99003172 Whirlpool Silicone L
1D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2WP628356 Whirlpool Refrigerator Fill Cup
3WP627843 Whirlpool Refrigerator Ejector Arm
4WP2182124 Whirlpool Refrigerator Stripper Arm
5WP627985 Whirlpool Icemaker Cycling Thermostat
5MAY 95093-1
6WP2315522 Whirlpool Refrigerator Clip
7MAY 61001886
8MAY 61005940
9MAY 95108-1
9BRACKET, MODULE & HEATER
10MAY 61005174
11MAY 61001882
12MAY 61005173
12MAY 61005175
13MAY 61005374
