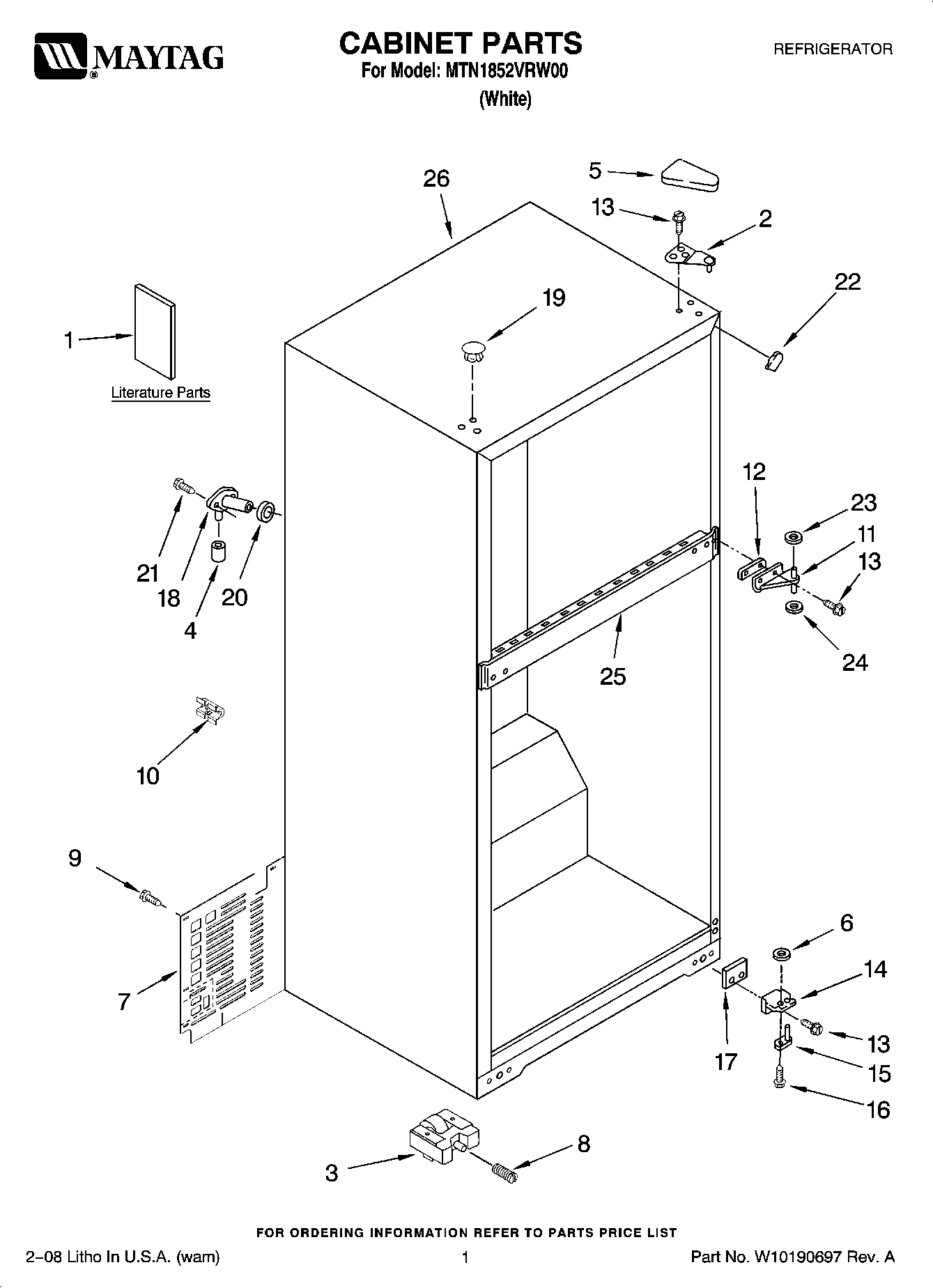

MTN1852VRW00 01 – CABINET PARTS

MTN1852VRW00 01 – CABINET PARTS

Written by

in

MTN1852VRW00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10182817
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
1	MAY 2326159
1	MAY 2265591
2	MAY 2261963
3	Roller-Front
4	CAP BUSHING
5	Cover, Hinge (White)
6	Washer
7	MAY 2264132
8	SCREW
9	MAY 489442
10	SPACER, BACK CB
11	MAY 2166086
12	SHIM, HINGE CENTER (WHITE)
13	MAY 489497
14	MAY 2221926
15	Hinge-Pin, Bottom
16	MAY 3428970
17	MAY 2201567
18	MAY 2174760
19	HOLE PLUG
20	Seal
21	MAY 2262176
22	Corner Filler
23	WASHER, PLASTIC
24	Washer (1/16)
