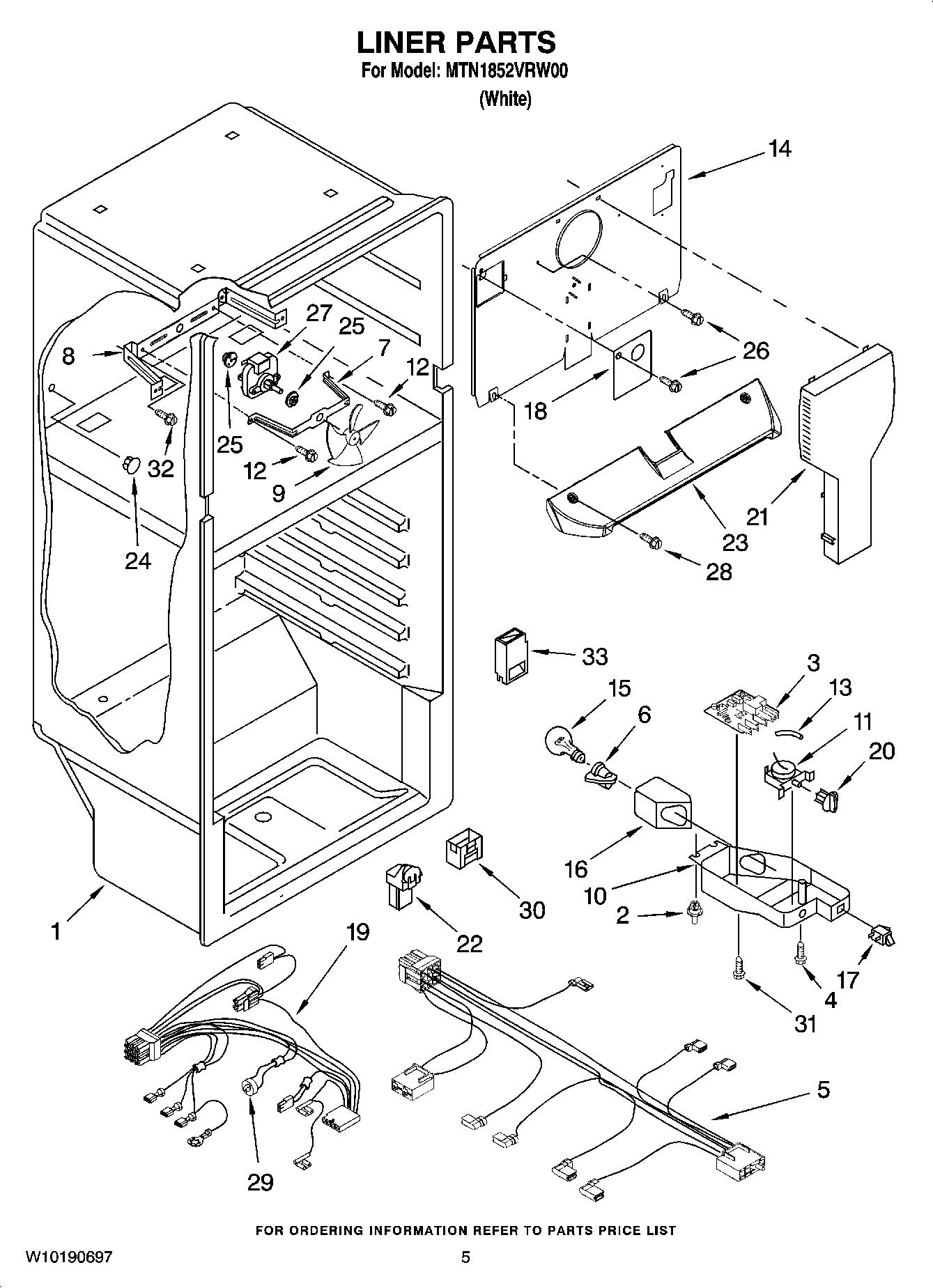

MTN1852VRW00 03 – LINER PARTS

Products

Position	Product
2	Rivet
3	TIMER, DEFROST
4	MAY 489174
5	WIRE ASSY. CONTROL BOX
6	Socket, Light
7	MAY 2197404
8	MAY 2197405
9	Blade, Fan (Evaporator)
10	MAY 2215210
11	MAY 2325701
12	Screw 8-32 x 5/16
13	MAY 1118680
14	MAY 2264669
15	BULB, LIGHT
16	MAY 9791702
17	MAY 1118894
18	MAY 2217784
19	Wiring-Freezer (Includes Item 33)
20	MAY 2202885
21	MAY 9790408
22	Hood And Foil Assembly
23	MAY 2261978
24	MAY 941839
25	MAY 2264462
26	MAY 489478
27	Evaporator, Fan Motor
28	MAY 2262178
29	MAY 2266066
30	MAY 2183061
31	Screw
32	MAY 489442
33	MAY 2221992
