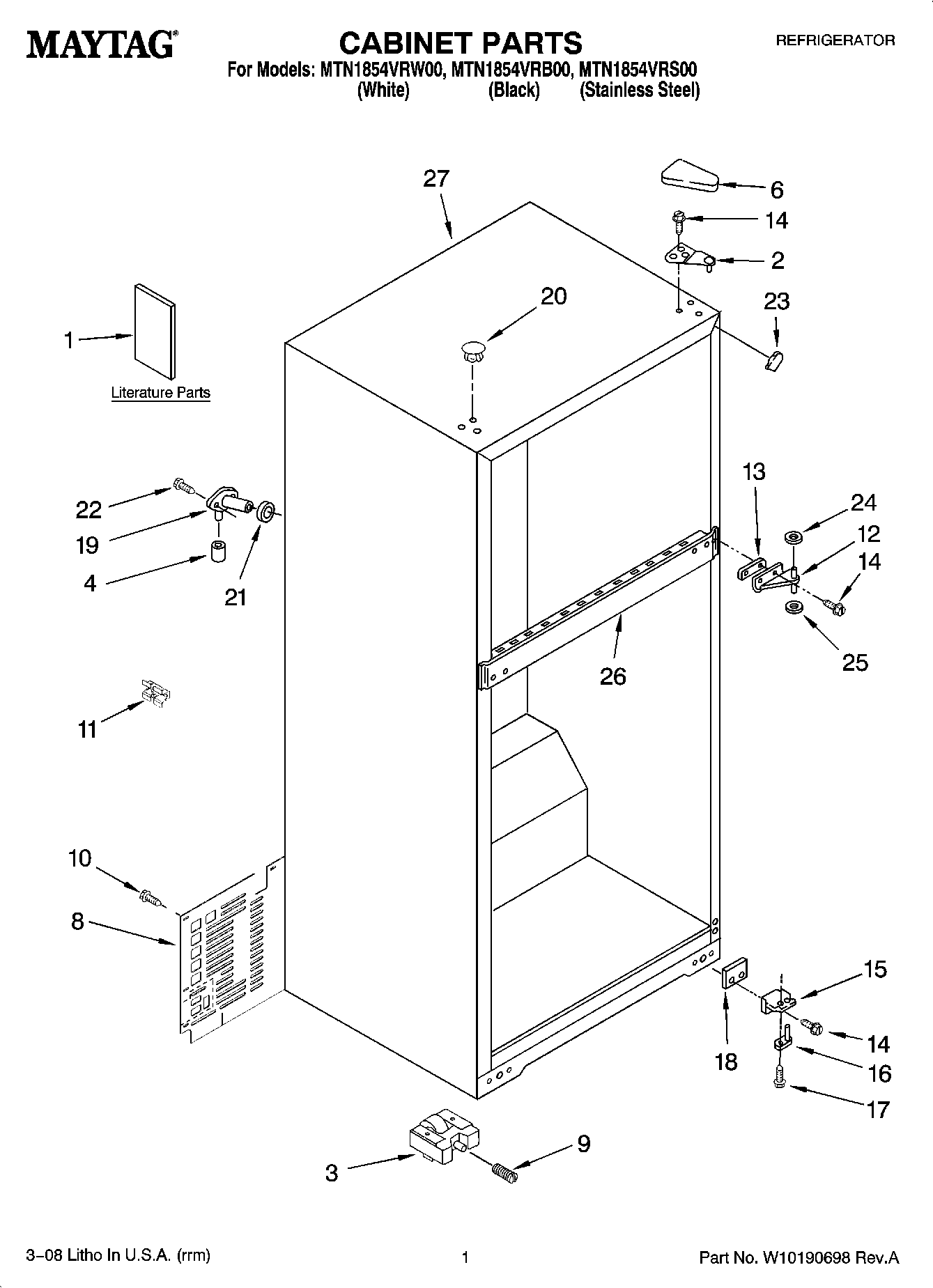

MTN1854VRB00 01 – CABINET PARTS

MTN1854VRB00 01 – CABINET PARTS

Written by

in

MTN1854VRB00 01 – CABINET PARTS

Products

PositionProduct
1MAY W10182817
1DO-IT-YOURSELF MANUAL REF./ FRZ.
1MAY 2265591
1MAY 2326159
2MAY 2261963
3ROLLER, FRONT
4CAP BUSHING
6MAY 2213363
6Cover, Hinge (White)
8MAY 2264132
9SCREW
10MAY 489442
11SPACER, BACK CB
12MAY 2166086
13SHIM, HINGE CENTER (WHITE)
13SHIM, CENTER HINGE (BLACK)
14MAY 489497
15MAY 2221926
16Hinge-Pin, Bottom
17MAY 3428970
18MAY 2201567
19MAY 2174760
20HOLE PLUG
20MAY 2183998
21Seal
22MAY 2262176
23Corner Filler
23Corner Filler (Black)
24WASHER, PLASTIC
25Washer (1/16)
