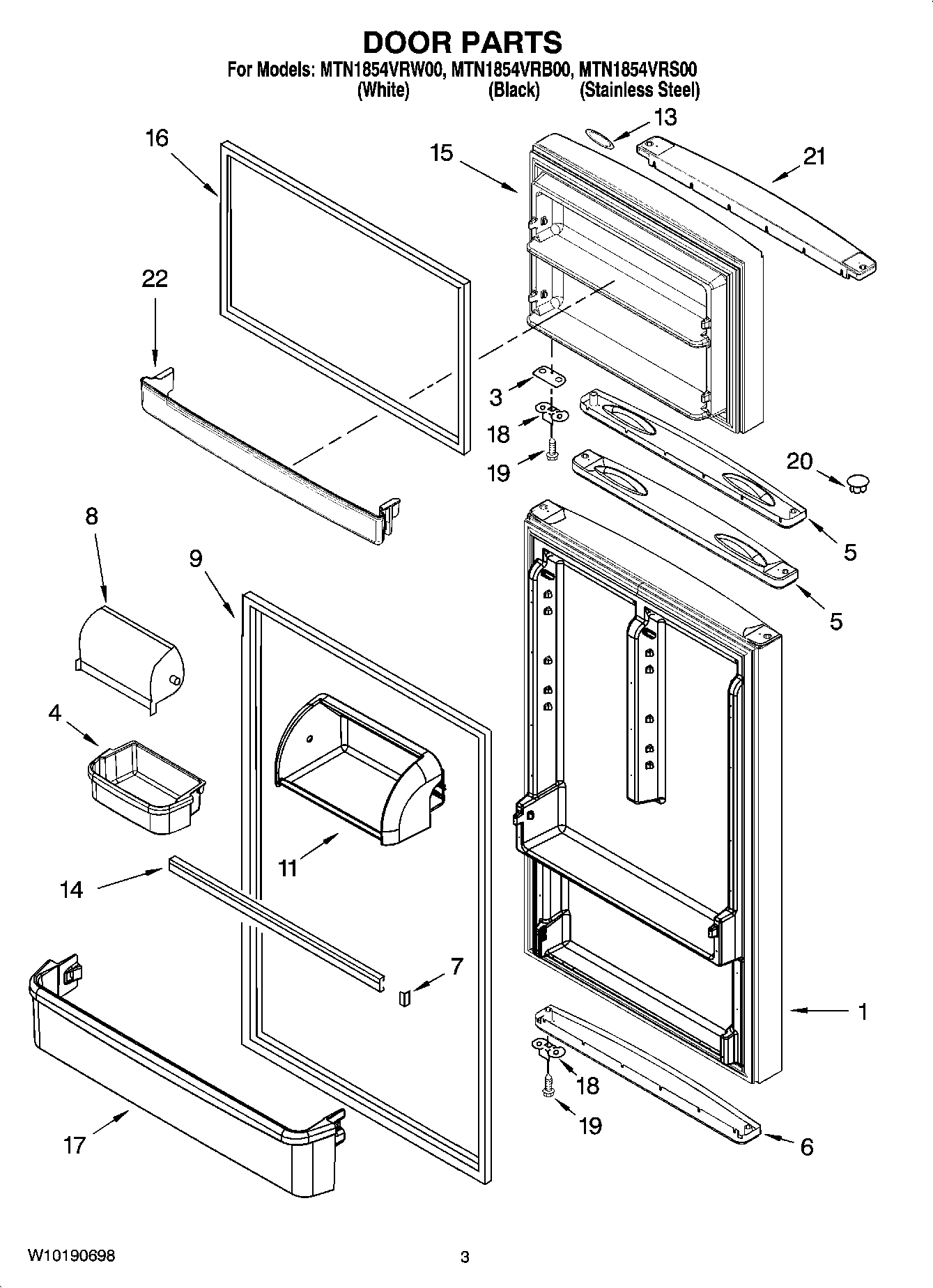

MTN1854VRB00 02 – DOOR PARTS

MTN1854VRB00 02 – DOOR PARTS

Written by

in

MTN1854VRB00 02 – DOOR PARTS

Products

PositionProduct
1MAY 2264716S
1MAY 2264716W
1MAY 2264716B
3Shim, Door Stop (Black)
3Shim, Door Stop (White)
4MAY 2266150
5Endcap, Handle (Black)
5Endcap, Handle (White)
6Endcap, Bottom (Black)
6Endcap, Bottom (White)
7Plug-Trim
8Door, Compartment
9GASKET, RC (BLACK)
9MAY 2264727
11Utility Comprtmnt.
13MAY 2324038
14Trim, Door Shelf
15Freezer Door Panel (Includes Illus. 5,16 & 21) (Stainless Steel)
15FREEZER DOOR PANEL (INCLUDES ILLUS. 2,13 & 18) (BLACK)
15FREEZER DOOR PANEL (INCLUDES ILLUS. 2,13 & 18) (WHITE)
16GASKET, FC (BLACK)
16MAY 2264726
17MAY 2266146
18MAY 2189202
19MAY 8533904
20MAY 2212648
20Hole Plug (Black)
21Endcap, Top (White)
21Endcap, Top (Black)
22MAY 2266148
